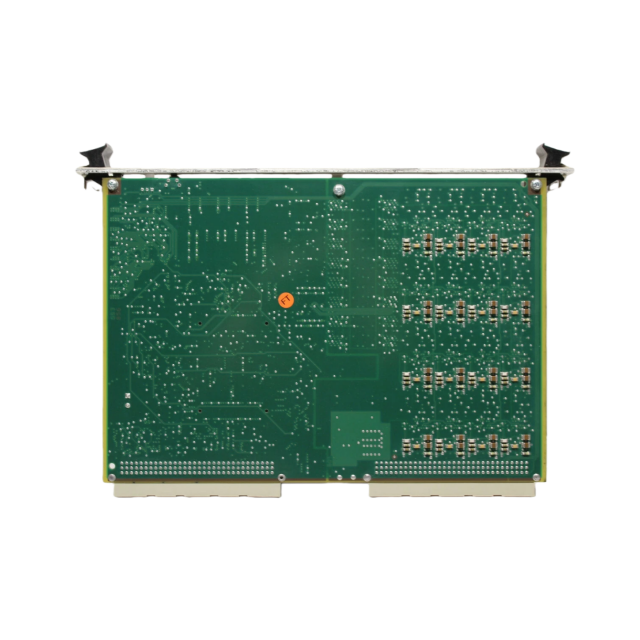

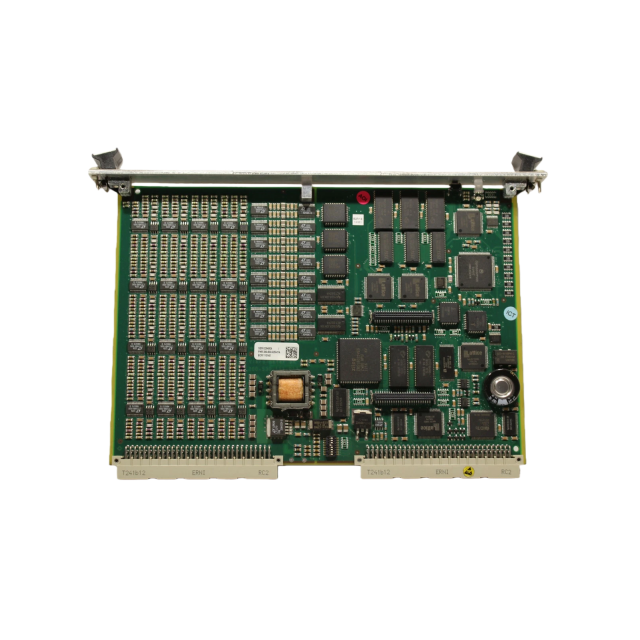

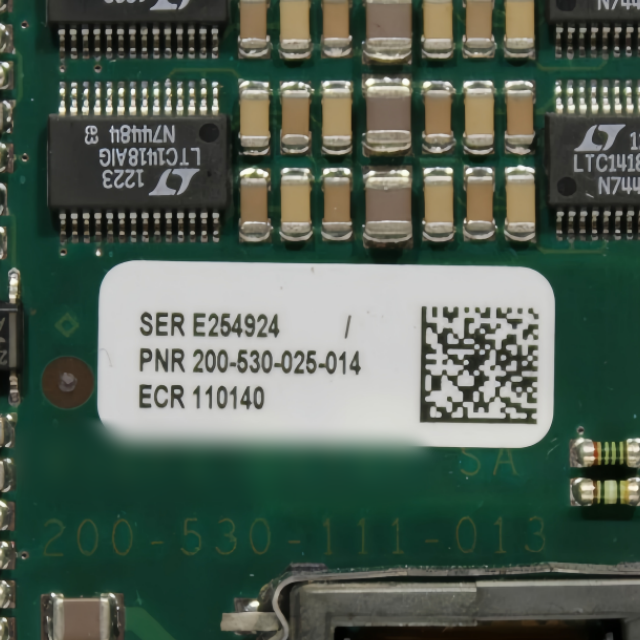

CMC16 200-530-025-014 Condition Monitoring Card

1. Product Overview:Proactive Machinery Condition Monitoring

The Meggitt VM600 CMC16 Condition Monitoring Card (PNR: 200-530-025-014) is a high-performance multi-channel card engineered for real-time machinery health monitoring in industrial environments. As a core component of Meggitt’s VM600 system ecosystem—trusted in power generation, oil & gas, and heavy manufacturing—it delivers precise data on machinery vibrations, temperatures, and operational parameters to enable predictive maintenance and prevent unplanned downtime.

Designed to integrate with VM600 racks (ABE04x/ABE056), this card pairs with dedicated input/output (I/O) modules (e.g., IOC4T) to collect, process, and transmit critical condition data. It supports multi-sensor connectivity, advanced signal analysis, and seamless integration with VM600 software, making it ideal for monitoring complex machinery like turbines, compressors, and motors.

2. Key Features & Benefits: Industrial-Grade Precision & Flexibility

2.1 Multi-Channel Monitoring Capacity

• 16 Dynamic Signal Channels: Supports simultaneous acquisition of vibration, acceleration, or velocity signals from industrial sensors (e.g., accelerometers, proximity probes)—covers multiple measurement points on a single machine.

• Broad Signal Compatibility: Accepts raw sensor signals (e.g., 0–5 V analog, 4–20 mA current) and processes them into actionable metrics (e.g., peak-to-peak vibration, RMS velocity) for machinery health assessment.

• Integrated Temperature Sensing: Optional support for thermocouple/RTD inputs (via paired I/O modules) to monitor bearing, motor, or gearbox temperatures—correlates thermal data with vibration for comprehensive condition analysis.

2.2 Advanced Signal Processing & Reliability

• EMI/EMC Protection: All input channels feature electromagnetic interference (EMI) filtering, meeting EN 50081-2, EN 50082-2, and IEC 61000-6-2/4 standards—ensures stable data acquisition near high-voltage equipment or frequency converters.

• Real-Time Data Analysis: On-board signal processing (e.g., FFT analysis, trend tracking) to identify early signs of machinery degradation (e.g., imbalance, misalignment, bearing wear) before faults occur.

• Redundant Data Transmission: Communicates with VM600 rack controllers (e.g., CPUx) via VME bus or system-specific buses (Raw/OC buses) for reliable data transfer—critical for safety-critical monitoring setups.

2.3 Seamless Integration & Low Maintenance

• VM600 Rack Compatibility: Installs in front slots of 19-inch 6U VM600 racks (ABE04x/ABE056), paired with rear I/O modules (e.g., IOC4T) for sensor connectivity—aligns with VM600’s modular front-processing/rear-I/O layout.

• Software-Configurable: Customizable via Meggitt’s VM600 MPSx or VibroSight® software (RS-232/Ethernet) to set signal thresholds, sampling rates, and data logging intervals—no on-board hardware adjustments needed.

• Hot-Swappable Design: Enables live insertion/removal without system shutdown, reducing maintenance downtime for critical monitoring systems.

3. Technical Specifications: Engineered for Industrial Reliability

3.1 Signal & Processing Specifications

3.2 Power & Environmental Tolerance

3.3 Physical & Connector Details

• Dimensions: 6U height (262 mm / 10.3 in) × 20 mm width (0.8 in) × 120 mm depth (4.7 in) – single-width slot for VM600 racks.

• Weight: ~0.3 kg (0.66 lb) (unpackaged).

• Communications: VME bus (for CPUx controller integration); backplane connections to paired I/O modules (e.g., IOC4T) for sensor wiring.

4. Certifications & Compliance: Global Safety & Quality Standards

The CMC16 card meets strict international regulations to ensure safe, compliant operation:

• Regional Marks: CE (EU), EAC (Eurasian Customs Union), Rosstandart Pattern Approval (CH.C.28.004.A N° 60224).

• EMC/EMI: EN 50081-2, EN 50082-2, IEC 61000-6-2/4, TR CU 020/2011.

• Electrical Safety: IEC/EN 61010-1, TR CU 004/2011.

• Environmental: RoHS compliant (restricts hazardous substances); conformal coating option available for chemical/dust/moisture resistance (request at order).

• Functional Safety: Compatible with SIL 1 systems (per IEC 61508) when used with certified VM600 components.

5. Installation & Configuration: Seamless Setup with VM600 Systems

5.1 Installation Requirements

• Rack Compatibility: Install in front slots of VM600 racks (ABE04x/ABE056); pair with rear I/O modules (e.g., IOC4T) for sensor connectivity—ensure slot alignment via VM600’s electronic keying system.

• Sensor Wiring: Connect sensors to paired I/O module terminals (e.g., IOC4T J1/J2); route cables away from high-voltage lines to minimize EMI interference.

• Safety Compliance: Cover unpopulated rack slots with blank panels; de-energize rack power if not using hot-swap (follow VM600 safety guidelines).

5.2 Configuration

• Software Setup: Use Meggitt’s VM600 MPSx or VibroSight® software to:

1. Map channels to specific sensors/measurement points.

2. Set sampling rates, FFT parameters, and data logging intervals.

3. Configure alarm thresholds and trigger actions (e.g., relay activation, DCS alerts).

• Calibration: Factory-calibrated for accuracy; periodic verification via software (no on-site calibration needed).

6. Applications: Where Proactive Monitoring Prevents Downtime

The CMC16 card is critical for condition monitoring in:

• Power Generation: Turbines, generators, and pumps—monitors vibration to detect rotor imbalance or bearing degradation.

• Oil & Gas: Compressors, pipelines, and offshore drilling equipment—tracks thermal and vibration data to prevent catastrophic failures.

• Heavy Manufacturing: Motors, gearboxes, and production line machinery—enables predictive maintenance to reduce unplanned downtime.

• Aerospace & Defense: Ground support equipment (e.g., fuel pumps, hydraulic systems)—meets strict reliability standards for high-criticality applications.

7. Ordering Information: Customize for Your Needs

7.1 CMC16 Card Versions

7.2 Related VM600 Components

• Racks: ABE04x (standard 6U), ABE056 (slimline) – for card housing.

• I/O Modules: IOC4T, XIO16T – for sensor connectivity and signal routing.

• Relay Cards: RLC16, IRC4 – for alarm activation and control.

• Software: VM600 MPSx, VibroSight® – for configuration and data analysis.
