Configuring a Vibro-Meter CMC16 condition monitoring card (part number 200-530-025-014) in a VM600 rack requires a clear sequence of steps to ensure each measurement channel initializes correctly. This guide covers software setup, channel parameter definition, and first‑time commissioning for maintenance and control engineers.
CMC16 Overview

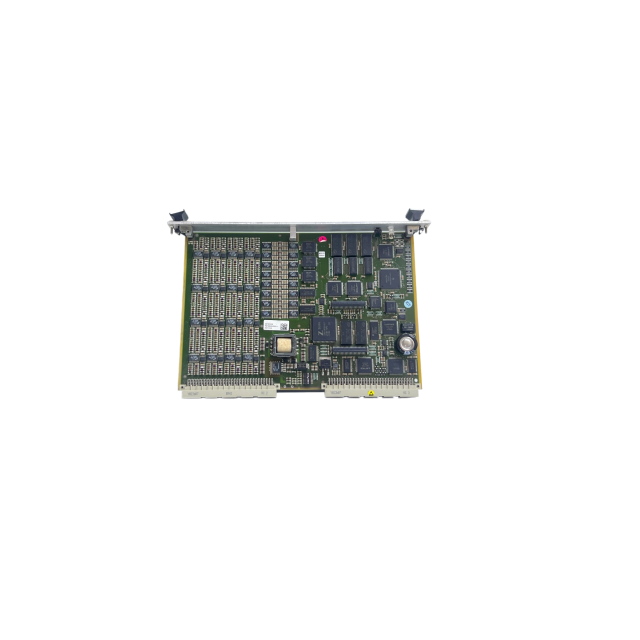

The CMC16 is a 16‑channel dynamic signal acquisition module used in VM600 machinery protection and condition monitoring systems. It accepts inputs from accelerometers, velocity sensors, and eddy‑current probes. Raw vibration signals are digitized, processed (FFT, envelope analysis), and transmitted to the system CPU or external DCS via Ethernet or backplane bus.
Software: Vibro‑Sys (version 3.1 or later) or MPS2 system configurator installed on a Windows engineering laptop
Hardware: CMC16 200-530-025-014 seated in the correct slot of a 204‑040‑100‑011 rack; rack backplane powered on
Network: Ethernet cable connected to the CMC16 service port or CPUM module; IP address reachable from the engineering station
Documentation: Sensor datasheets (sensitivity, bias voltage, measuring range) and the machine’s vibration alarm limits
Step 1 – Create a System Project
Open Vibro‑Sys. Select “New Project” and name it after the asset (e.g., “Turbine_Compressor”). Choose the rack model (204‑040‑100‑011). In the rack visual editor, drag a CMC16 module from the hardware library into the slot that matches the physical card position.
Step 2 – Establish Communication
Right‑click the CMC16 and set the Ethernet parameters:
– IP address (must match the physical card; default is often 10.0.0.xx, check a label on the module)
– Subnet mask (255.255.255.0)
– Gateway if the network is routed
Click “Test Connection”; the software should report module identity and firmware version. If connection fails, verify the physical link LED on the CMC16 and firewall settings on your laptop.
Step 3 – Channel Configuration
Open the CMC16’s configuration window. For each of the 16 channels you intend to use:
Sensor type: Choose ICP accelerometer, voltage‑mode accelerometer, velocity sensor, or proximity probe as required
Sensitivity: Enter the sensor’s sensitivity in mV/g or mV/μm
Bias / gap voltage: For eddy‑current probes, set the nominal gap voltage (e.g., ‑9 V) and alert thresholds
Measurement mode: Select “Vibration” (overall RMS), “FFT spectrum”, or “Envelope” depending on your monitoring strategy
Frequency range: Define the analysis band (e.g., 10‑1000 Hz for sleeve bearings, up to 10 kHz for rolling elements)
Sampling rate: Typically 2.56 × maximum frequency; the software will propose a default
Units: mm/s, g, μm, or user‑defined
Group channels into logical measurement points (e.g., “Turbine Non‑Drive End Horizontal”).
Step 4 – Alarm and Trigger Settings
For each measurement point, assign:
– Warning level (yellow)
– Danger level (red)
– Time delay to avoid false trips from short transients (e.g., 3 seconds)
– Hysteresis to prevent alarm chattering (e.g., 5% below the trip point)
If the CMC16 is used alongside an MPC4 protection card, confirm that the alarm thresholds are consistent between the monitoring and protection layers.
Step 5 – Data Output and Storage
Configure how processed data leaves the CMC16:
– Modbus TCP server – map single‑channel overall values to holding registers
– OPC UA – enable for integration with plant historians
– Internal logging – set circular buffer size (e.g., 30 days of 1‑minute trend data)
Step 6 – Write Configuration and Initialize
Click “Download to Device”. The software compiles the channel setup, alarm definitions, and communication settings.
The CMC16 reboots automatically. Observe the front‑panel LEDs: all configured channels should show steady green within 30 seconds. A flashing green indicates a configuration mismatch; solid red signals a hardware fault.
Use the “Online Data” view to verify raw ADC counts and derived engineering units. Inject a known signal (e.g., a shaker table or battery‑simulated 4‑20 mA) to confirm scaling.
Troubleshooting Common Issues
No data on a channel: Check the sensor wiring, ICP power jumper, and cable shield. In Vibro‑Sys, look at the raw counts – zero counts often mean an open circuit.
Communication loss after download: The IP address may have reverted; reconnect using the default IP, verify the network settings, and re‑download.
Configuration not stored permanently: The internal battery might be low; replace the backup cell and re‑download.
Channels show erratic readings: ground loops are frequent with long cable runs; verify single‑point grounding and sensor insulation.
Final Verification and Project Backup
Run the system for at least two hours under normal machine conditions. Check that trend values match portable vibration meter readings at the same measurement point. Save the final Vibro‑Sys project file and export an .xml backup to a secured network drive.
