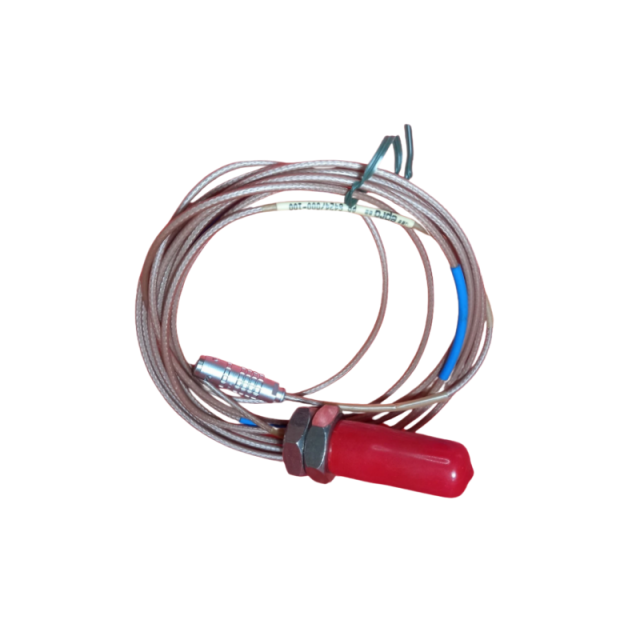

Epro PR6424/002-100 Proximity Probe Technical Guide and Replacement Strategies
The first time I saw an Epro PR6424/002-100 fail without warning, the turbine it was monitoring had already developed a shaft wobble that cost three days of unplanned downtime. That incident changed how I think about these sensors. The Epro PR6424/002-100 proximity probe measures displacement, vibration, and shaft position without physical contact, and when it works properly, you forget it exists. When it drifts or degrades, you remember quickly. This guide covers the technical specifications, replacement timing, sourcing strategies, and integration requirements that keep these probes performing reliably in demanding industrial environments.
How the Epro PR6424/002-100 Proximity Probe Actually Works
The Epro PR6424/002-100 operates on eddy current principles, which sounds straightforward until you consider what happens at the electromagnetic level. A high-frequency alternating current runs through a coil at the probe tip, generating an electromagnetic field that extends outward toward the target surface. When a conductive material enters this field, the field induces circular electrical currents in the target metal. These eddy currents generate their own opposing magnetic field, which pushes back against the probe’s primary field and changes the coil’s impedance.
The impedance change correlates directly to the gap distance between the probe tip and the target. Smaller gaps produce stronger eddy currents and greater impedance shifts. Larger gaps weaken the interaction. The Epro PR6424/002-100 converts these impedance variations into voltage signals that control systems can interpret as displacement measurements.
Turbines, compressors, and pumps rely on this measurement principle for shaft monitoring. The probe detects axial position shifts, radial displacement, and vibration patterns without touching the rotating shaft. This non-contact approach eliminates mechanical wear and allows continuous monitoring at rotational speeds that would destroy contact-based sensors.
The probe housing withstands temperatures from well below freezing to over 100°C, along with pressure variations and airborne contaminants common in industrial facilities. Real-time shaft position data feeds into machine protection systems that can trigger alarms or emergency shutdowns when measurements exceed safe thresholds. Understanding the Epro PR6424/002-100 function and the underlying proximity probe principle matters for troubleshooting, because many apparent probe failures actually stem from installation errors or target surface problems.
Epro PR6424/002-100 Specifications and Performance Boundaries
The Epro PR6424/002-100 proximity probe has specific technical parameters that determine where and how it can be applied. These numbers matter when matching the probe to machinery requirements or evaluating alternatives.
Specification
Typical Value / Range
Unit
Notes
Measuring Range
0 to 2.0
mm
Varies by probe tip diameter
Linearity
±1.0
% of Full Scale
Critical for accurate displacement readings
Frequency Response
0 to 10
kHz
Suitable for high-speed machinery monitoring
Operating Temp.
-35 to +120
°C
Ensures reliability in harsh environments
Output Signal
-2 to -18
VDC
Standard for industrial control systems
Sensitivity
8.0
V/mm
Indicates voltage change per unit displacement
The measuring range defines the operational envelope. Position the probe too close, and the signal saturates. Position it too far, and the electromagnetic interaction weakens below usable levels. The 2.0mm range accommodates typical shaft runout and thermal expansion in rotating machinery.
Linearity at ±1.0% of full scale means the voltage output tracks displacement proportionally across the measurement range. Non-linear response would distort vibration waveforms and produce misleading amplitude readings. The sensor frequency response reaching 10kHz captures high-speed vibration events, including blade pass frequencies on turbines and gear mesh frequencies on gearboxes.
The -2 to -18 VDC output signal integrates with standard industrial monitoring systems. The negative voltage convention is historical but remains standard in vibration monitoring equipment. Sensitivity of 8.0 V/mm means each millimeter of displacement produces an 8-volt change in output, providing good resolution for detecting small shaft movements.
These Epro PR6424/002-100 specifications should be verified against the manufacturer’s current datasheet, as production revisions occasionally adjust values.
Recognizing When the Epro PR6424/002-100 Needs Replacement
Proximity probes degrade gradually, and the Epro PR6424/002-100 is no exception. The challenge is catching degradation before it compromises measurement accuracy or causes a missed alarm condition. Waiting for complete failure creates unacceptable risk in machine protection applications.
Signal drift is often the first warning sign. If trending data shows the probe’s baseline reading shifting over weeks or months without corresponding changes in machine condition, the probe’s internal electronics or coil may be degrading. Compare readings against redundant probes if available, or perform a gap check with a calibrated reference.
Erratic readings suggest intermittent electrical problems. Damaged cable insulation, corroded connections, or failing internal components can cause signal noise or sudden jumps in output voltage. These issues sometimes appear only at certain temperatures or vibration levels, making them difficult to reproduce during static testing.
Physical inspection reveals obvious problems. Corrosion on the probe tip changes the electromagnetic field characteristics and shifts calibration. Cable jacket cracks allow moisture ingress that eventually reaches the conductors. Bent or deformed probe bodies indicate mechanical impact that may have damaged internal components.
Sensitivity loss develops when the probe produces smaller voltage changes for the same displacement. This can result from coil degradation or target surface changes. Either way, the probe becomes less effective at detecting small shaft movements that might indicate developing bearing problems or seal wear.
Implementing predictive maintenance strategies that track probe performance over time identifies degradation trends before they reach failure thresholds. Scheduling Epro PR6424/002-100 replacement during planned outages avoids the cost and risk of emergency interventions. Understanding sensor degradation signs and planning for industrial sensor obsolescence keeps machine protection systems reliable.
Common Failure Modes in Proximity Probes
Proximity probes fail through several mechanisms, and knowing these helps distinguish probe problems from system issues during troubleshooting.
Mechanical damage occurs from installation errors, accidental impacts, or debris striking the probe tip. Even minor dents or scratches on the tip surface alter the electromagnetic field geometry and shift calibration.
Environmental exposure degrades probe materials over time. High temperatures accelerate insulation breakdown. Corrosive atmospheres attack metal surfaces and cable jackets. Moisture penetration causes electrical leakage and eventual short circuits.
Electrical faults include open circuits from broken conductors, short circuits from insulation failure, and ground faults from moisture or contamination. Cable failures are more common than probe body failures because cables experience more mechanical stress and environmental exposure.
Internal component drift affects the signal conditioning electronics in the probe or its associated driver. Capacitors age, resistors drift, and semiconductor characteristics change over temperature cycling. These changes manifest as calibration shift or sensitivity loss.
Regular inspections and adherence to manufacturer guidelines reduce failure rates. Vibration monitoring systems depend on probe reliability, so maintenance programs should include periodic probe health verification.
The market for industrial automation spare parts includes genuine manufacturer stock, authorized distributors, third-party suppliers, and unfortunately, counterfeit products. Securing authentic Epro PR6424/002-100 replacements requires careful supplier evaluation.
Counterfeit proximity probes present real risks. They may use inferior materials that degrade faster, have calibration errors that produce inaccurate readings, or lack the environmental resistance needed for industrial applications. A counterfeit probe that fails to detect a developing shaft problem can cause equipment damage far exceeding the cost savings from buying cheap parts.
Authorized distributors provide the most reliable source for genuine components, though availability and lead times vary. When original equipment is scarce or discontinued, compatible proximity probes from reputable manufacturers may offer viable alternatives. Compatibility evaluation requires matching all critical specifications, not just the measuring range.
We specialize in providing authentic and reliable components for PLC, DCS, and vibration monitoring systems. Our relationships with global maintenance service providers ensure access to genuine parts and qualified alternatives when original equipment becomes unavailable. PLC DCS component sourcing expertise helps clients navigate supply chain challenges without compromising system integrity.
Selecting the Right Replacement
Choosing a replacement for the Epro PR6424/002-100 involves more than finding a part with the same model number. Several factors determine whether a replacement will perform correctly in your specific application.
Technical specifications must match. Measuring range, sensitivity, frequency response, and output signal characteristics all need to align with the original probe and the monitoring system it connects to. A probe with different sensitivity requires recalibrating the entire measurement chain.
Physical dimensions and mounting geometry must be compatible. Probe diameter, thread size, and cable exit location affect installation in existing mounting hardware. Even small dimensional differences can prevent proper gap setting or create mechanical interference.
Certified industrial parts from reputable suppliers provide documentation of specifications and quality testing. This documentation supports troubleshooting if problems arise and provides traceability for regulatory compliance in some industries.
Supplier reputation matters for ongoing support. Warranty coverage, technical assistance, and return policies vary significantly between suppliers. A supplier who understands sensor compatibility checks can help identify potential issues before installation.
Joyoung International Trading Co., Limited provides expert consultation to guide clients through replacement selection, ensuring the chosen component meets application requirements.
Installation, Calibration, and Maintenance Procedures
Proper installation determines whether the Epro PR6424/002-100 delivers accurate measurements or produces misleading data. The probe’s electromagnetic field interacts with everything conductive near the tip, so installation geometry matters significantly.
Gap setting establishes the probe’s operating point within its measurement range. The target surface should position the probe output near the middle of its linear range during normal operation, leaving room for both positive and negative displacement excursions. Setting the gap too close risks signal saturation during shaft movement toward the probe. Setting it too far reduces sensitivity and may push the probe outside its linear region.
Mounting hardware must hold the probe rigidly. Any vibration of the probe body relative to the machine casing appears as additional shaft vibration in the measurement. Loose mounting produces false readings that can trigger unnecessary alarms or mask real problems.
Cable routing should avoid electromagnetic interference sources, sharp bends, and mechanical stress points. Proximity probe cables carry low-level signals susceptible to noise pickup from power cables, variable frequency drives, and other electrical equipment. Shielding effectiveness depends on proper grounding at the monitoring system end.
Target surface condition affects measurement accuracy. The target should be smooth, clean, and free from scratches, rust, or deposits that could create local variations in the electromagnetic interaction. Some applications use dedicated target areas machined specifically for probe measurements.
Calibration verifies that the probe’s output corresponds correctly to actual displacement. This process uses precision gap standards or calibrated fixtures to establish the relationship between physical position and electrical output. The Epro PR6424/002-100 installation guide from the manufacturer provides specific calibration procedures.
Regular calibration checks catch drift before it affects measurement accuracy. Calibration frequency depends on application criticality and environmental severity. High-temperature applications or safety-critical measurements warrant more frequent verification.
Routine maintenance includes visual inspection of the probe tip and cable, verification of mounting security, and review of trending data for signs of degradation. Keeping the probe tip clean prevents contamination from affecting the electromagnetic field. Addressing environmental factors like excessive moisture or corrosive atmospheres extends probe life.
These sensor maintenance tips and industrial sensor troubleshooting practices support reliable long-term operation. Preventive maintenance for probes costs far less than emergency replacements and the associated downtime.
The Importance of Accurate Calibration
Calibration errors propagate through the entire measurement and protection system. An uncalibrated probe might read 50 microns of vibration when the actual value is 75 microns. That 50% error could mean the difference between detecting a developing bearing fault and missing it until catastrophic failure occurs.
Machine protection systems rely on calibrated measurements to make shutdown decisions. If the probe reads low, the system may not trigger protective shutdown when it should. If the probe reads high, unnecessary shutdowns disrupt production and erode confidence in the monitoring system.
Vibration measurement accuracy depends on knowing the exact relationship between shaft displacement and probe output voltage. Calibration establishes this relationship under controlled conditions. Periodic recalibration confirms the relationship remains valid as the probe ages.
The calibration process also verifies linearity across the measurement range. A probe might be accurate at the center of its range but deviate at the extremes. Full-range calibration checks catch these problems.
Documentation of calibration results supports troubleshooting and provides historical records for trend analysis. Comparing current calibration data against previous results reveals gradual drift that might not be obvious from day-to-day observations.
Connecting Proximity Probes to Control and Protection Systems
The Epro PR6424/002-100 generates data that becomes valuable only when integrated into larger control and protection architectures. The probe’s voltage output feeds into signal conditioning and monitoring equipment that interprets the measurements and takes appropriate action.
PLC module integration allows proximity probe data to participate in logic-based control sequences. A PLC might use shaft position data to control actuator timing, adjust process parameters based on vibration levels, or coordinate multiple measurements for complex protection logic. The probe’s analog output connects through input modules that convert voltage to digital values the PLC can process.
DCS card pieces in distributed control systems aggregate proximity probe data with other process measurements for comprehensive plant monitoring. DCS platforms provide trending, alarming, and historical data storage that support condition monitoring and predictive maintenance programs. Operators see probe data alongside temperature, pressure, flow, and other parameters on integrated displays.
Steam turbine control system module applications use proximity probes for speed measurement, thrust position monitoring, and radial vibration detection. The probe data feeds into control algorithms that adjust steam admission, maintain rotor position within safe limits, and trigger protective actions when measurements exceed thresholds.
ESD system card pieces in emergency shutdown systems use proximity probe measurements as inputs to safety logic. If shaft vibration exceeds a critical threshold, the ESD system initiates a controlled shutdown sequence that protects equipment and personnel. These safety applications demand the highest probe reliability because failure to detect a dangerous condition has severe consequences.
Gas generator spare parts and other rotating equipment applications follow similar integration patterns. The common thread is that proximity probe measurements enable automated responses to machinery conditions that would otherwise require continuous human observation.
Working with Joyoung International for Industrial Automation Components
As a trusted supplier of industrial automation spare parts, Joyoung International Trading Co., Limited specializes in providing authentic and reliable components, including Epro PR6424/002-100 replacements. We partner with global maintenance service providers to ensure your operations run seamlessly. Contact us today at chen@htechplc.com or +86-181-5013-7565 for expert consultation and to secure your critical spare parts.
Frequently Asked Questions About Epro PR6424/002-100 Probes
What measuring range and output characteristics define the Epro PR6424/002-100?
The Epro PR6424/002-100 proximity probe typically measures displacement from 0 to 2.0mm with a sensitivity of 8.0 V/mm. The output signal ranges from -2 to -18 VDC, following the negative voltage convention standard in vibration monitoring equipment. Frequency response extends to 10kHz, capturing high-speed vibration events in turbines and compressors. Linearity stays within ±1.0% of full scale across the measurement range. Operating temperature spans -35 to +120°C. These values may vary slightly between production revisions, so verify against the current manufacturer datasheet for your specific probe.
What factors determine when to replace an Epro PR6424/002-100 proximity probe?
Replacement timing depends on observed performance rather than fixed intervals. Watch for signal drift where baseline readings shift without corresponding machine changes. Erratic readings suggest cable damage or internal electrical problems. Physical inspection may reveal tip corrosion, cable jacket cracks, or mechanical damage from impacts. Sensitivity loss shows up as reduced voltage change for the same displacement. Trending probe output over time reveals gradual degradation before it reaches failure thresholds. Schedule replacement during planned maintenance windows when these indicators appear, rather than waiting for complete failure in a machine protection application.
How can I verify that replacement Epro PR6424/002-100 probes are genuine?
Source probes from authorized distributors or suppliers with documented relationships to the manufacturer. Request certificates of conformance and calibration documentation. Compare physical characteristics against known genuine probes, including markings, cable construction, and connector details. Counterfeit probes often have subtle differences in labeling fonts, cable jacket materials, or connector plating. Test new probes against calibration standards before installation to verify specifications match published values. Joyoung International Trading Co., Limited specializes in authentic industrial automation components and can provide documentation supporting component authenticity for Epro PR6424/002-100 and related vibration monitoring equipment.
