Proper installation of the CP515 dynamic pressure sensor directly affects measurement accuracy and long-term reliability. Thread sealing and pressure tube routing are the two most common failure points, yet they are often overlooked during commissioning. This guide provides practical steps to avoid leaks, prevent signal drift, and extend sensor service life.
Why Correct Installation Matters

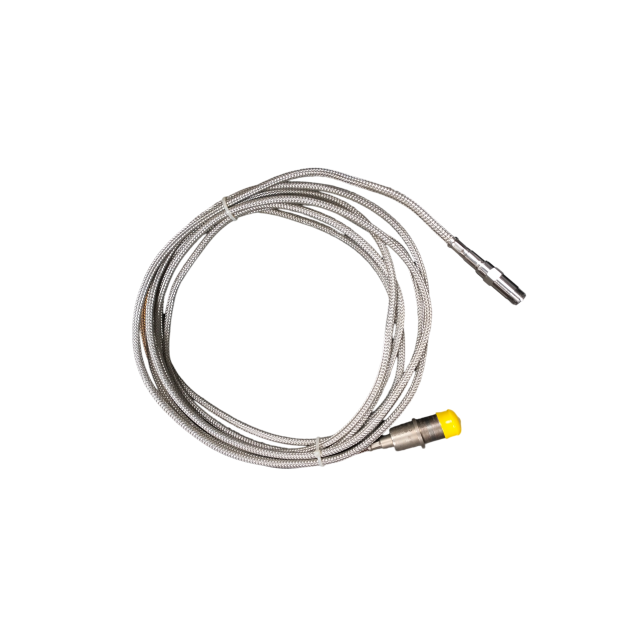

The CP515 (143-515-000-111) is designed for dynamic pressure monitoring on steam turbines, compressors, and hydraulic systems. Even a minor thread leak can introduce measurement noise, delay trip signals, or damage the sensor diaphragm. A poorly supported pressure tube transfers vibration and mechanical stress, causing zero drift or premature sensor fatigue. Getting the installation right from the start avoids these risks.
Thread Sealing: Choosing the Right Method
The CP515 sensor body usually has a 1/4″ or 1/2″ NPT or BSPP thread, depending on the model suffix. Always check the specific port thread before selecting a sealant.
Acceptable sealing options:
PTFE tape (Teflon tape): Apply 2–3 wraps in a clockwise direction, starting one thread back from the sensor tip. Do not over‑wrap, as excess tape can break loose and block the pressure port.
Liquid thread sealant (medium‑strength, sensor‑safe): Suitable for tapered threads. Use a small amount on the male thread only, avoiding the first two threads. Ensure the sealant is compatible with the process media (oil, steam, water‑glycol).
Bonded seal (Dowty washer): For parallel (BSPP) threads, a metal‑bonded rubber seal provides reliable sealing without thread compound.
Avoid:
Hemp or fibrous pastes – they can shed particles and contaminate the sensor.
Hardening sealants (e.g., epoxy) that make future removal impossible without damage.
Applying sealant to the female port – it increases the risk of pushing material into the sensor.
Tightening torque:
Use a calibrated torque wrench. Typical values for stainless‑steel CP515 sensors:
Thread Size | Recommended Torque (lubricated threads) |
|---|
1/4″ NPT | 20 – 25 Nm |
1/2″ NPT | 40 – 50 Nm |
Always refer to the installation drawing for final torque. Overtightening can deform the thread or shift internal sensing elements.
Pressure Tube Installation
The impulse line between the process tap and the sensor must transfer pressure without distorting the dynamic signal. Rigid stainless‑steel tube (1/4″ or 6 mm OD) is standard.
Key rules:
Tube bending radius: Maintain a minimum bend radius of 5× tube OD to avoid flattening. Use a tube bender, not manual force.
Support and clamping: Fix the tube every 300–400 mm with cushioned clamps. This prevents vibration‑induced fatigue cracking and reduces mechanical noise at the sensor.
Slope for condensate: For steam applications, install the tube with a slight slope (1:10 minimum) away from the sensor to prevent condensate buildup, or use a water‑leg trap.
Stress‑free connection: Before tightening the compression fitting, ensure the tube aligns perfectly with the sensor port. Any side load will stress the sensor housing and cause zero offset.
Tube type & fitting:
Use seamless, annealed stainless‑steel tube (316L) with twin‑ferrule compression fittings.
Avoid over‑tightening the fitting nut – one full turn after finger‑tight is usually sufficient.
Commissioning Checks
After installation, perform these checks before applying full process pressure:
Leak test: Pressurize with nitrogen or clean air at 1.1× working pressure. Apply leak detection fluid to all connections. No bubbles permitted.
Sensor zero verification: Before pressurizing, check the electrical output at atmospheric pressure. It must match the calibration certificate (±0.5% of span is typical). A shifted zero often indicates mechanical stress or thread debris.
Frequency response test: If possible, apply a known dynamic pressure step and verify the sensor’s rise time meets specifications. Installation‑induced damping will appear as a slower response.
Common Installation Mistakes
Mistake | Consequence | How to avoid |
|---|
Using too much PTFE tape | Tape fragment blocks sensing port, signal loss | Wrap only 2‑3 layers, keep tape away from tip |
Hard‑piping without flexible loop | Thermal expansion stress cracks the tube | Include a vibration loop or flexible hose section |
Teflon sealant on parallel threads | Leakage, poor sealing | Use bonded seal for parallel threads |
No tube support near sensor | Vibration transmits directly to diaphragm | Clamp tube within 150 mm of sensor fitting |
Fastening sensor body with wrench on the hex above the thread | Internal torque shift, calibration change | Use the designated wrench flats only |
Spare Parts & Technical Support
When you need an original CP515 (143-515-000-111) or complete VM600 system sensors, cables, and modules, Joyoung International Trading Co. maintains ready stock and offers global shipping. Our technical team can help with cross‑model matching, installation advice, and urgent replacements to keep your rotating machines protected.
See our VM600 series spare parts range. For a quote or technical question, contact Li Hao at chen@htechplc.com or +86‑181‑5013‑7565.
FAQ
Q: Can I use liquid sealant instead of PTFE tape on an NPT thread?
A: Yes, provided the sealant is rated for the process temperature and pressure, and you keep it away from the sensor inlet. Many engineers prefer liquid sealant for permanent steam lines.
Q: How do I know if my CP515 is suffering from installation‑induced zero drift?
A: Compare the atmospheric zero with the original calibration sheet. A drift >1% of span after installation suggests mechanical stress on the body. Loosen the fitting, realign the tube, and re‑torque.
Q: Is a flexible hose allowed instead of rigid tube?
A: Only if the hose has a stainless‑steel braid, a PTFE inner core, and a pressure rating suitable for the application. Avoid rubber hoses – they dampen dynamic pressure signals.
Q: What is the recommended sealing method for steam turbine bearing oil pressure measurement?
A: A bonded seal (Dowty washer) on a BSPP thread is preferred, as it avoids sealant/temperature issues and makes sensor replacement fast during outages.
