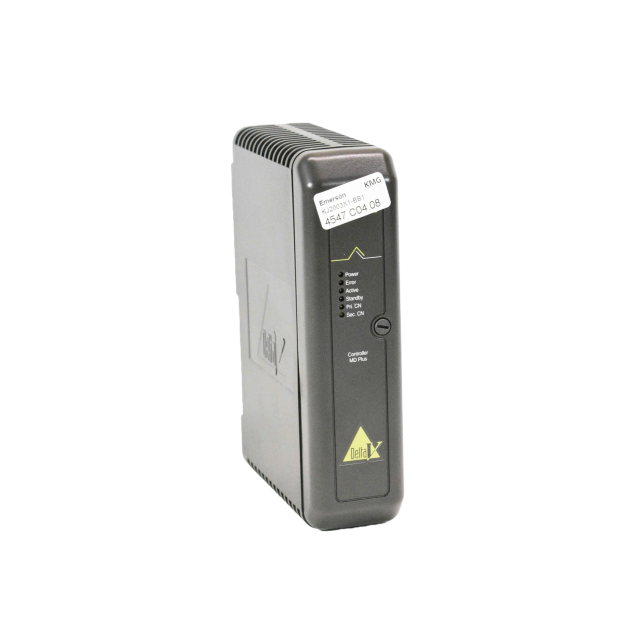

Emerson KJ2003X1-BB1 is an MD Plus Controller for DeltaV DCS, boasting enhanced computing power and expanded I/O connectivity. It executes complex control logic, supports high-speed data processing, and ensures stable communication with system modules for industrial automation.
Publish Date of ATEX Instruction Sheet: August 2021
Manufacturer: Emerson Automation Solutions (Round Rock, Texas)
Serial Number & Manufacturing Details: Refer to the product label for serial number, manufacturing
location, and manufacturing date
Product Overview
The KJ2003X1-BB1 is a Remote Interface Unit 2 (RIU2) designed for hazardous industrial environments, serving as a key connection component in automation systems (e.g., DeltaV™ Scalable Process System). It provides stable Local Bus power and complies with global hazardous area safety standards, ensuring reliable data transmission and interface functionality in critical process control scenarios.
Environmental Specifications
Environmental Parameter
Specification
Ambient Temperature
-40°C to +70°C
Shock
10g ½ sinewave for 11msec
Vibration
1mm peak to peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants
ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity
5% to 95% Non-Condensing
Installation & Operational Requirements
1.Safety-Critical Handling
Powered Removal/Insertion: Strictly prohibited unless the area is confirmed non-hazardous. This prevents electrical arcing (a ignition risk in explosive atmospheres) and avoids damage to the RIU2 or DeltaV Local Bus.
Wiring Guidelines: Refer to Emerson’s DeltaV™ Scalable Process System Zone 2 Installation Instructions (Document 12P2046) for hazardous-area wiring practices (e.g., shielded cables, proper grounding) to maintain certifications.
2.System Integration
DeltaV Compatibility: Optimized for the DeltaV™ Scalable Process System; follow the DeltaV™ M-Series Hardware Installation and Reference manual for integration steps, including Local Bus connection and network configuration.
Mounting: Intended for rack mounting in Emerson-approved control cabinets (compatible with standard 19-inch industrial racks). Ensure adequate ventilation to maintain ambient temperature within the -40°C to +70°C range.
Maintenance & Service
No User-Serviceable Parts: The RIU2 contains no components that can be serviced, adjusted, or replaced by the user. Disassembly is prohibited, as it would void safety certifications and compromise hazardous-area safety.
Calibration: Factory-calibrated for optimal communication performance; no periodic calibration is required under normal operating conditions.
Traceability: Serial number, manufacturing location, and production date are printed on the product label for warranty tracking, regulatory audits, and maintenance records.
Compliance & Documentation
Publisher: Emerson Automation Solutions (Round Rock, Texas, USA).
Key Documentation:
ATEX Instruction Sheet (Part Number: ATEX282; Publish Date: August 2021).
DeltaV™ Scalable Process System Zone 2 Installation Instructions (Document 12P2046).
DeltaV™ M-Series Hardware Installation and Reference (for system integration guidelines).
Target Applications: Ideal for oil, gas, and chemical plants requiring remote DCS connectivity in Zone 2/Division 2 hazardous areas, such as offshore platforms, refineries, and chemical processing units.
Safety Warnings
Strictly comply with the communications network voltage limitation (≤60 VAC / ≤75 VDC) to avoid electrical hazards like short circuits or equipment damage.
Ensure adherence to all hazardous area safety standards during operation to prevent risks such as electrical shock or ignition in explosive atmospheres.
