1C31122G01 Digital Output Module: Technical Guide for Industrial Control Systems

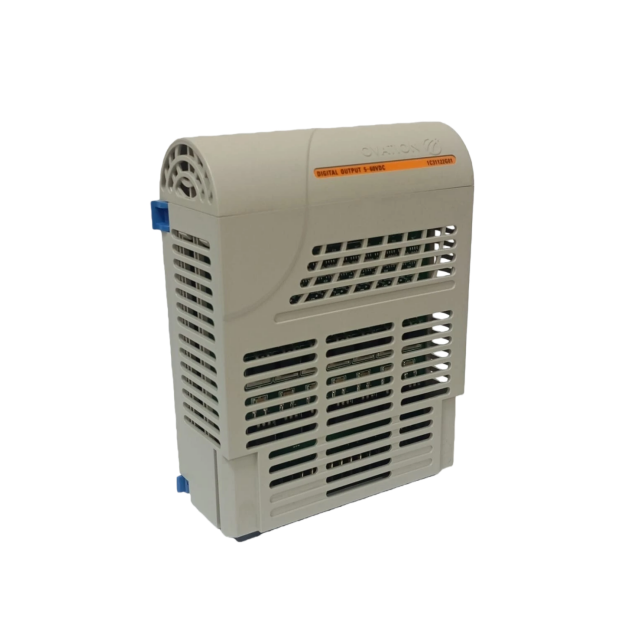

The 1C31122G01 is a critical electronics module within Emerson’s Ovation Distributed Control System (DCS), designed to deliver reliable digital output functionality for industrial applications. It supports up to 16 current-sinking transistor outputs, capable of switching loads up to 60 VDC and 500 mA per channel—making it ideal for controlling relay coils, lamps, valves, and other field devices in manufacturing, energy, and process control environments. Engineered for durability and flexibility, it includes configurable communication timeouts, built-in diagnostic features, and compatibility with multiple personality modules to adapt to diverse system integration needs. Below is a detailed breakdown of its core functions, compatibility, specifications, wiring, and safety compliance—optimized for clarity and search visibility.
1. Core Function & Compatibility
The 1C31122G01 acts as the electronics backbone for digital output subsystems, translating digital control signals from the Ovation Controller into actionable outputs for field devices. Its functionality is defined by compatible personality modules, which determine whether it interfaces directly with field wiring or with relay panels for high-current/high-voltage switching.
1.1 Compatible Personality Modules
The 1C31122G01 requires a personality module to enable specific interface capabilities, with three supported options:

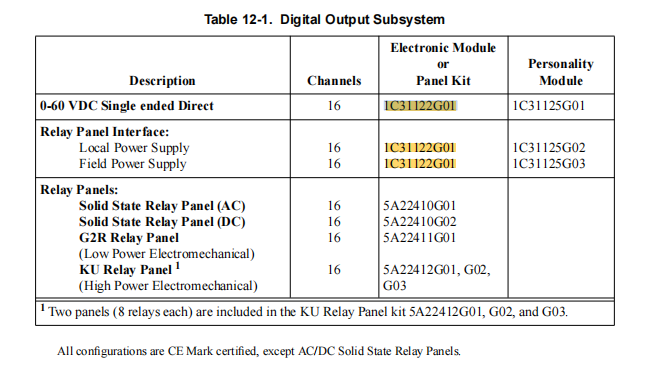

1C31125G01: Designed for direct field wiring to devices like solenoids or alarms. It supports single-ended 0–60 VDC outputs, eliminating the need for intermediate relay panels in low-power applications.
1C31125G02: Used for integrating with relay panels (e.g., G2R, KUEP) using local power sourced from the Ovation I/O backplane’s auxiliary supply (24 VDC). This is ideal for setups where the relay panel draws power directly from the system.
1C31125G03: Enables integration with relay panels using remote power (sourced from the relay panel itself). A key caution for this configuration: the returns for remote and local power supplies are connected internally, so power supply return lines must be earth-grounded at only one point to avoid ground potential differences.
1.2 Relay Panel Integration
When paired with 1C31125G02 or 1C31125G03, the 1C31122G01 supports Emerson’s standard relay panels for applications requiring higher current or voltage switching than direct field wiring allows. Common compatible relay panels include solid-state (AC/DC), G2R electromechanical, and KUEP high-power types. These panels extend the module’s capability to switch loads like large motors or high-voltage pumps, with contact ratings ranging from 10 A @ 250 VAC to 10 A @ 150 VDC. Note that solid-state relay panels are not CE Mark certified, while other relay panel configurations meet CE standards.
2. Key Technical Specifications
The 1C31122G01 is built to withstand harsh industrial conditions while maintaining consistent performance. Key specifications include:
Output Channels: 16 current-sinking transistor outputs, each capable of handling up to 500 mA (total current limited by fuse rating).
Voltage Range: 0–60 VDC for output circuits, with an on-state voltage drop of 0.2 V @ 100 mA and 1.0 V @ 500 mA to minimize power loss.
Leakage Current: 25 µA @ 25°C (60 VDC) and 250 µA @ 60°C (60 VDC) in off-state, ensuring minimal parasitic power draw.
Propagation Delay: Maximum 2.5 ms for a 500 Ω load, ensuring fast response to control signals.
Isolation: 1000 V AC/DC between channels and logic circuits, preventing electrical interference from field-side noise.
Environmental Ratings: Operating temperature range of 0–60°C (32–140°F), storage temperature range of -40–85°C (-40–185°F), and 0–95% non-condensing humidity—suitable for indoor and controlled industrial environments.
Power Consumption: Main power (logic supply) draws 2.2 W typically and 3.3 W maximum; auxiliary power consumption depends on the load (e.g., relay panels or field devices).
2.1 Blown Fuse Detection
The module includes built-in blown fuse detection circuitry, enabled via the configuration register. This feature monitors the auxiliary power supply: if the field supply fuse blows or the voltage drops below 15 VDC, the module alerts the Ovation Controller via the status register and illuminates the external fault (E) LED. This prevents undetected downtime by flagging power-related issues early.
3. Power Supply Requirements
The 1C31122G01 relies on two distinct power sources to operate, each serving a specific purpose:
3.1 Main Power (Logic Supply)
Sourced from the Ovation system’s 24 VDC backplane, this supply powers the module’s internal logic, communication circuits, and diagnostic LEDs. It is critical for maintaining communication with the Ovation Controller and processing control signals.
3.2 Auxiliary Power (Field/Relay Supply)
Used to power field devices or relay panels, auxiliary power can be sourced internally or externally:
Internal Auxiliary Supply: Drawn from the I/O backplane (24 VDC) for configurations using 1C31125G01 (direct field wiring) or 1C31125G02 (locally powered relay panels).
External Auxiliary Supply: Required for 1C31125G03 (remotely powered relay panels). If using an external supply, it must meet strict noise requirements (≤2.2 mV RMS between 500 Hz and 10 kHz) to avoid interfering with digital signals. Refer to Appendix D of the 1C31122G01 documentation for steps to safely connect an external supply to the base unit terminal block.
4. Terminal Block Wiring & Field Connections
Proper wiring is critical for the 1C31122G01’s performance and safety. Each compatible personality module includes a simplified wiring diagram label on its side, guiding connections to the base unit’s terminal block.
4.1 Key Wiring Abbreviations
+: Digital output positive terminal (connects to field device or relay coil positive).
-: Digital output negative terminal (common return for field devices).
PS+, PS-: Auxiliary power supply terminals (for internal or external 24 VDC).
SH: Shield terminal (for non-CE Mark systems; not used in CE Mark configurations).
Earth Ground: Terminal for connecting to system ground, preventing electrostatic discharge (ESD) and noise.
RSV: Reserved terminals—no connections allowed, as they are used for internal backplane communication.
4.2 Wiring Guidelines
Direct Field Wiring (1C31125G01): Connect field devices (e.g., lamps, small solenoids) between the “+” terminal of the module and the device’s positive lead, with the device’s negative lead connected to the module’s “-” terminal. Ensure the total load current does not exceed 500 mA per channel.

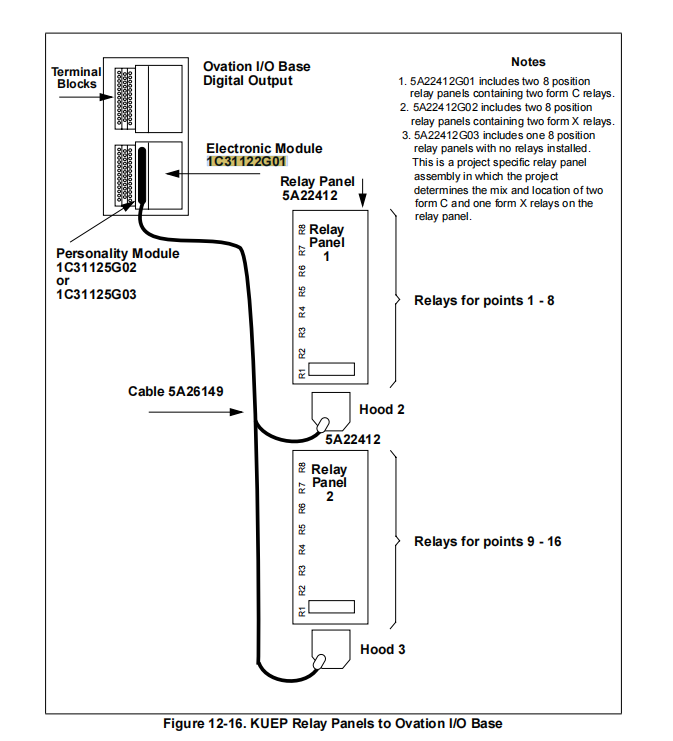

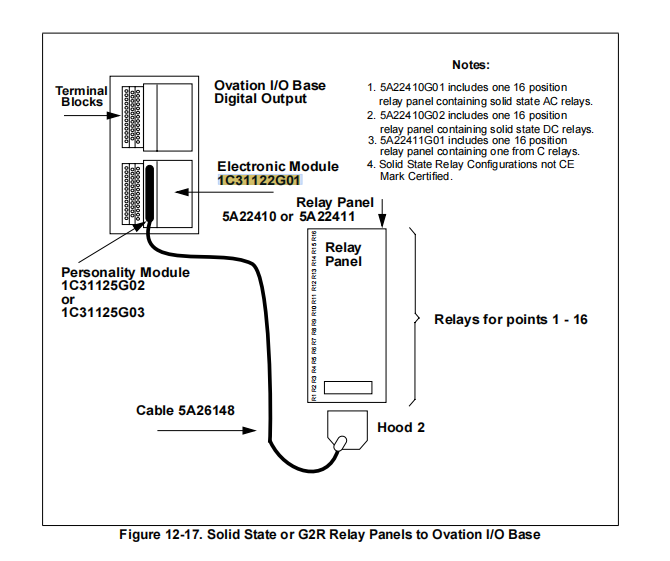

Relay Panel Wiring (1C31125G02/G03): Use the specified communication cable (5A26148 for G2R/solid-state panels, 5A26149 for KUEP panels) to connect the module to the relay panel. For CE Mark systems, all field wiring must be braid-shielded and grounded at the cabinet entry point to meet EMC standards.
5. Configuration & Status Monitoring
The 1C31122G01 is configured via the Ovation Controller using the Configuration and Status Register (word address 13, or D in Hex). Key configuration settings include:
5.1 Configuration Register Bits
Bit 0 (Configure Module): Must be set to “1” to activate the module. Until configured, reading point data will return an attention status.
Bit 1 (Force Error): Setting this bit to “1” forces the module into an error state, illuminating the internal fault (I) LED and preventing data reads.
Bits 2–4 (Communication Timeout): Define the timeout period (62 ms to 16 seconds) for controller communication. If communication is lost beyond this period, outputs either hold their last state (Bit 5 set) or reset to off (Bit 5 cleared).
Bit 5 (Hold Output on Timeout): Determines output behavior during communication loss—“1” holds outputs, “0” resets outputs to off.
Bit 7 (Enable Blown Fuse Detection): Activates the blown fuse detection circuit; required to monitor auxiliary power supply health.
5.2 Status Register Monitoring
The status register (same address as the configuration register) provides real-time diagnostics:
Bit 0 (Module Configured): “1” indicates the module is active.
Bit 1 (Forced Error): “1” confirms the module is in a forced error state.
Bit 6 (Blown Fuse): “1” alerts to a blown field supply fuse or low auxiliary voltage (only if Bit 7 is enabled).
Bits 2–4 (Timeout Status): Reflect the current communication timeout setting.
6. Diagnostic LEDs

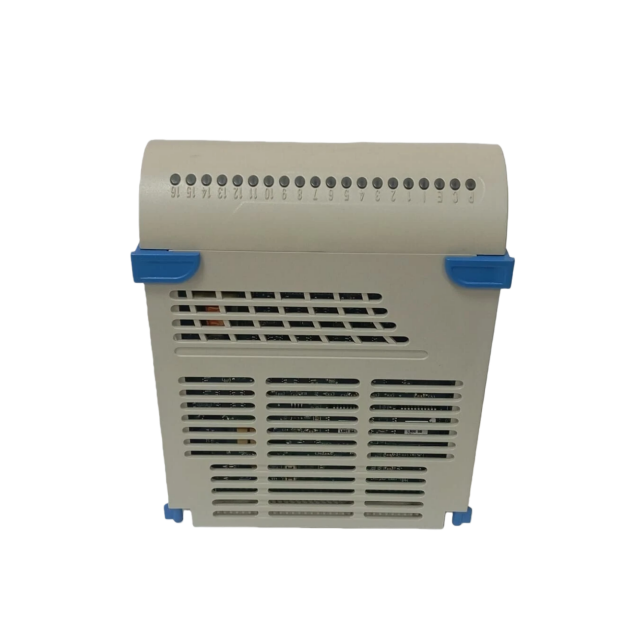

The 1C31122G01 includes five diagnostic LEDs to provide at-a-glance status, simplifying troubleshooting:
P (Green): Power OK—lit when the +5 VDC logic supply is functional.
C (Green): Communications OK—lit when the module is communicating with the Ovation Controller.
E (Red): External Fault—lit if the blown fuse detection circuit is enabled and a fuse blows or auxiliary voltage is low.
I (Red): Internal Fault—lit if the Force Error bit is set or communication with the controller times out.
CH1–CH16 (Green): Channel Status—each LED is lit when its corresponding output is in the “on” state (sinking current).
7. Safety & Compliance
The 1C31122G01 meets key industrial safety and EMC standards to ensure reliable operation in controlled and hazardous environments:
CE Mark Certification: All configurations (except solid-state relay panels) comply with CE standards, including EN 61000-4 for EMC immunity (electrostatic discharge, radiated fields, fast transients).
Lockout/Tagout (LOTO): When replacing the module in a live system, apply LOTO to the chassis power supply to prevent accidental energization.
ESD Protection: Always wear an ESD wristband grounded to the chassis when handling the module, and store it in an ESD-protective bag when not installed.
Hazardous Voltage Labeling: If the module interfaces with voltages >60 VDC (e.g., 125 VDC loads), apply the hazardous voltage warning label (1B30025H01) to the base unit—preferably above the spare fuse location. Project drawings must document this labeling.
8. Maintenance Best Practices
To maximize the 1C31122G01’s lifespan and reliability:
Routine Inspections: Monthly checks to verify LED status (no unexpected fault lights), secure wiring, and intact labels.
Fuse Replacement: If the external fault LED illuminates, replace the auxiliary power fuse with an exact rating match (refer to the personality module label for specifications).
Cleaning: Use a dry, lint-free cloth to remove dust from the module and base unit—avoid solvents, which can damage plastic components.
Replacement: When replacing the module, ensure the new 1C31122G01 is paired with the same personality module as the original to maintain compatibility. Reconfigure the module via the Ovation Controller after installation.
