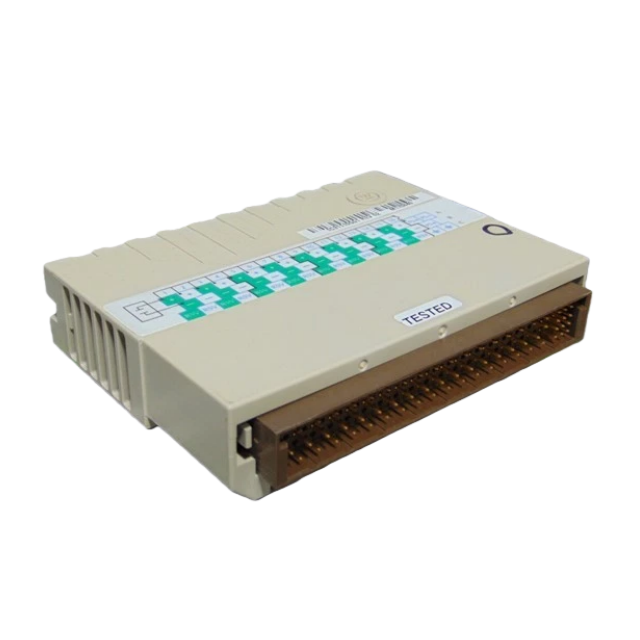

1C31110G01 Personality Module: Technical Guide for Digital Input & SOE Integration
The 1C31110G01 is a specialized personality module designed for use with industrial control systems—primarily supporting 16 single-ended digital input configurations in both standard Digital Input (DI) subsystems and Sequence of Events (SOE) modules. Engineered for reliability in industrial environments (e.g., manufacturing, energy, and process control), it enables flexible voltage sourcing and requires specific safety compliance for hazardous voltage applications. Below is a detailed breakdown of its key specifications, configuration rules, safety requirements, and integration steps.

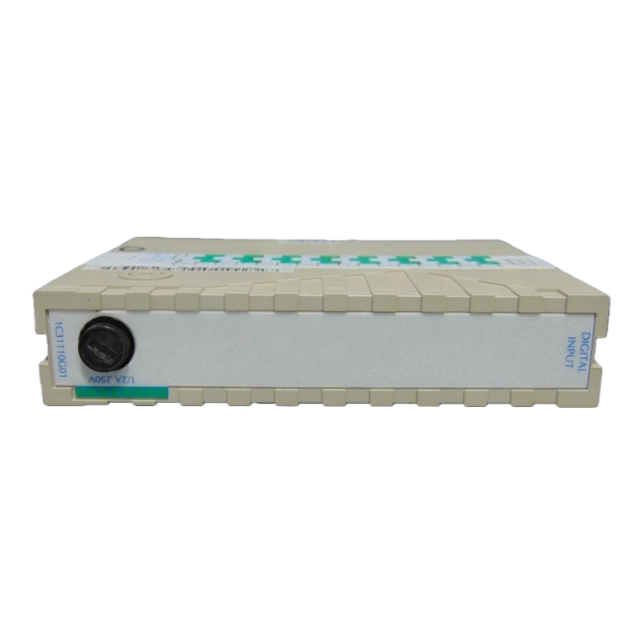

1. Core Function & Compatibility
The 1C31110G01’s primary role is to enable digital input functionality for two critical system components:

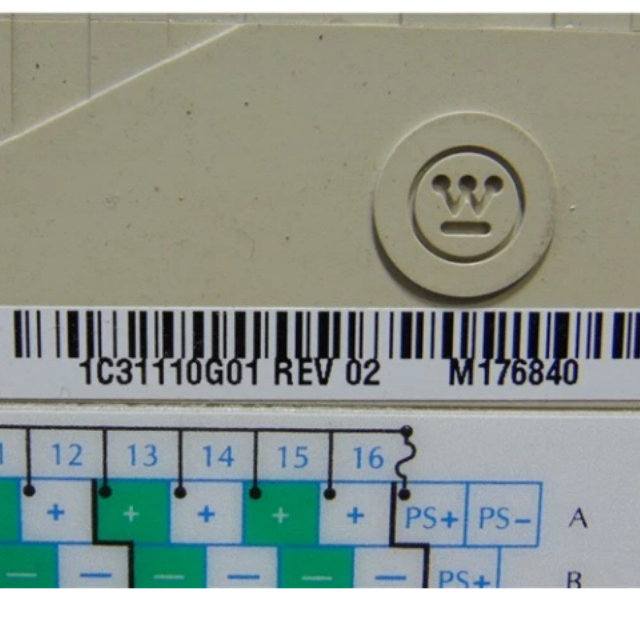

Standard Digital Input (DI) Subsystems: Works with DI base units to process 16 single-ended digital input signals, converting field-level signals into data usable by the control system.

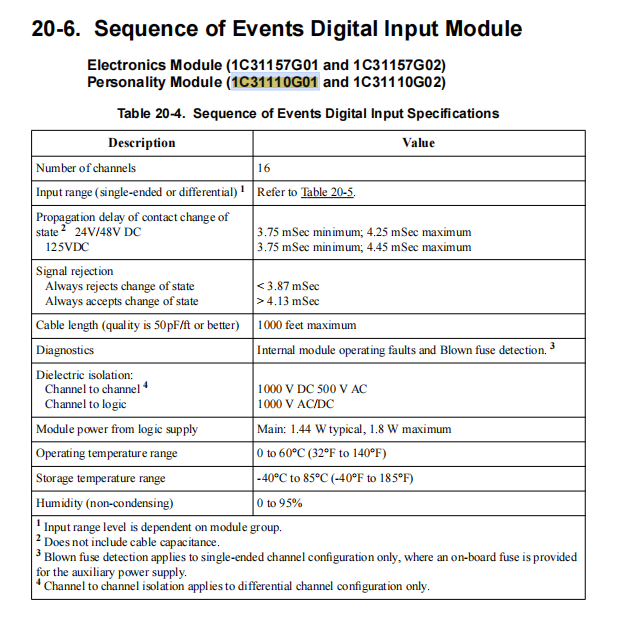

Sequence of Events (SOE) Modules: Paired with SOE electronics modules (e.g., 1C31157G02) to capture time-stamped digital input events—critical for troubleshooting, audit trails, and compliance in safety-sensitive processes.
It is compatible with industrial control platforms (e.g., Emerson Ovation systems) and requires matching base units to physically mount and connect to field wiring.
2. Voltage Sourcing Options
A key flexibility of the 1C31110G01 is its dual voltage sourcing capability, allowing adaptation to different system power architectures:
2.1 Internal Auxiliary Power Supply (Backplane)
For simplified integration, the module can draw required power directly from the system backplane’s internal auxiliary power supply. This eliminates the need for external wiring and is ideal for applications where the backplane power meets the module’s voltage requirements (typically 24VDC or 125VDC, depending on the base unit).
Use Case: Recommended for standard, non-hazardous voltage setups (≤60VDC) where system backplane power is stable and accessible.
Setup: No additional wiring is needed—power is automatically supplied when the module is properly seated in the base unit and the backplane is energized.

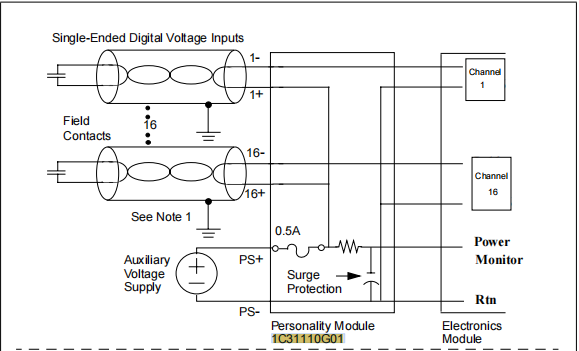

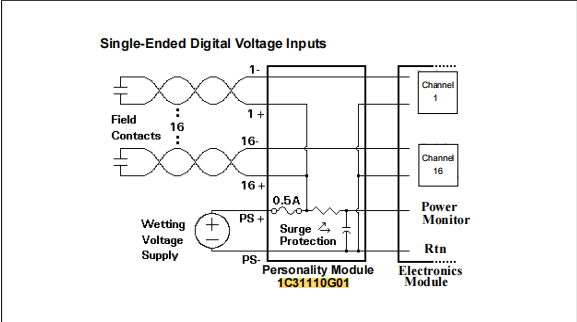

2.2 External Power Supply
If the internal backplane power is insufficient or incompatible, the 1C31110G01 can use an external power supply connected to the DI or SOE base unit’s terminal block. This is common for applications requiring higher voltage (e.g., 125VDC) or isolated power for noise-sensitive signals.
Critical Pre-Integration Steps:
Verify the external power supply’s voltage and current ratings match the module’s specifications (refer to the base unit’s technical datasheet).

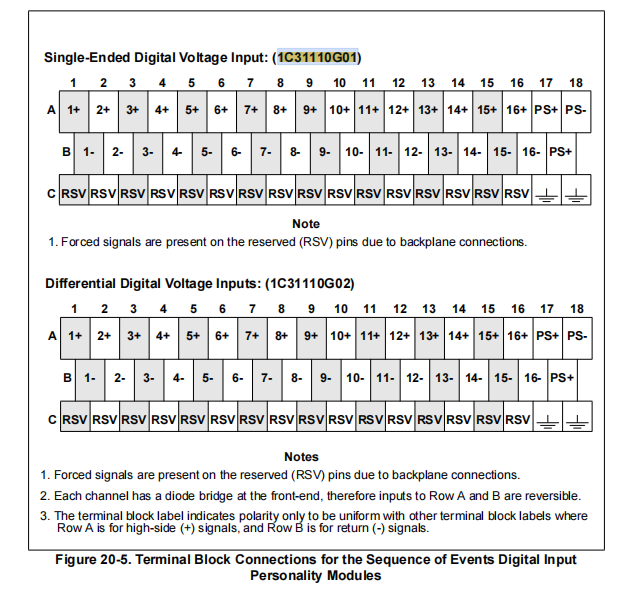

Follow the wiring diagrams in Appendix D of your system’s installation manual to connect the external supply to the base unit’s terminal block—ensure correct polarity (positive/negative) to avoid module damage.
Test the external supply for stability (e.g., no voltage fluctuations) before powering on the module.
Confirm isolation between the external supply and system ground to prevent ground loops or EMI interference.
3. Hazardous Voltage Safety Requirements
The 1C31110G01 requires mandatory safety labeling when used with hazardous voltages (>60VDC)—a critical compliance measure to protect personnel and equipment. The labeling rules vary based on whether the module is paired with a differential or single-ended SOE configuration:
3.1 Scenario 1: Paired with 1C31157G02 SOE Module (Differential DI Personality)
If the 1C31110G01 is used with the 1C31157G02 125VDC SOE Electronics Module and a differential DI personality module (1C31110G02), and interfaces with voltages >60VDC:
Apply the hazardous voltage warning label (part number 1B30025H01) to the specific base unit housing the modules.
Label Placement: Position the label in a visible location on the base unit—preferably above the spare fuse slot for easy visibility during maintenance.
3.2 Scenario 2: Paired with 1C31157G02 SOE Module (Single-Ended Configuration)
If the 1C31110G01 is configured for single-ended inputs and paired with the 1C31157G02 SOE module (interfacing with voltages >60VDC):
Apply the 1B30025H01 warning label to ALL base units on the same branch (not just the base unit housing the 1C31110G01). This ensures personnel are alerted to hazardous voltage risks across the entire signal path.
Documentation Requirement: Clearly indicate the label placement on project drawings to ensure compliance during installation and audits.
4. Installation & Verification Checklist
To ensure proper integration of the 1C31110G01, follow this step-by-step checklist:
Compatibility Check: Confirm the module is compatible with your base unit (e.g., DI or SOE base) and control system version.
Voltage Source Selection: Decide between internal backplane power or external supply—reference Section 2 for guidance.
Wiring (External Supply Only): Follow Appendix D to connect the external power supply to the base unit’s terminal block; double-check polarity.
Module Installation: Seat the 1C31110G01 firmly in the base unit, ensuring secure contact with the backplane connectors. Tighten mounting screws to the manufacturer’s recommended torque (typically 10 inch-pounds) to prevent vibration-related issues.
Safety Labeling: Apply the 1B30025H01 label if hazardous voltages (>60VDC) are present—follow Section 3 for placement rules.
Power-Up & Testing:
Energize the system and verify the module’s “Power” or “Status” LED is illuminated (no fault indicators).
Test digital input signals (e.g., simulate field inputs) to confirm data is correctly transmitted to the control system.
For SOE configurations, verify time-stamping accuracy using a calibrated signal generator.
5. Maintenance Best Practices
Routine Inspection: Monthly checks to ensure the module’s LEDs are normal (no fault lights), wiring is secure, and the hazardous voltage label is intact.
Cleaning: Use a dry, lint-free cloth to wipe dust from the module and base unit—avoid solvents, which can damage components.
Replacement: If the module fails (e.g., no signal transmission, persistent fault lights), replace it with an identical 1C31110G01 to maintain compatibility. Ensure the replacement module follows the same voltage and labeling rules as the original.
By following these guidelines, the 1C31110G01 delivers reliable digital input performance while ensuring compliance with industrial safety standards. For additional details (e.g., full wiring diagrams, voltage tolerances), refer to your system’s technical manual or contact the manufacturer’s support team.
