Running a turbine hall or compressor station means living with the constant hum of rotating equipment. When that hum shifts even slightly, you need to know about it before bearings score or shafts warp. The Epro PR6423/000-000 proximity probe and its associated CON021 spare parts sit at the heart of that early warning system. Getting these components right, and sourcing them reliably, determines whether you catch a problem during a planned outage or scramble through an emergency shutdown.
How the Epro PR6423/000-000 Proximity Probe Actually Works

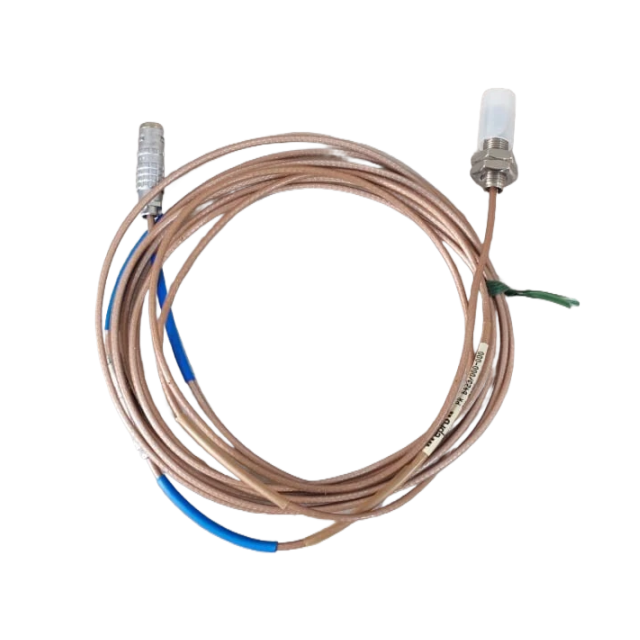

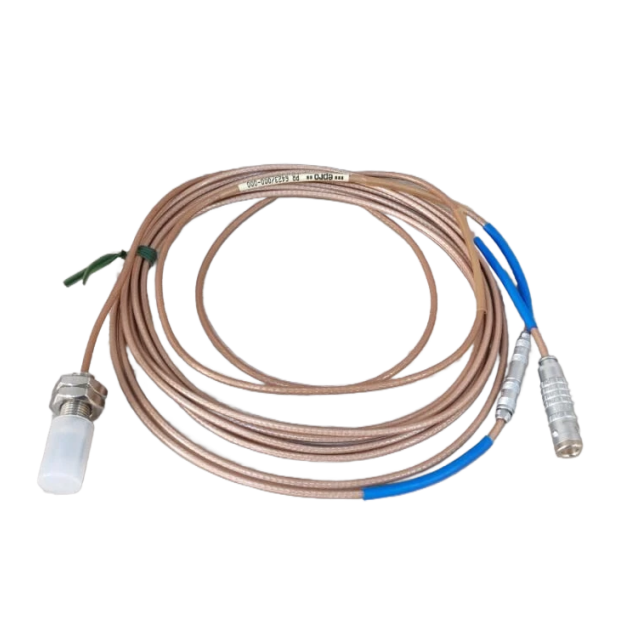

The Epro PR6423/000-000 is a non-contact inductive transducer built for continuous shaft vibration and displacement measurement. This Proximity Probe feeds real-time data on rotational and axial movements directly into your machine protection system. The operating principle centers on eddy currents. When the probe tip approaches a conductive shaft surface, it induces small circulating currents in the metal. These eddy currents create a magnetic field that opposes the probe’s own field, and the resulting change in impedance produces a voltage signal proportional to the gap distance.
That voltage signal travels to your vibration monitoring system, where algorithms flag deviations from baseline readings. A bearing starting to pit, a coupling going out of alignment, a rotor picking up an imbalance—these conditions show up as changes in vibration amplitude or phase before they become catastrophic. Steam turbines, gas generators, large compressors, and centrifugal pumps all rely on this measurement chain.
The probe body is stainless steel, built to survive the heat, oil mist, and mechanical vibration found in heavy industrial environments. This durability matters because replacing a failed probe often means taking a machine offline.
Technical Parameters That Matter for the Epro PR6423/000-000 Proximity Probe
Selecting the right proximity probe means matching its specifications to your machinery and operating conditions. The Epro PR6423/000-000 offers parameters tuned for precision displacement and vibration monitoring.
Feature
Specification (Typical)
Measurement Range
0.5 mm – 4.0 mm
Frequency Response
0 Hz – 10 kHz
Operating Temp.
-35°C to +120°C
Material
Stainless Steel
Output Signal
Voltage/Current
The measurement range defines the gap window where the probe produces accurate readings. Operating outside this range introduces nonlinearity. Frequency response determines which vibration frequencies the probe can capture accurately—the 10 kHz upper limit covers most rotating machinery speeds and their harmonics. Temperature ratings matter because probes mounted near turbine bearings or compressor seals face sustained heat exposure.
Sensor calibration establishes the relationship between gap distance and output voltage for your specific shaft material. Different alloys produce different eddy current responses, so calibration against the actual target surface ensures measurement accuracy over the probe’s service life.
Why CON021 Spare Parts Determine System Reliability

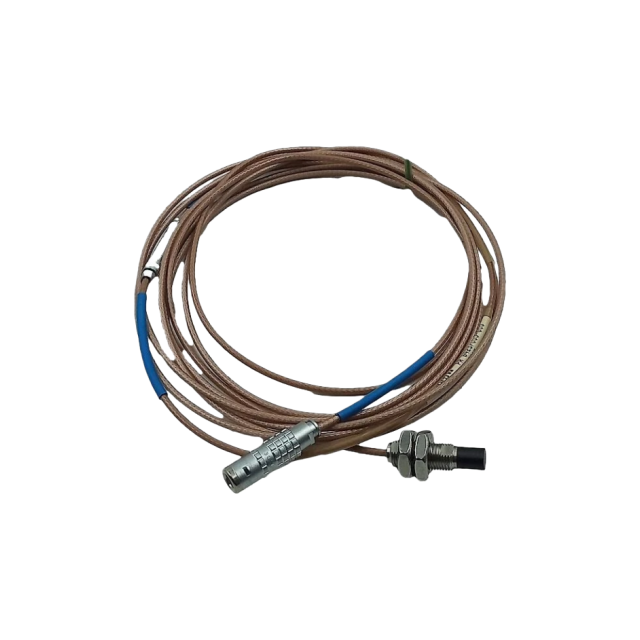

The probe itself is only one link in the measurement chain. CON021 spare parts—extension cables, connectors, and interface elements—carry the signal from the probe to your monitoring unit. A degraded cable or corroded connector introduces noise, attenuates the signal, or creates intermittent dropouts that look like false alarms or, worse, mask real problems.
Industrial environments attack these components constantly. Heat cycles expand and contract cable jackets. Moisture works into connector housings. Mechanical vibration fatigues solder joints and crimp connections. A cable that tested fine during commissioning can drift out of spec after a few years of service.
Replacing worn CON021 components before they fail prevents signal degradation and keeps your vibration data trustworthy. This proactive approach costs far less than troubleshooting phantom alarms or missing an actual bearing failure because the signal path was compromised. Genuine CON021 parts maintain the impedance matching and shielding integrity that the system design assumes.
Getting Epro Components Into Your Vibration Monitoring System
Integrating Epro PR6423 probes and CON021 spare parts into existing or new systems requires attention to several practical details.
System compatibility comes first. The probe’s output signal must match what your data acquisition and machine protection systems expect. Most modern systems accept the standard voltage or current outputs, but legacy installations sometimes need signal conditioning modules.
Sensor installation determines measurement quality. The gap between the probe tip and the shaft surface must fall within the specified measurement range, typically set during commissioning using feeler gauges or the probe’s own output. Mounting must be rigid—any relative motion between the probe and its bracket shows up as false vibration readings. Thread engagement, torque specifications, and locking mechanisms all matter.
Troubleshooting proximity probes follows a logical sequence: verify power supply, check cable continuity, confirm gap setting, and compare output against a known reference. Most problems trace back to cable damage or incorrect gap settings rather than probe failure.
Proper component integration reduces unscheduled downtime by catching problems early and avoiding false alarms that erode operator confidence in the monitoring system.
For situations involving older control systems, this article covers relevant considerations: DCS Migration or Legacy Parts Strategic Industrial Choices.
Sourcing Genuine Epro PR6423 and CON021 Parts Without the Risk
Counterfeit and substandard parts circulate through industrial supply chains more than most plant managers realize. A probe that looks correct but uses inferior materials or lacks proper calibration can produce readings that seem plausible but miss actual problems. A connector with poor shielding introduces noise that triggers nuisance alarms.
Partnering with distributors who maintain direct relationships with manufacturers and authorized channels protects against these risks. Joyoung International Trading Co., Limited maintains established relationships with product maintenance service providers globally, ensuring that Epro products and associated spare parts meet original specifications.
Supplier evaluation should include verification of component traceability, inspection of packaging and documentation, and where possible, functional testing before installation. The cost difference between genuine and questionable parts rarely justifies the risk to critical machinery.
Vibration monitoring represents one slice of the automation and control systems that keep industrial processes running. Joyoung International Trading Co., Limited supplies a broader range of components across multiple platforms.
The inventory includes PLC module systems, DCS card pieces, ESD system card pieces, and vibration monitoring system card pieces. Steam turbine control system modules and gas generator spare parts support power generation applications. Industries served include metallurgy, oil and gas, petrochemical, power generation, chemical processing, paper printing, and electronics manufacturing.
Allen Bradley, ICS Triplex, Schneider, GE, Siemens
1756-IM16I, T8461, 140DDI85300, IS210AEPSG2B
TSI System
Bently Nevada, Epro, ENTEK
3500/22M, MMS6110, EK C6622HS
This range means a single supplier can address multiple system needs, simplifying procurement and ensuring consistent quality standards across different component types.
Work With Joyoung for Reliable Industrial Components
For Epro PR6423 proximity probes, CON021 spare parts, and the broader range of industrial automation components your operations require, Joyoung International Trading Co., Limited offers the sourcing reliability and technical understanding that critical systems demand. Reach out at chen@htechplc.com or +86-181-5013-7565 to discuss your requirements or request pricing.
What specifications define the Epro PR6423/000-000 proximity probe?
The Epro PR6423/000-000 Proximity Transducer measures shaft vibration and displacement without physical contact. Its measurement range spans 0.5 mm to 4.0 mm, with frequency response from 0 Hz to 10 kHz covering most rotating machinery speeds. Operating temperature ratings extend from -35°C to +120°C, and the stainless steel construction handles harsh industrial conditions. These parameters make it a standard choice for Vibration Monitoring systems protecting turbines, compressors, and generators.
Where should I source CON021 spare parts?
Reliable CON021 spare parts come from distributors with verified supply chains and established manufacturer relationships. Joyoung International Trading Co., Limited specializes in genuine industrial automation components, including CON021 cables and connectors. Their global network of product maintenance service providers ensures authenticity and supports rapid delivery when equipment needs attention.
How does the Epro PR6423 probe connect to existing monitoring systems?
The Epro PR6423 proximity probe uses standardized voltage or current outputs compatible with most industrial vibration monitoring and machine protection systems. Integration requires matching the output signal type to your data acquisition hardware, setting the proper gap between probe tip and shaft surface, and ensuring rigid mounting. Calibration against the actual shaft material establishes accurate measurement. Signal conditioning modules bridge compatibility gaps with older systems.
What makes vibration monitoring worth the investment?
Vibration monitoring catches mechanical problems—bearing wear, shaft imbalance, misalignment, looseness—while they’re still minor and correctable. A proximity probe like the Epro PR6423 provides continuous data that reveals developing faults weeks or months before failure. This lead time allows maintenance during planned outages rather than emergency shutdowns. The cost of monitoring equipment and spare parts is small compared to the expense of catastrophic bearing failures, damaged shafts, or extended production losses.
Which industries rely most heavily on these automation components?
Industries running continuous processes with rotating equipment gain the most from reliable automation spare parts. Oil and gas facilities, petrochemical plants, power generation stations (both steam and gas turbine), metallurgical operations, chemical processing, paper mills, and electronics manufacturing all depend on PLC modules, DCS cards, ESD systems, and vibration monitoring components. These sectors cannot tolerate unplanned downtime, making dependable spare parts supply from suppliers like Joyoung International Trading Co., Limited a operational necessity.
