Specifications

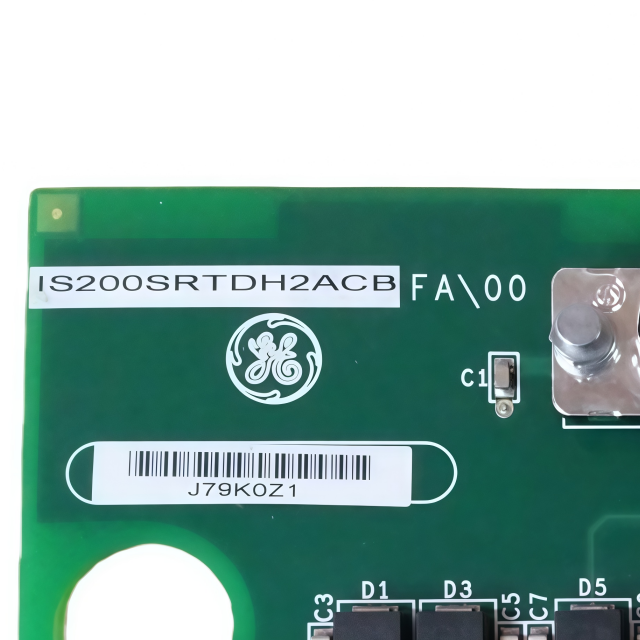

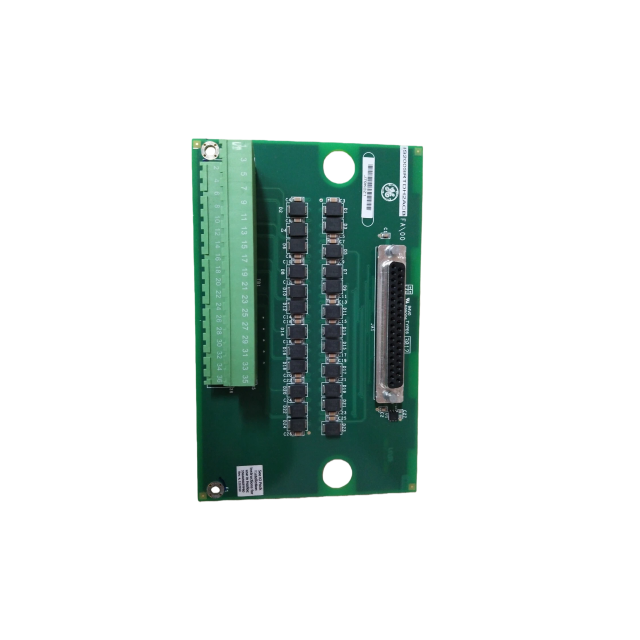

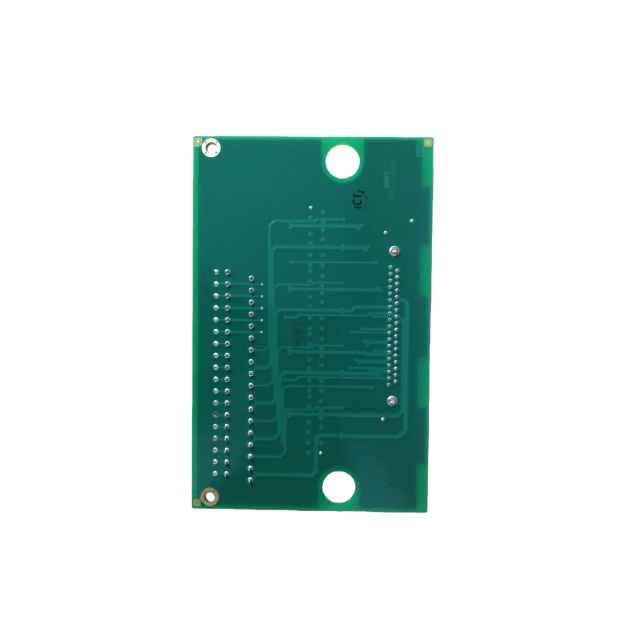

Part Number:IS200SRTDH2ACB
Manufacturer: GE
Series:Mark VIe (for Industrial Turbine & Generator Control Systems)
Product Type: RTD Terminal Board (Integrated Wiring Termination)
Availability: In Stock
Dimensions:21.5 cm x 9.8 cm x 3.2 cm
Weight:0.55 KG
Country of Manufacture: United States (USA)
Functional Description
RTD Signal Termination & Routing
Provides dedicated termination points for multiple RTD sensors (compatible with PT100, PT1000, and other standard RTD types), eliminating the need for external junction boxes. Organizes wiring from field sensors to the Mark VIe controller, reducing cable clutter and minimizing signal loss—ensuring consistent electrical connectivity for temperature measurement.
Signal Conditioning & Noise Suppression
Incorporates built-in signal conditioning circuits and EMI (Electromagnetic Interference) shielding to filter electrical noise and interference common in industrial environments (e.g., from high-voltage equipment, motor drives). Stabilizes raw RTD resistance signals, converting them into clean, standardized inputs for the Mark VIe controller, which directly improves temperature measurement accuracy.
System Integration & Compatibility
Seamlessly interfaces with the Mark VIe control system backplane and I/O modules (e.g., IS200IOCCH1A), enabling plug-and-play integration without specialized adapters. Transmits conditioned RTD signals to the controller for real-time temperature monitoring and control logic execution, supporting system-wide temperature-based protection and optimization of turbine/generator operations.
Wiring Flexibility & Error Reduction
Features clearly labeled terminal blocks and standardized wiring configurations (3-wire, 4-wire RTD compatibility) to simplify installation and reduce wiring errors. Accommodates diverse RTD sensor wiring requirements, adapting to both short-distance and long-distance sensor placements in industrial facilities.
Diagnostic Support & Fault Detection
Facilitates system-level diagnostics by providing continuity checks for RTD wiring and sensor connections. Works in tandem with the Mark VIe controller to detect open circuits, short circuits, or faulty sensor connections, triggering alarms for quick troubleshooting—minimizing downtime for critical temperature monitoring applications.
Characteristics
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F), suitable for extreme industrial environments (power plants, turbine enclosures, offshore facilities).
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
