Basic Identification
Basic Info | Manufaturer/Brand: GE |
Part number: IS420UCSBH4A |
Payment Method: T/T |
Original new: Brand New |
MOQ: 1 PC |
Country of Origin: USA |
Shipping from: Xiamen city, Fujian Province |
Key Information

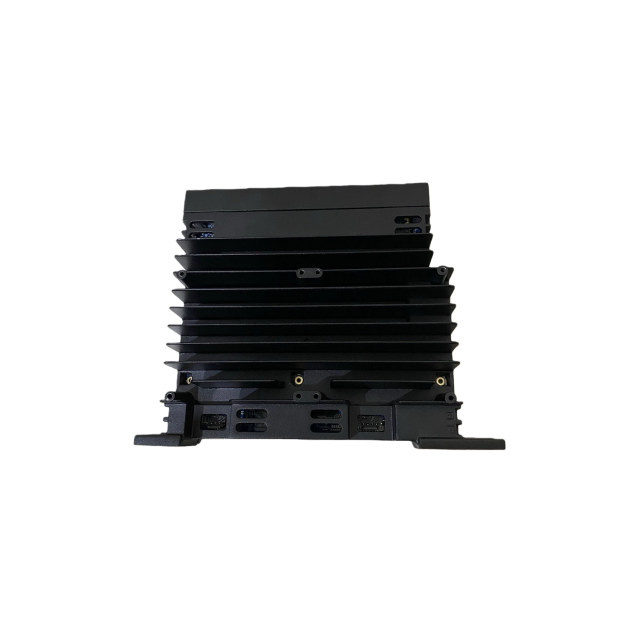

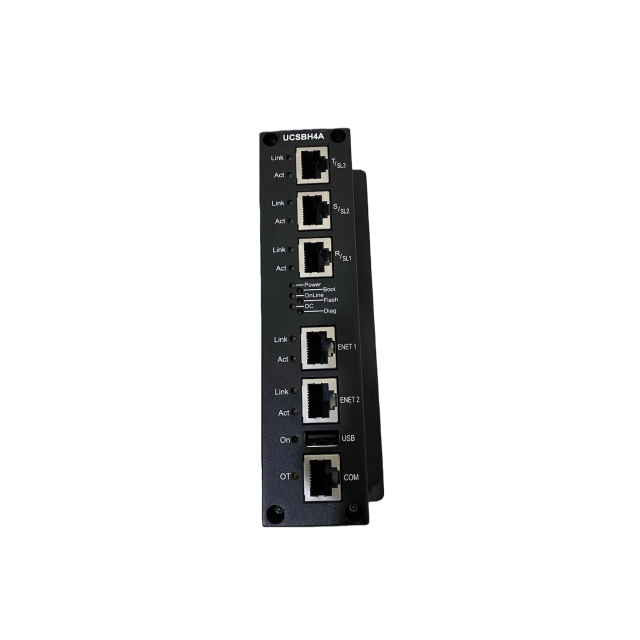

●Basic Identity: Mark VIe controller for GE’s Mark VIe/Mark VIeS Control Systems, featuring a 1066
MHz EP80579 Intel processor, compatible with hazardous (classified) locations.
●Electrical Specifications: Power supply 27.4–28.6 V dc (nominal 28.0 V dc), maximum current 1.1 A dc.

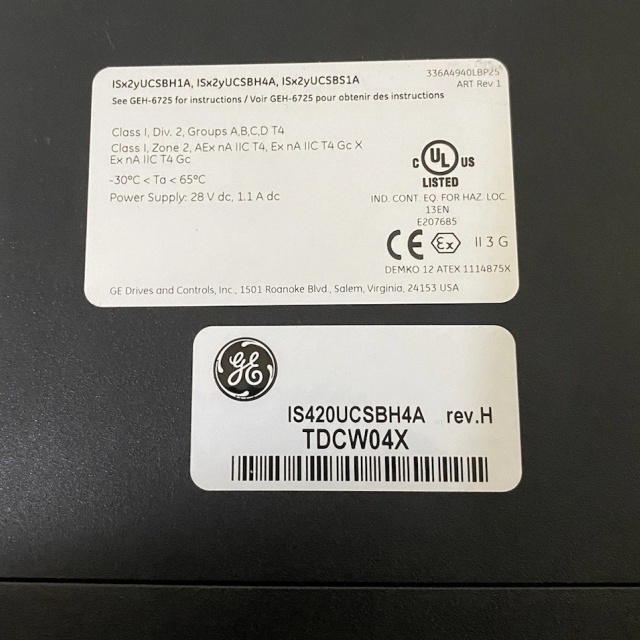

●Hazardous Location Compliance: UL E207685 certified; compliant with Class I, Division 2 (Groups A-
D, T4), Class I, Zone 2 (AEx nA IIC T4, Ex nA IIC T4 Gc X), and ATEX Zone 2 (Ex nA IIC T4 Gc).
●Applicable Standards: Non-hazardous (UL 508 Ed. 17, CSA-C22.2 No. 142-M1987); hazardous
(ANSI/ISA-12.12.01-2015, CAN/CSA-C22.2 No. 213-15); Zone 2 (UL 60079-0 Ed. 5, UL 60079-15 Ed. 3);
ATEX (EN 60079-0:2012, EN 60079-15:2010).
●Ambient Temperature: Operating range -30 to +65 °C (-22 to +149 °F).
●Installation Requirements: Installed in an IP54+ tool-accessible enclosure, compliant with Pollution
Degree 2 (EN 60664-1); wiring uses copper conductors (22–12 AWG for barrier-type terminals, 24–12
AWG for euro-style) with specified torques.
●Safety & Operation: No hot-swapping in energized hazardous areas; component substitution may
affect Class I, Division 2 suitability; maintenance by trained personnel with lockout/tagout procedures.
●Compatibility: Works with GE power distribution boards (e.g., ISxxxJPDHG1A), Mark VIe I/O modules,
and ToolboxST software for configuration; integrates into the ProSafe-RS safety control ecosystem.
