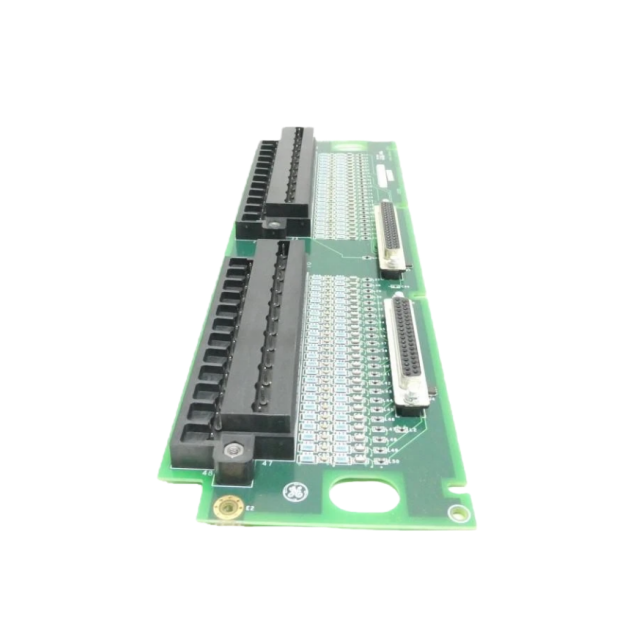

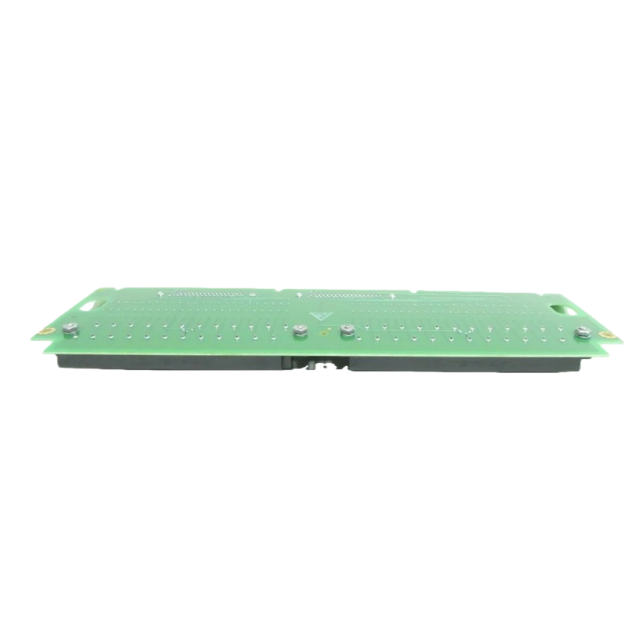

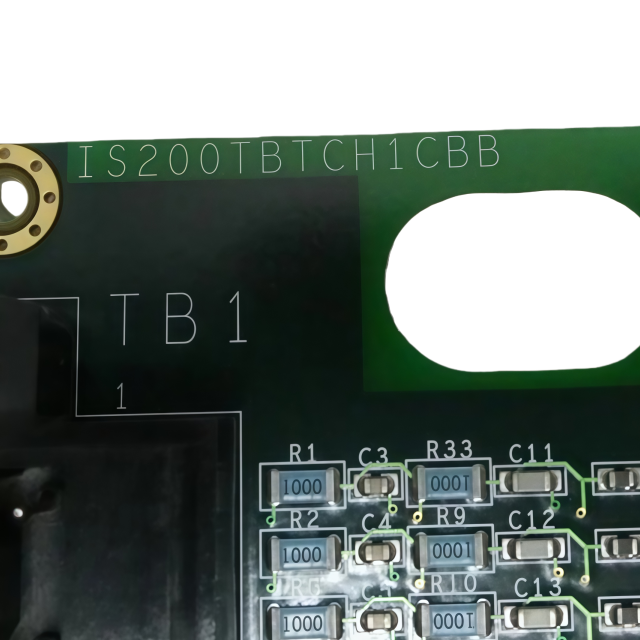

GE IS200TBTCH1CBB Pcb Circuit Board

Hazardous Location Compliance: Certified for intrinsic safety “ic” protection, compatible with Class I, Division 2 (Groups A, B, C, D) and Class I, Zone 2 (Group IIC) hazardous locations, plus ATEX Zone 2 (Group IIC) approval. It limits electrical energy to prevent ignition of flammable gases/vapors, ensuring safe operation in explosive environments.

Thermocouple Signal Support: Specialized for processing low-voltage thermocouple input signals (range: -8 to +45 mV DC), compatible with standard industrial thermocouple types (e.g., Type K, J, T, E). It maintains signal integrity for precise temperature measurement, even with millivolt-level input variations.

Barrier-Type Terminal Blocks: Equipped with industrial-grade barrier-type terminal blocks, supporting 22–12 AWG copper conductors. Compliant with strict wiring torque standards (1.1 Nm / 9.6 in-lb) for secure, vibration-resistant connections—critical for preventing signal degradation in harsh industrial settings.

System Compatibility: Exclusively paired with Mark VIe thermocouple input I/O packs (IS220PTCCH1A, IS220PTCCH1B) and Mark VIeS safety thermocouple input I/O packs (IS220YTCCS1A). Ensures seamless integration via GE’s proprietary signal routing and power protocols for thermocouple signal conditioning.

Environmental Durability: Features a robust design with optional conformal coating (for harsh environments) to resist moisture, dust, and industrial contaminants. Operates within a wide ambient temperature range of -30 °C to +65 °C (-22 °F to +149 °F), maintaining stable performance in extreme field conditions.

Intrinsic Safety Signal Isolation: Incorporates signal isolation and filtering circuitry to suppress electromagnetic interference (EMI) and radio-frequency interference (RFI) from nearby power cables or industrial equipment—critical for preserving the accuracy of low-voltage thermocouple signals.
