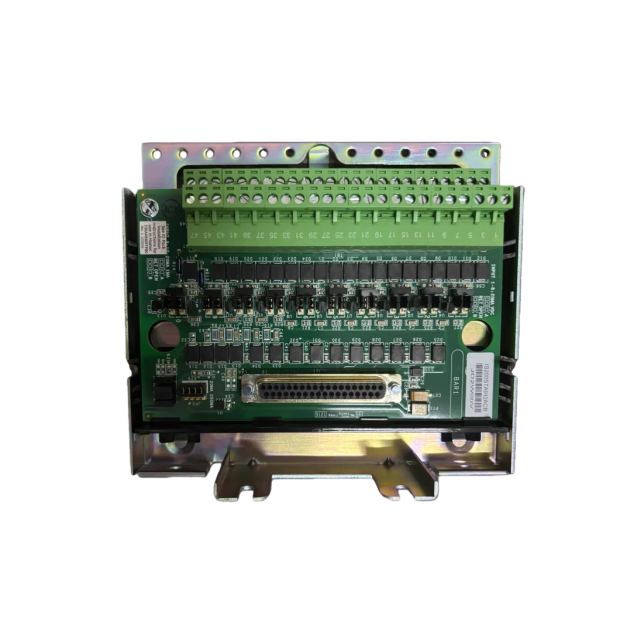

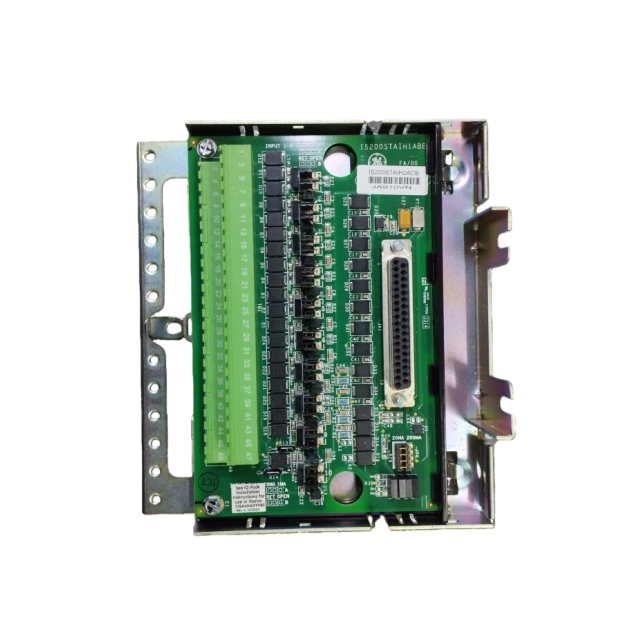

GE IS200STAIH2ACB Analog I/O Terminal Board

Analog Inputs and Outputs: The board accommodates 10 analog inputs and two analog outputs. These inputs can handle various types of transmitters, including two-wire, three-wire, four-wire, or externally powered transmitters.

Output Configuration: The two analog outputs are typically set to a range of 0-20 mA. However, one of the outputs can be jumper configured to support a wider range of 0-200 mA current output.

Simplex Configuration: The board is available only in a simplex version, meaning it operates independently without redundant counterparts. While redundancy is not provided at the board level, overall system redundancy may be achieved through other means.

Terminal Blocks: The board features high-density Euro-block type terminal blocks for secure and reliable connections. These terminal blocks ensure easy and efficient wiring of analog inputs and outputs.

On-board ID Chip: An on-board identification (ID) chip is integrated into the STAI board. This chip plays a crucial role in system diagnostics by identifying the board to the

Programmable Analog Input Controller (PAIC). It provides essential information such as the board's serial number, type, revision number, and connector location, facilitating effective troubleshooting and maintenance.
