IS400JGPAG1ACD Advantages

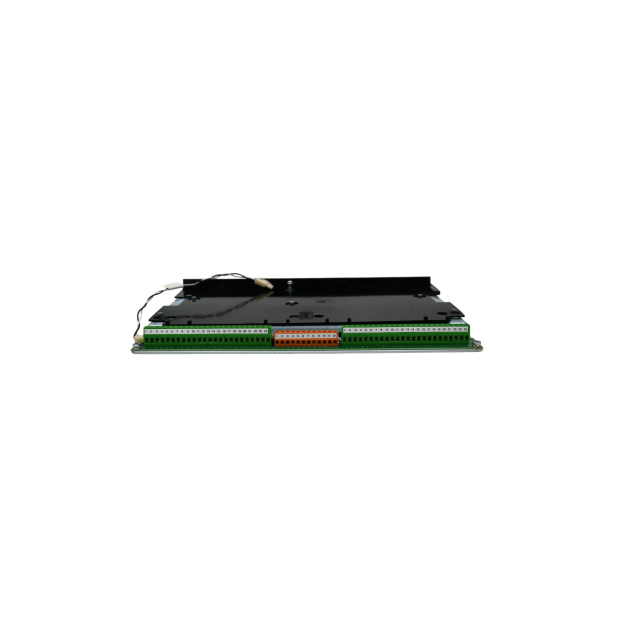

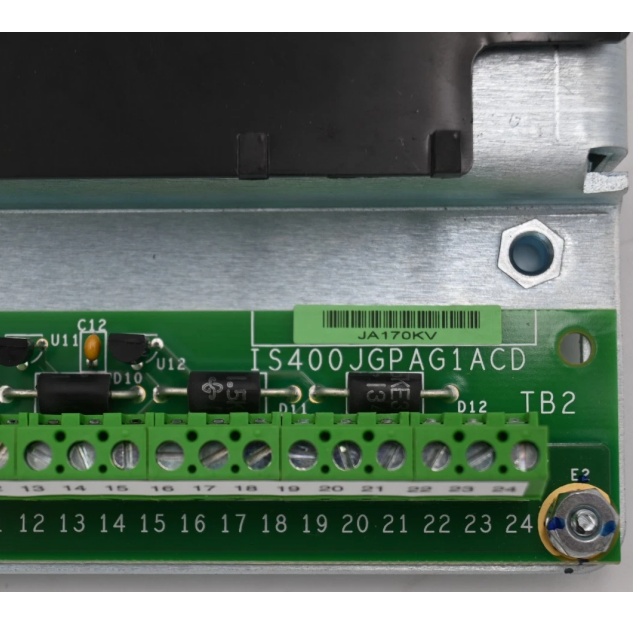

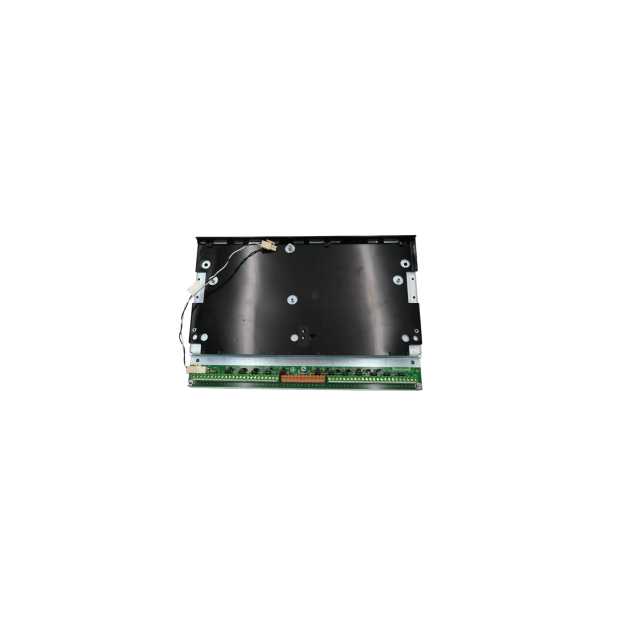

GE IS400JGPAG1ACD Analog IN/OUT Board provides integrated, high-reliability analog signal collection and output solutions for GE Mark VI turbine control systems. The triple redundant signal backup architecture realizes automatic seamless switching during single channel abnormal operation; signal distortion or circuit fault of one analog loop will not interfere with the overall signal acquisition accuracy and unit control stability of the turbine system, fully complying with strict SIL safety operation standards for large power generation equipment. Equipped with industrial high-precision signal conditioning chips, the board features ultra-low signal attenuation and wide signal compatibility, capable of adapting to multiple types of field sensor and actuator analog signals without additional signal conversion adapters, effectively simplifying on-site wiring construction and reducing system failure points. All analog signal input and output channels adopt full differential electrical isolation design to isolate interference coupling between the control rack and on-site high-power industrial equipment, significantly improving the overall anti-interference performance of the Mark VI safety control station. Multi-layer surge, over-temperature and overload protection circuits are integrated into the board; once power supply drift, circuit overload or internal chip overheating occurs, the system will independently lock the faulty analog channel without affecting the normal operation of other signal loops, avoiding permanent burnout of IS400JGPAG1ACD analog I/O board and matched rack hardware. The comprehensive full-board real-time self-diagnosis function can rapidly locate hidden faults including analog channel disconnection, signal conditioning chip abnormality, backplane bus communication interruption and input power fluctuation, greatly shortening the troubleshooting cycle of turbine analog signal acquisition system faults. This analog input/output board boasts outstanding adaptability to harsh industrial environments. High-temperature impact resistant PCB base material and durable industrial electronic components maintain long-term full-load continuous operation in dusty, high-temperature and vibration-prone turbine control cabinets, slowing the aging rate of core internal components and extending the overall service life of the circuit board. The full-coverage thick metal shielding layer suppresses intense external electromagnetic radiation generated by high-voltage power distribution cabinets, frequency converters and large rotating machinery, ensuring distortion-free stable transmission of analog signals and continuous reliable operation of the entire Mark VI control rack. The exclusive Mark VI backplane bus interface is fully compatible with all Mark VI series universal controller modules, power distribution modules, servo valve control boards and turbine protection boards, requiring no additional signal conversion adapters during system expansion or reconstruction. Independent analog input, analog output and fault status indicator lamps are arranged on the front panel, supporting online analog signal loop inspection without full turbine unit shutdown, simplifying signal loop debugging and spare analog board replacement workflows. Its compact plug-in structure maximizes the utilization of limited internal cabinet installation space. All IS400JGPAG1ACD analog IN/OUT boards are manufactured in strict accordance with GE Mark VI turbine industrial production standards and comply with IEC61508 power equipment safety specifications. Every circuit board undergoes long-term temperature cycle testing, vibration durability testing, full analog channel calibration and continuous load aging testing before factory delivery. Multi-stage cascaded electrical safety protection covers all signal conditioning circuits, terminal wiring circuits and backplane bus communication circuits, fully satisfying stringent continuous power generation safety control requirements of gas and steam turbine power plants.
