Industrial machinery speaks a language most people never hear. The subtle shift in a bearing’s vibration signature, the faint harmonic that signals a developing imbalance — these are the whispers that precede catastrophic failure. The Emerson CSI 6500 system exists to translate these signals into actionable intelligence before a minor anomaly becomes a production-stopping event. Having worked with these modules across refinery turnarounds and power plant commissioning projects, I’ve come to appreciate how the A6110, A6120, and A6370D each contribute something distinct to the overall monitoring architecture. What follows is a practical breakdown of how these components function and why their authenticity matters more than most procurement teams realize.
How the Emerson CSI 6500 System Fits Together
The Emerson CSI 6500 operates as an integrated online machinery protection and condition monitoring platform. It combines vibration monitoring technology with process control integration to deliver continuous surveillance of rotating equipment. Compressors, turbines, pumps, and fans — the system watches them all, collecting data around the clock and flagging deviations before they escalate.
The architecture follows a modular philosophy. Sensor input modules capture raw signals. Processing modules analyze that data and generate alarms. Power modules keep everything running without interruption. This separation of functions allows plant engineers to configure systems that match their specific asset criticality and monitoring depth requirements.
Oil and gas facilities, petrochemical plants, and power generation stations rely heavily on this platform. The common thread across these industries is the cost of unplanned downtime. A single compressor trip in a refinery can cascade into millions in lost production. The CSI 6500 exists to prevent exactly that scenario.

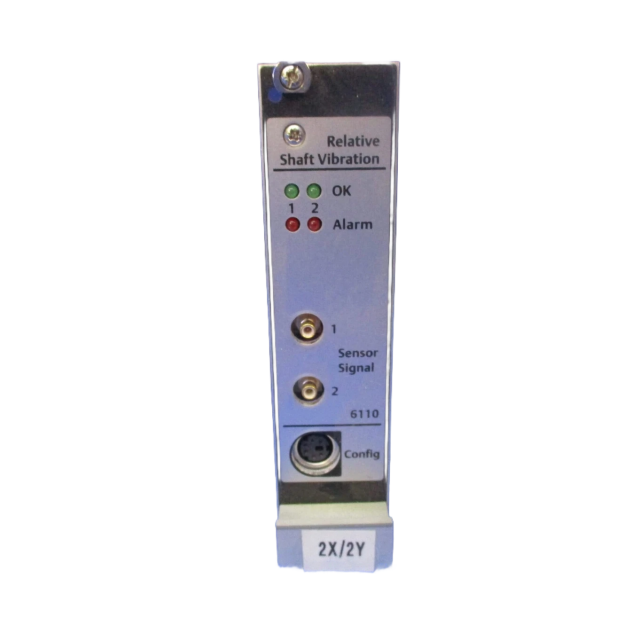

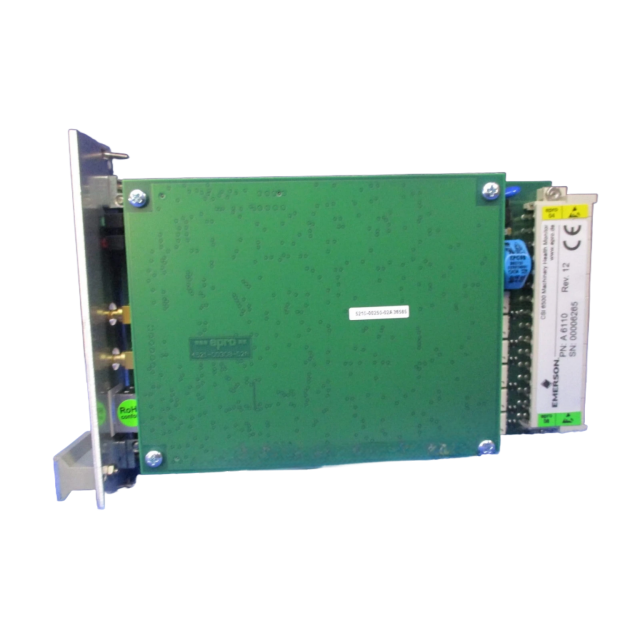

The A6110 Module Captures What Sensors Detect
The Emerson A6110 module handles the critical first step in the monitoring chain: acquiring raw vibration data from field sensors. Accelerometers mounted on bearing housings, proximity probes tracking shaft position, velocity transducers measuring case motion — all feed their signals into this module.
Signal fidelity at this stage determines everything downstream. A noisy or attenuated input produces unreliable analysis. The A6110 addresses this with high-impedance inputs that preserve signal integrity and 24-bit analog-to-digital conversion that captures the full dynamic range of machinery vibration.
Feature
Specification
Input Channels
Up to 4 differential or 8 single-ended
Sensor Compatibility
Accelerometers, Velocity, Proximity Transducers
Frequency Range
DC to 40 kHz
Input Impedance
High impedance for accurate signal integrity
Data Resolution
24-bit A/D conversion
Environmental
-20°C to +65°C operating temperature
The frequency range deserves attention. Extending from DC to 40 kHz means the module can capture both slow-speed machinery signatures and high-frequency defect patterns like bearing race faults. The operating temperature tolerance reflects the reality that these modules often sit in outdoor enclosures or poorly ventilated equipment rooms.
The A6120 Module Turns Raw Data Into Decisions
Raw vibration waveforms contain information, but not insight. The Emerson A6120 module bridges that gap through signal processing and communication functions that transform sensor data into diagnostic intelligence.
Fast Fourier Transform analysis breaks time-domain signals into frequency components. This reveals the spectral fingerprint of each machine — the characteristic frequencies of shaft rotation, blade pass, gear mesh, and bearing defects. The A6120 compares these patterns against baseline signatures and alarm thresholds, generating alerts when deviations exceed acceptable limits.
Communication capabilities matter as much as processing power. The A6120 interfaces with plant-wide control systems including PLCs and DCS platforms. This integration means vibration alarms can trigger automated responses: load shedding, protective shutdowns, or operator notifications through the same HMI screens used for process control.
Real-time monitoring depends on this module functioning reliably. When the A6120 processes data correctly, maintenance teams receive actionable information. When it fails, critical machinery runs blind.

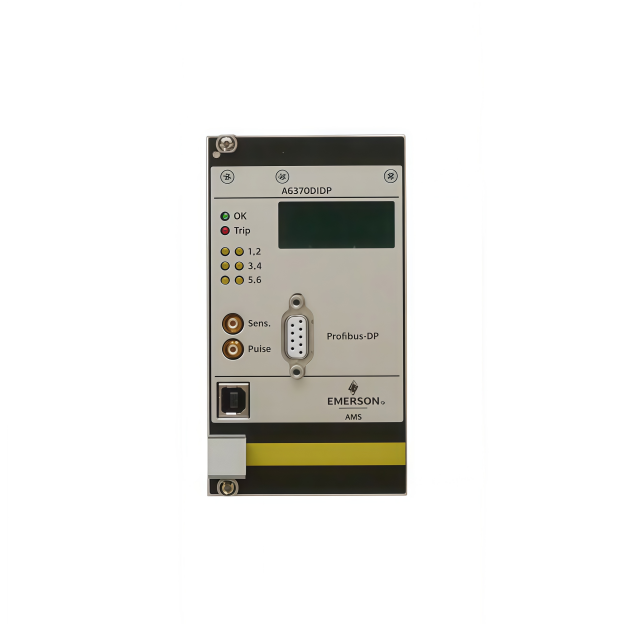

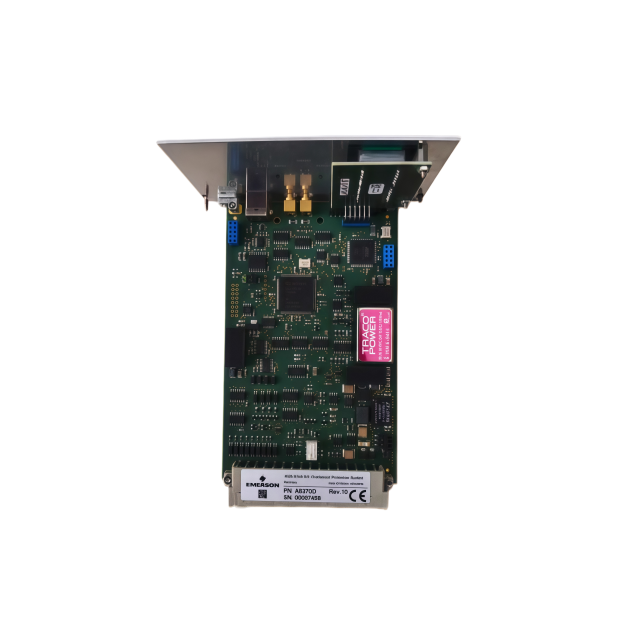

Monitoring systems that lose power lose data. Worse, they lose visibility into machinery health during exactly the conditions — electrical disturbances, grid instability — that often precede mechanical problems. The Emerson A6370D power supply module addresses this vulnerability.
The A6370D delivers regulated DC power to all system components while filtering out the voltage fluctuations and transients common in industrial electrical environments. Switching power supplies, variable frequency drives, and large motor starts create electrical noise that can corrupt sensitive analog measurements. The A6370D isolates the monitoring system from these disturbances.
Redundancy options exist for critical applications. Dual power feeds with automatic failover ensure that a single power supply failure doesn’t blind the entire monitoring system. This matters most in continuous process industries where even brief data gaps can mask developing faults.
Genuine Parts Versus the Alternatives
The market for industrial spare parts includes a troubling volume of counterfeit and gray-market components. For commodity items like fasteners or gaskets, the consequences of substitution are usually minor. For precision electronics like the A6110, A6120, and A6370D modules, the stakes are considerably higher.
Counterfeit modules may appear identical externally while containing inferior components internally. Cheaper capacitors, lower-grade analog-to-digital converters, inadequate thermal management — these shortcuts manifest as drift, noise, and premature failure. The monitoring system continues to produce numbers, but those numbers no longer reflect reality.
Feature
Genuine Parts
Counterfeit Parts
Performance
Guaranteed, optimal
Unpredictable, often suboptimal
Reliability
High, consistent
Low, prone to failure
Warranty/Support
Full manufacturer support
None, voided warranties
System Compatibility
Perfect fit and function
Poor fit, potential damage
Safety
Certified, compliant
Uncertified, potential hazards
Longevity
Extended equipment lifespan
Reduced lifespan, frequent replacement
Authentic Emerson modules undergo factory testing against documented specifications. They carry traceable serial numbers and qualify for manufacturer technical support. When a genuine module fails — and all electronics eventually fail — the failure mode is predictable and the replacement path is clear.
Finding Reliable Sources for These Modules
Procurement teams face pressure to minimize costs, and the price difference between genuine and questionable parts can be substantial. The calculation changes when you factor in the cost of a missed bearing failure or a false alarm that triggers an unnecessary shutdown.
Joyoung International Trading Co., Limited maintains inventory of genuine Emerson CSI 6500 components including the A6110, A6120, and A6370D modules. The company specializes in industrial automation spare parts across multiple platforms and manufacturers, with particular depth in PLC, DCS, and vibration monitoring systems.
Supply chain reliability matters for these components. When a module fails during a planned outage, replacement lead time directly impacts how long the plant runs without protection. Established suppliers maintain stock positions that enable rapid response to urgent needs.
The Emerson CSI 6500 system represents a significant investment in machinery protection. The A6110 captures the raw signals that make analysis possible. The A6120 transforms those signals into diagnostic information and integrates with plant control systems. The A6370D ensures the entire system operates continuously regardless of electrical disturbances.
Each module serves a specific function, and each function depends on the others. A precision sensor input module feeding a compromised processor produces unreliable results. A capable processor starved of clean power produces intermittent results. The system works as designed only when all components meet their specifications.
Authentic spare parts maintain that design intent over the system’s operational life. The initial cost premium pays dividends in measurement accuracy, system availability, and diagnostic confidence.
Maintain Your Vibration Monitoring Investment
For expert guidance on Emerson CSI 6500 A6110, A6120, and A6370D modules, connect with Joyoung International Trading Co., Limited. Our inventory and technical knowledge support your machinery protection requirements. Contact us at chen@htechplc.com or +86-181-5013-7565 to discuss your specific needs.
Frequently Asked Questions About Emerson CSI 6500 Modules
What specific role does each module play in the CSI 6500 system?
The A6110 module acquires raw vibration signals from field sensors with 24-bit resolution and frequency response to 40 kHz. The A6120 module processes those signals using FFT analysis, generates alarms, and communicates with plant control systems. The A6370D module supplies regulated power while protecting the system from electrical disturbances. Each module handles a distinct function that the others depend on.
How does continuous vibration monitoring prevent equipment failures?
Rotating machinery develops characteristic vibration signatures as components wear. Bearing defects produce specific frequency patterns. Imbalance creates synchronous vibration at running speed. Misalignment generates harmonics. The CSI 6500 tracks these patterns continuously, detecting changes that indicate developing problems weeks or months before catastrophic failure. This lead time allows maintenance teams to schedule repairs during planned outages rather than responding to emergencies.
Why does parts authenticity matter for monitoring system accuracy?
Vibration analysis depends on precise measurements. A 24-bit analog-to-digital converter in a genuine A6110 module captures subtle signal variations that a 16-bit counterfeit component would miss. Inferior capacitors in a counterfeit A6370D module allow power supply noise to contaminate measurements. The monitoring system continues to produce data, but that data no longer accurately represents machinery condition. Genuine parts ensure the measurements remain trustworthy.
