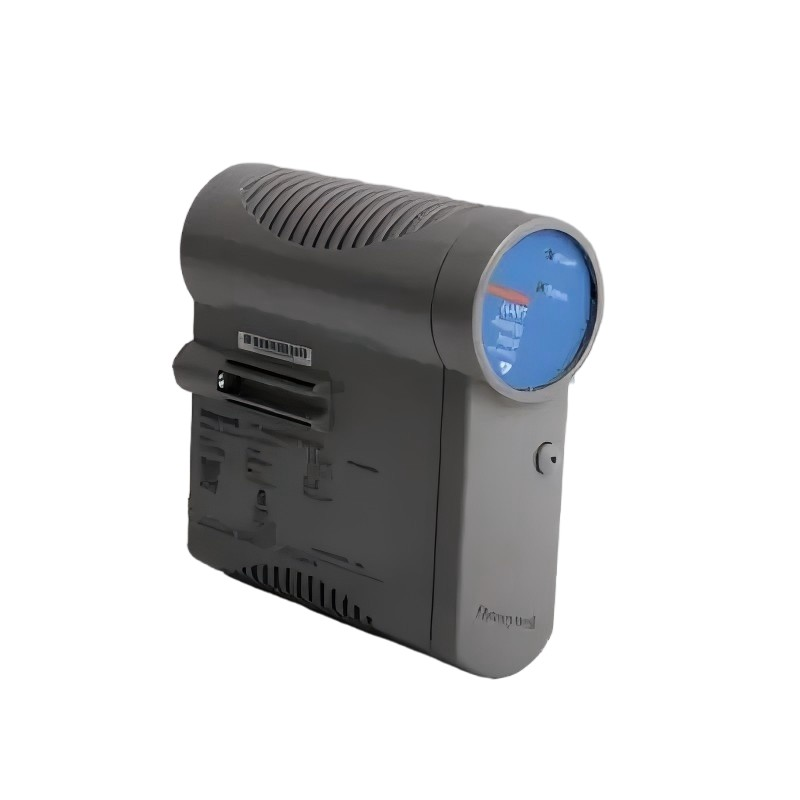

>> Key Advantages & Features
16-Channel Independent Control
Featuring 16 isolated output channels, each capable of independent configuration and operation, the module supports simultaneous control of multiple process variables. This design reduces system complexity by eliminating the need for multiple single-channel modules, cutting installation space by up to 40% in control cabinets—ideal for large-scale plants with dense I/O requirements.
High-Precision Signal Output
Delivers 4-20 mA output signals with ±0.05% full-scale linearity and ±0.35% calibration accuracy at 25°C. Even in temperature fluctuations (-40°C to 70°C), its temperature drift remains as low as 0.005%/°C, ensuring stable control of critical processes like flow regulation in petroleum pipelines or pressure management in chemical reactors.
HART Protocol Integration
Built-in HART communication enables two-way data exchange between the module and HART-enabled field devices. This allows remote calibration, diagnostics, and parameter adjustment without interrupting operations, reducing maintenance downtime by 30% compared to non-HART modules.
Enhanced Safety & Reliability
Supports channel-level "Failopt" configuration, allowing users to set each channel to either hold the last value or switch to a predefined safe state during faults. Additionally, it features open-circuit detection with real-time alerts, ensuring rapid response to wiring issues in safety-critical applications like pharmaceutical batch processing.
Redundancy Support
Compatible with redundant system architectures, the module can be paired with a backup unit for seamless failover. This design achieves 99.999% availability, making it suitable for uninterrupted processes such as power plant turbine control or continuous chemical production.
>> Technical Parameters
Parameter | Specification |
Output Type | 4-20 mA DC |
Number of Channels | 16 isolated channels |
Linearity | ±0.05% of full scale |
Calibration Accuracy (25°C) | ±0.35% of full scale (including linearity) |
Temperature Drift | 0.005% of full scale/°C |
Maximum Load Resistance | 800 Ω (with 24 V DC power supply) |
Response Time | <80 ms (settles to ±1% of final value) |
Communication Protocol | HART |
Operating Voltage | 22-28 V DC |
Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity Resistance | 5%-95% RH (non-condensing) |
Dimensions (L×W×H) | 263mm × 58mm × 28mm (10.36" × 2.28" × 1.10") |
Weight | 540g (1.19 lbs) |
Certifications | CE, RoHS |
>> Product Uses
1. Chemical Process Control
Regulates valve positions in reactor feed systems, controlling reactant flow rates with precise 4-20 mA signals. Ensures consistent reaction conditions, critical for batch quality in polymer or pharmaceutical production.
2. Oil & Gas Pipeline Management
Controls pressure regulators and flow control valves in crude oil or natural gas pipelines. Maintains stable pressure levels to prevent leaks and optimize throughput in long-distance transmission networks.
3. Power Generation Systems
Adjusts turbine steam inlet valves and boiler feedwater flow in thermal power plants. Enables fine-tuning of power output to match grid demand, improving energy efficiency by up to 5%.
4. Water Treatment Facilities
Controls chemical dosing pumps and filtration system valves. Maintains precise chlorine levels or pH balance in water treatment processes, ensuring compliance with environmental regulations.
5. Manufacturing Automation
Regulates speed of conveyor belts and robotic arm movements in automotive or electronics assembly lines. Ensures synchronized production sequences, reducing product defects by enhancing process repeatability.
