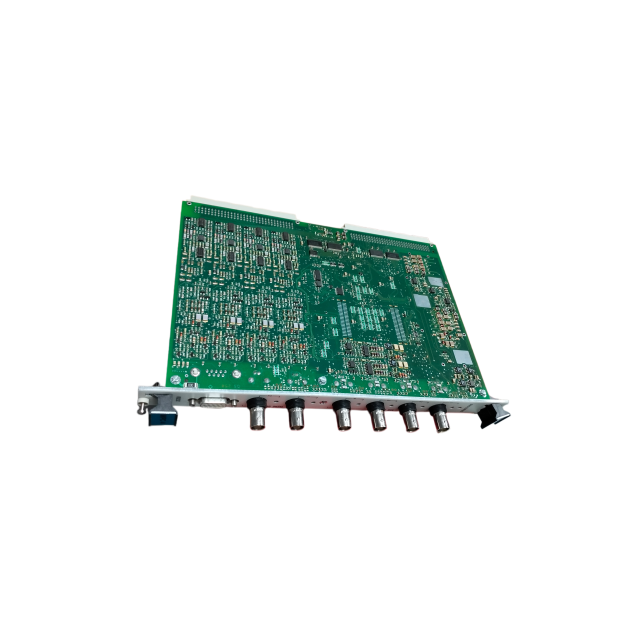

The Vibro-Meter MPC4 200-510-017-017 machinery protection card is the core of many critical rotating equipment safety loops. While software configuration and threshold settings get most of the attention, the physical layer—specifically how the card is mounted on the DIN rail and connected to the ground system—determines long-term signal integrity and false trip immunity. Field experience consistently shows that a loosely clipped module or a floating ground reference can inject enough noise to mimic a valid vibration spike, forcing an unnecessary shutdown.
This article covers the installation fundamentals that every panel builder and maintenance engineer should follow. We focus on the mechanical and electrical interface between the MPC4 200-510-017-017, the 204-040-100-011 system rack, the DIN rail, and the grounding scheme, explaining why each step matters for measurement accuracy.
Mechanical Mounting: More Than Just Clipping On
The MPC4 module is designed to slide into the 204-040-100-011 rack or a compatible backplane assembly. What is often overlooked is that the entire rack structure itself must be rigidly fixed to a well-prepared DIN rail before any module insertion.
DIN Rail Selection
Use a standard 35 mm × 7.5 mm or 35 mm × 15 mm EN 60715 DIN rail with a corrosion-resistant surface treatment. For installations in high-humidity environments, such as cooling towers or offshore platforms, stainless steel rails are preferred. Avoid aluminum rails in areas with significant vibration; the softer metal can deform over time, loosening the mounting clamps.
Rack Fixing
The 204-040-100-011 rack typically uses multiple DIN rail clamps along its backplane. Distribute clamps evenly so the rack does not bow in the middle. A rack that is bent by even a few millimeters can cause misalignment when inserting modules, putting stress on the card-edge connectors and potentially causing intermittent contact.
Check that all clamps are torqued to the manufacturer’s recommendation. Loose clamps allow the entire rack assembly to vibrate with the cabinet structure. At certain machine speeds, this creates a mechanical resonance that the MPC4’s onboard sensors cannot distinguish from actual shaft vibration.
Module Insertion Force
Inserting the MPC4 200-510-017-017 into the rack should require firm but even pressure. If you feel resistance or the module does not seat fully without excessive force, stop. Remove the module and inspect both the card guide rails and the backplane connector for debris, bent alignment pins, or signs of corrosive attack. Forcing a module can crack the PCB or break solder joints on the backplane socket.
Grounding Standards: The Signal-to-Noise Foundation
The MPC4 measures vibration signals in millivolt ranges. Small ground potential differences between cabinets, or between the sensor field wiring and the rack, can overwhelm these signals. A well-planned grounding system is not optional.
Protective Earth (PE) vs. Signal Ground (SG)
The DIN rail usually serves as the protective earth (PE) conductor and provides mechanical support. The MPC4 derives its signal reference from the backplane, which in turn receives chassis ground through the rack power connections. These two ground paths—PE through the rail and chassis ground through the power supply—must be bonded at a single, clearly identified earth bar inside the panel.
Do not assume that simply bolting the rack to a painted or anodized rail creates an adequate ground path. A dedicated green/yellow ground wire from the rack’s marked ground stud to the PE bar is mandatory. The rail itself is not a conductor for signal frequencies; relying on it as the only ground return invites ground loops.
Star Point Grounding
Run separate ground conductors from each 204-040-100-011 rack back to the main cabinet earth bar. Tee-connections or daisy-chaining ground wires between racks creates shared impedance paths. When current from one module’s relay output or power supply flows through the same wire used as a signal reference for another module, a voltage drop appears in series with your vibration inputs. This is a classic cause of shifting gap voltage readings and unexplained OK limit violations.
Shield Termination
All sensor signal cables entering the rack should have their shields terminated at the designated shield terminals or clamps provided near the input connectors. Do not twist the shield into a pigtail and crimp it under a random screw. The shield drain connection must be short, direct, and preferably 360-degree bonded if using cable glands. A long pigtail acts as an antenna for MHz-range noise from nearby VFDs, which can alias down into the MPC4’s measurement bandwidth.
Isolated vs. Grounded Signal Wiring
The MPC4 inputs are typically designed for floating or single-ended connections. Confirm whether your specific factory configuration uses an isolated input stage. If the sensor signal negative is internally connected to chassis ground, do not create a second ground point at the sensor junction box. Double-grounding a single-ended input forces any difference in earth potential between the machine and the control cabinet to flow through the signal cable shield. This current induces a 50/60 Hz hum directly onto your vibration signal.
EMC and Cable Routing
Mechanical installation and grounding work together to achieve electromagnetic compatibility. The following rules should be embedded into standard panel design practices.
Spatial Separation
Maintain at least 200 mm of physical distance between the MPC4 rack assembly and any high-power components such as VFDs, motor contactors, or power supply transformers. If space is limited, install a grounded metal partition plate between the drive section and the instrumentation section of the panel. The partition should be bonded to the panel frame at multiple points, not just at one corner.
Cable Segregation
Run sensor signal cables in dedicated trunking or conduit, physically separated from power cables. Parallel runs of signal and power cables should be avoided. If they must cross, do so at 90-degree angles. Unshielded signal cables laid directly next to motor supply cables will pick up both the fundamental drive frequency and the switching frequency harmonics. The MPC4’s input filtering can reject some steady-state noise, but the cumulative effect across multiple channels erodes the signal-to-noise margin needed for early fault detection.
Pre-Commissioning Checks
Before applying power and configuring the MPC4, perform these physical verification steps. They take minutes but can save hours of troubleshooting later.
Rack Mechanical Stability: Attempt to gently rock the rack by hand. There should be no movement relative to the DIN rail. If movement exists, the clamps need re-tightening or the rail size is incorrect.
Ground Continuity: Using a low-resistance ohmmeter, measure between the rack ground stud and the panel earth bar. Resistance should be below 0.1 ohm. A measurement showing tens of ohms means a poor or oxidized connection.
Insulation Check: Disconnect the MPC4 and check that there is high resistance (megohm range) between the backplane signal pins and chassis ground, unless the design specification states otherwise. Low resistance here indicates moisture ingress or contamination on the backplane.
Module Seating Visual Check: With a flashlight, confirm the MPC4 front panel is flush with adjacent modules and that the retention clips at top and bottom are fully engaged. A partially seated module may work during initial testing but fail intermittently after thermal cycling.
Integrating Installation Quality into Spare Parts Management
When a site standardizes on the MPC4 200-510-017-017 as part of its machinery protection strategy, spare module inventory is only one element. The spare reliability depends on the installation environment being correct. A spare module swapped into a rack that has grounding faults or mechanical instability will exhibit the same, or worse, problems as the original part.
Before keeping critical spares, verify that the rack infrastructure—DIN rail fixings, ground wiring, cable routing—is documented and maintained to the same standard as the rotating equipment itself. This approach makes every spare module plug-and-play, reducing mean time to repair from hours to minutes.
Common Installation Mistakes and Corrections
Observed Problem | Likely Cause | Corrective Action |
|---|
Intermittent OK Faults | Rack ground wire loose or painted DIN rail | Install dedicated ground wire; remove paint under rail clamp points. |
Gap voltage drift over time | Multiple ground points on signal circuit | Establish single-point ground; float or isolate sensor negative if needed. |
Module difficult to insert or remove | Warped rack due to uneven clamp torque | Loosen all clamps, re-align rack, torque evenly in cross pattern. |
VFD frequency visible in spectrum | Signal cable shield pigtail too long | Shorten shield drain to less than 25 mm; use 360-degree EMC cable entry. |
Frequently Asked Questions
Q: Can I mount the 204-040-100-011 rack directly to a painted back plate without a DIN rail?
A: The rack is designed for DIN rail mounting. Direct back plate mounting is often possible using the provided mounting holes, but you lose the flexibility of rail-based positioning and the grounding path will be different. If you bypass the DIN rail, ensure the rack’s ground stud is still connected to the earth bar with a dedicated wire. Paint must be removed under the ground connection area to achieve metal-to-metal contact.
Q: What size ground wire should I use for the rack?
A: Follow local electrical codes for protective earth conductors. As a practical minimum for instrumentation, use 2.5 mm² stranded wire for the ground connection from each rack to the earth bar. Heavier wire (4 mm² or 6 mm²) provides lower impedance and better mechanical durability, which is beneficial in high-vibration cabinets.
Q: My sensor cable shields are connected at both ends. Is that wrong for MPC4?
A: For low-frequency vibration signals and most MPC4 installations, grounding the shield only at the rack end is recommended to avoid ground loops. Double-ended grounding is sometimes used for very high-frequency interference, but it requires equal ground potential at both ends of the cable, which is rare in plant environments. Start with single-ended grounding at the rack, and only change if proven necessary by on-site measurements.
Maintaining a quality installation standard for machinery protection modules directly supports operational uptime. For sites looking to validate their existing MPC4 200-510-017-017 installations or source compatible spare cards and rack accessories, Joyoung International Trading Co., Limited provides technical consultation alongside fast, globally sourced delivery. Reach our team at chen@htechplc.com or call +86-181-5013-7565 for assistance with module matching or bulk spare requirements.
If you’re interested, check out these related articles:
Epro PR6424 002 100 Proximity Probe Replacement Specs
Oil Gas Automation Spares SIS DCS PLC Reliability
GE IS200AEPAH1A Mark VI Analog I O Module Sourcing Guide
DCS Migration or Legacy Parts Strategic Industrial Choices
Recommended Models
EA402 913-402-000-013 A1-E090-F0-G000
IQS450 204-450-000-001 A1-B21-H05-I0
IQS450 204-450-000-002 A1-B21-H10-I0
IQS450 204-450-000-001 A1-B23-H05-I0
IQS450 204-450-000-002 (A1-B21-H10-I1)

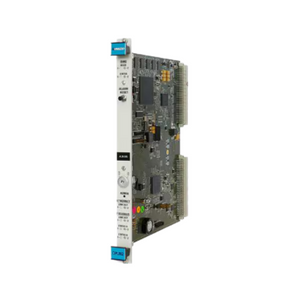

VM600 CPUM 200-595-067-114
VM600 CPUM 200-595-063-314
TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0-H05-I0
TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0

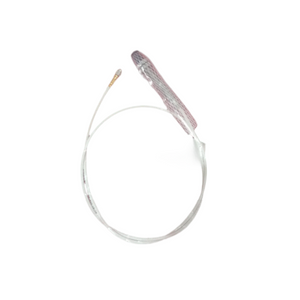

TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10
