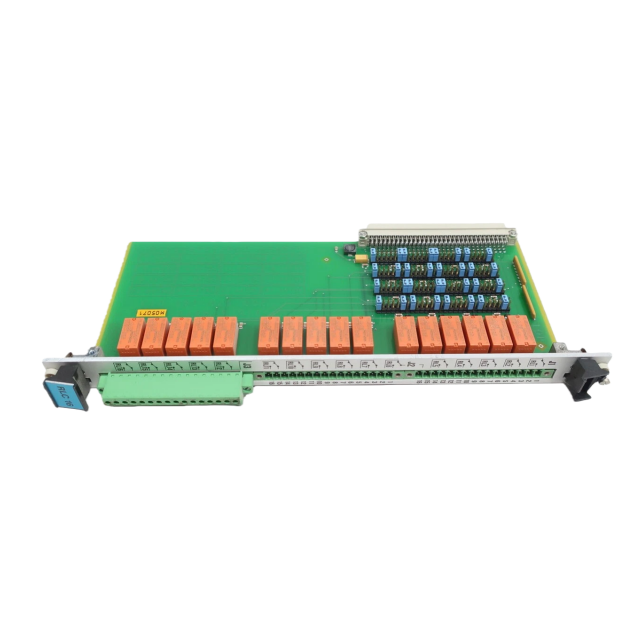

The RLC16 relay card (part number 200-570-101-013) is a fundamental component in VM600 machinery protection systems. It translates internal monitoring decisions into physical relay actions — most critically, the external trip signal that triggers a safety shutdown, alarms, or interlocks. Correct wiring and validation of the external trip circuit ensure that when a vibration, thrust, or speed parameter exceeds its limit, the output acts immediately to protect the machine. This guide walks you through the circuit configuration, wiring considerations, and step-by-step validation procedure.
Understanding the RLC16 External Trip Output
The RLC16 provides galvanically isolated relay contacts that can be programmed via the VM600 configuration software (e.g., VibroSight or VSx) to respond to specific trip conditions. Typically, the card offers normally open (NO) and normally closed (NC) contacts, rated for low‑level DC or AC loads commonly found in ESD (Emergency Shutdown) and PLC input channels.
Key characteristics that affect wiring:
– Contact type: usually dry contact (no voltage present at the relay terminals themselves).
– Maximum switching capacity: check your specific module datasheet (often 30 V DC / 1 A or 60 V AC / 0.5 A).
– Programmable trip logic: the trip can be configured for normally energized (fail‑safe) or normally de‑energized operation.
Before any wiring, verify the logic in the configuration tool: is the relay expected to close on trip or open on trip? This determines whether you wire to the NO or NC terminal.
Wiring the External Trip Circuit
1. Gather Materials
RLC16 module properly seated in the VM600 rack (204-040-100-011 or 012 backplane).
Screened/shielded multi‑conductor cable to the control system or ESD interface. Signal cable should be kept away from high‑power lines.
Appropriate ferrules or ring terminals for the relay block terminals.
A loop‑powered indicator or PLC digital input module that the relay will drive.
2. Identify Terminal Assignments
On the RLC16 front connector or terminal block, each relay channel has at least three terminals:
– COM (common)
– NO (normally open)
– NC (normally closed)
For a typical fail‑safe arrangement (de‑energize to trip), wire the external trip circuit across COM and NO. When the relay is energized (system healthy), the circuit is closed. On a trip condition, the relay de‑energizes and opens the circuit, which the safety system interprets as a trip. Always follow the plant’s functional safety philosophy.
3. Connect the Load
Route the positive side of the loop supply (often 24 V DC from a safety PLC’s internal source) through the relay contact and then to the digital input point.
Ensure the load (PLC input impedance) is within the relay’s switching rating. If driving a high‑impedance input, transient suppression may not be needed; if driving a low‑impedance load or long cable, place a snubber diod (DC) or RC network (AC) close to the load to prevent contact welding.
4. Grounding and Shielding
The cable shield should be connected to the VM600 rack earth at one end only (typically the field device end) to avoid ground loops. The relay commons are isolated, so the external circuit may float or be referenced to system ground depending on your safety PLC design.
Validating the Trip Circuit Function
Validation must be performed with the machine in a safe state (during a commissioning window or with the process isolated). You will simulate trip conditions and verify that the external circuit correctly changes state.
Step 1: Verify Relay De‑energized State
With the VM600 power on but the monitored channels in “OK” state, measure continuity across the wired contacts (COM‑NO for normally energized logic). You should see closed circuit (low resistance). If the contact is open, check:
– Configuration tool indicates the relay is energized.
– 24 V power is reaching the RLC16 card (use the card’s status LEDs).
– Rack backplane connection is clean and module is fully inserted.
Step 2: Force a Trip from Software
Use the VM600 configuration software to force the associated measurement channel into trip (e.g., override the vibration threshold to a value lower than the actual reading). The relay should change state.
Confirm:
– The wired contacts open (or close, depending on logic) within the configured time delay.
– The external PLC or ESD input sees the expected transition (monitor the digital input tag on‑line).
– The contact bounces less than a few milliseconds (use an oscilloscope if you suspect slow or sticky contacts).
For proximity probes (TQ402, TQ412) or accelerometers (CA202), you can use a model‑specific calibrator (e.g., 204-215-000-101) to inject a mechanical signal that exceeds the trip level. While monitoring the relay, gradually increase the vibration signal until the relay trips. This end‑to‑end test confirms the entire loop: sensor, signal conditioner (IQS450), MPC4 processing card, and finally the RLC16 output.
Record:
– Trip point deviation from setpoint (should be within ±1 % of configured value).
– Response time from threshold crossing to relay state change (typically < 50 ms for machinery protection applications).
– Relay contact resistance after several cycles; any increase may indicate contact wear.
Step 4: Test the Trip‑Hold and Reset Logic
Many protection systems latch the trip until an operator resets it. After the trip, verify:
– The relay remains in the tripped state even after the vibration level returns below the threshold.
– An external remote reset command (via a digital input or network command) returns the relay to healthy state.
– The alarm history and event log in the VM600 CPUM (e.g., 200-595-067-114) record the trip correctly with timestamp.
Common Wiring Faults and How to Diagnose Them
Symptom | Possible Cause | Fix |
|---|
Relay contact always open (no trip) | Configuration set to “normally energized” but wired to NC terminals | Rewire to COM‑NO or invert logic in software |
External system fails to detect trip | Load current exceeds relay rating; contacts welded | Replace relay card (RLC16), add snubber |
Intermittent trips | Loose terminal screws, vibration on wiring | Re‑tighten all terminals, use shielded twisted pair, secure cables |
Relay cycles during machine transient | Trip time delay too short; false threshold crossing | Increase trip delay in MPC4 configuration, check signal filtering |
High contact resistance | Oxidation on relay contacts | Replace module; if this is a recurring issue, consider using a solid‑state relay interface, or select a more contact‑friendly load |
Choosing Spare RLC16 Cards and Complementary Parts
When keeping an inventory for critical rotating machines, you typically hold one RLC16 card per rack as an immediate replacement. The 200-570-101-013 is a standard version; be sure to match the exact part number when ordering. At Joyoung International Trading Co., Limited, we stock genuine RLC16 relay cards and the full range of VM600 spare parts, including CPUM processors, MPC4 cards, TQ402/TQ412 probes, and IOC4T communication modules. Our technical team can help validate your configuration before shipment.
Contact us at chen@htechplc.com to check availability and get a same‑day delivery quotation.
FAQ
Q: Can I use the RLC16 external trip circuit directly with a 120 V AC shutdown solenoid?
A: The dry contact ratings are low. For AC loads, use an interposing relay or contactor; the RLC16 drives the relay coil.
Q: How often should I validate the external trip circuit?
A: For safety‑critical loops, perform functional testing during scheduled shutdowns (at least annually). For less critical machines, a loop check during any PM window is sufficient.
Q: The RLC16 LEDs show “trip” but the external circuit does not change — why?
A: Likely a wiring or contact fault. Measure continuity on the terminals directly. If the internal relay is operating but no external change, the card may have a damaged relay. Replace with a spare RLC16.
By following proper wiring practices and periodic validation, your RLC16‑based external trip circuit will deliver the reliability your machinery protection system demands. For rapid sourcing of RLC16 200-570-101-013 and other VM600 components, reach out to Joyoung — we support your uptime globally.
