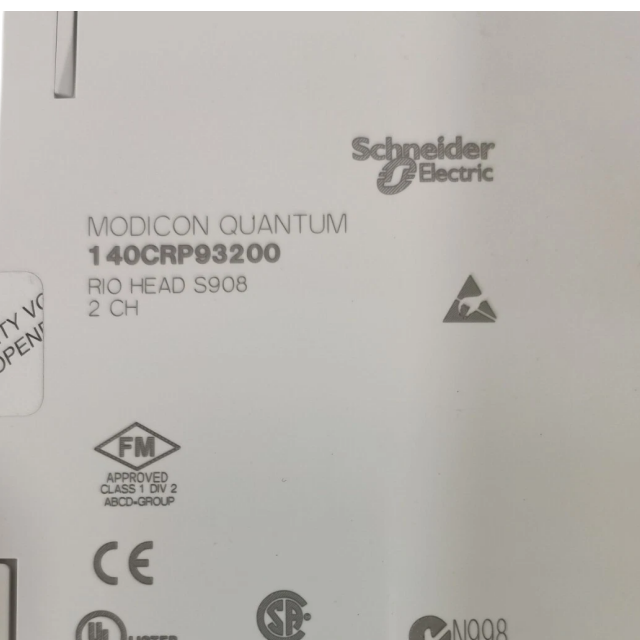

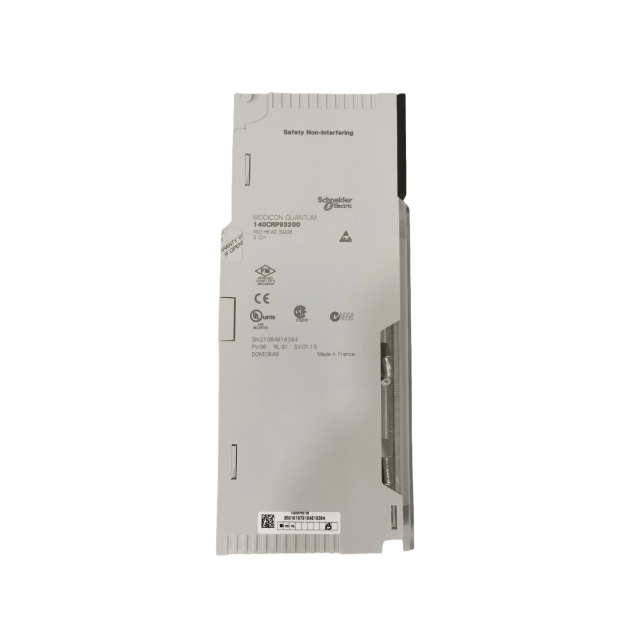

Schneider 140CRP93200 PLC Module
Overview
The 140CRP93200 is a dual-channel Remote I/O (RIO) head-end adaptor module designed for
Schneider Electric’s Modicon Quantum automation platform, featuring redundant coaxial cable
connectivity for reliable data transmission in industrial control systems. As a key component of RIO
networks, it facilitates bidirectional data transfer between the Quantum CPU (host) and distributed
RIO drop modules, supporting mixed-product compatibility with Symax, Quantum, and 200/500/800
series I/O systems. While marked for discontinuation (end-of-service by 31 December 2029), it
remains a trusted solution for existing installations requiring robust, redundant remote I/O
connectivity.
Key Functional & Technical Highlights
RIO Network Capabilities
Supports up to 31 remote drops per network, with 64 input words and 64 output words per drop,
ideal for large-scale distributed control.
Utilizes 75 Ohm coaxial cable for transmission, operating at a data rate of 1544 Mbit/s with a dynamic
range of 35 dB for stable signal integrity.

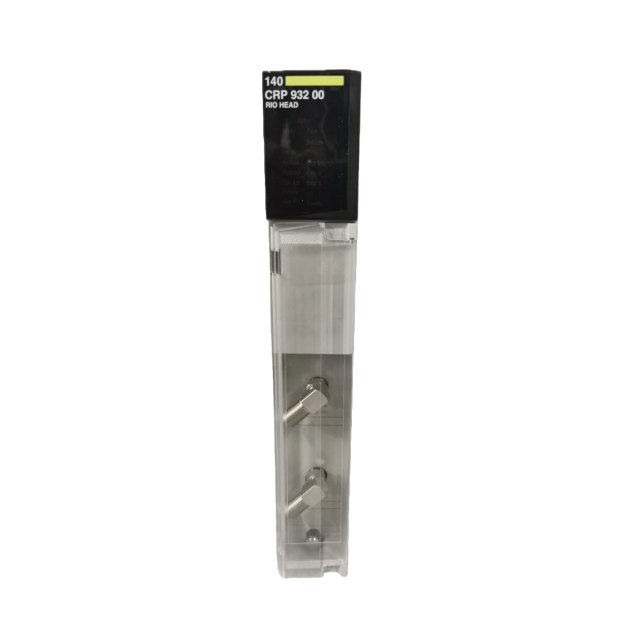

Features dual female F-type elbow connectors to enable redundant cable configurations, enhancing
network reliability against cable failures.
Electrical & Power Specifications
Requires 750 mA of backplane bus current and dissipates 3 W of power (for dual channels).
Provides 500 V DC isolation between the coaxial center conductor and ground, ensuring electrical
safety in industrial environments.
Complies with CE marking and global standards including UL 508, CSA C22.2 No 142, and CUL for
broad deployment approval.
Reliability & Diagnostics
Built-in startup diagnostics include memory checks and LAN controller checks to validate module
functionality on power-up.
Resistant to electrostatic discharge (4 kV contact / 8 kV air, per IEC 801-2) and electromagnetic fields
(10 V/m, 80–1000 MHz, per IEC 801-3), ensuring performance in harsh industrial settings.
Certified for FM Class 1 Division 2 hazardous locations, expanding applicability to high-risk
environments.
Environmental Durability
Operates in ambient temperatures of 0–60°C and stores safely at -40–85°C.
Withstands up to 95% relative humidity (non-condensing) and operating altitudes up to 5000 m,
adapting to diverse industrial conditions.
Specifications
The 140CRP93200 is a RIO head-end adaptor module belonging to the Modicon Quantum
automation platform. It features 2 female F-type elbowed connectors with redundant cable to
support reliable data transmission in industrial control systems.
In terms of commercial status, the module is marked to be discontinued as of 31 December 2021 and
will reach end-of-service on 31 December 2029. It is compatible with Symax (any mix) and Quantum
200/500/800 series products, supporting a maximum of 31 drops per network, with 64 input words
and 64 output words per drop. The module uses 75 Ohm coaxial cable for transmission, operating at
a rate of 1544 Mbit/s and offering a dynamic range of 35 dB. It provides 500 V DC isolation between
the coaxial center and ground, and requires 750 mA of bus current for 2 channels while dissipating 3
W of power, with a standard module format and CE marking.
For diagnostics, the module performs memory checks, LAN controller checks, and power-up
diagnostics to ensure operational integrity. In terms of certifications and standards compliance, it
meets FM Class 1 Division 2 requirements, as well as UL 508, CSA C22.2 No 142, and CUL standards. It
demonstrates resistance to electrostatic discharge (4 kV contact and 8 kV air, conforming to IEC 801-
2) and electromagnetic fields (10 V/m at 80–1000 MHz, conforming to IEC 801-3).
Environmentally, the module operates in an ambient air temperature range of 0–60 °C, stores in -40–
85 °C, tolerates 95% relative humidity without condensation, and is suitable for operating altitudes up
to 5000 m.
In terms of packaging, it has two package types: Package 1 (type PCE) contains 1 unit, weighing 531 g
with dimensions 31.5 cm (length) × 16.5 cm (width) × 4.7 cm (height); Package 2 (type S03) contains 7
units, weighing 4.134 kg with dimensions 40 cm (length) × 30 cm (width) × 30 cm (height).
For sustainability, the module is a Green Premium product, compliant with REACh (free of SVHC), EU
RoHS (pro-active compliance, though out of EU RoHS legal scope), and China RoHS regulations, with
a REACh Declaration, EU RoHS Declaration, and China RoHS Declaration available. It is mercury-free,
provides RoHS exemption information, and has a Product Environmental Profile, End of Life
Information (Circularity Profile). In the European Union, it must be disposed of via specific waste
collection per WEEE directives and carries a California Proposition 65 warning about potential
exposure to lead and lead compounds. The product also comes with an 18-month contractual
warranty.
