6ES7972-0BA12-0XA0 Advantages

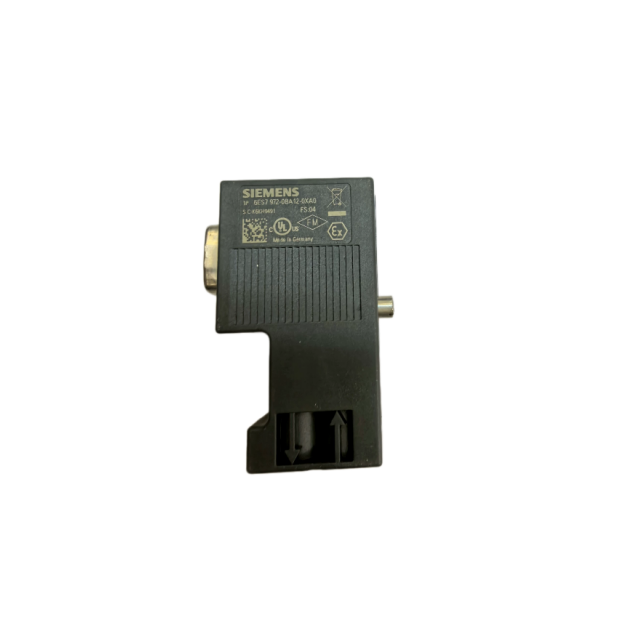

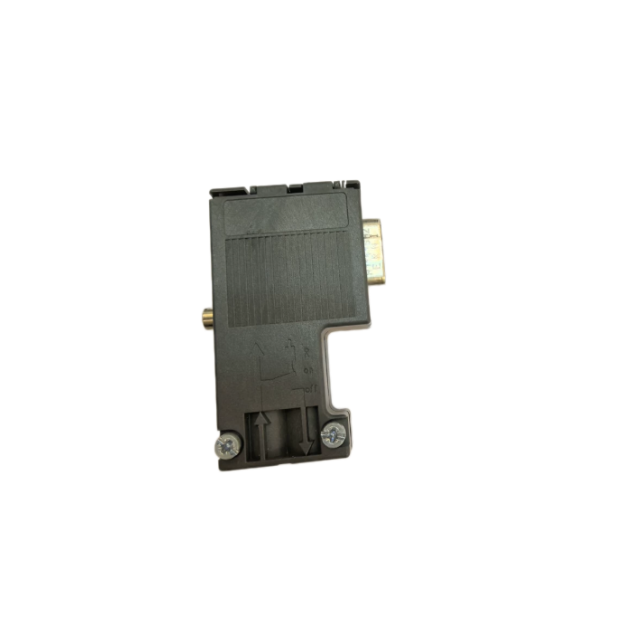

Siemens 6ES7972-0BA12-0XA0 PROFIBUS Bus Connector provides reliable standard wiring solution for SIMATIC PROFIBUS DP industrial control network. The built-in slide switch independent terminal resistor avoids additional external matching resistance during on-site wiring, greatly simplifying the network layout work of bus start and end nodes, and eliminates communication failure risks caused by mismatched bus impedance. The 90-degree right-angle cable outlet design effectively reduces the bending loss of communication cables inside the dense electrical cabinet, saves internal layout space and avoids cable extrusion damage. Screw locking wiring terminals provide firm anti-vibration cable connection, which will not loose or disconnect under long-term equipment operation vibration, effectively preventing intermittent communication faults of the production line. The internal multi-layer shielding structure can filter electromagnetic interference generated by frequency converters, high-power motors and power distribution cables on site, reduce signal crosstalk, ensure error-free transmission of real-time control data of PLC and field instruments, and avoid equipment shutdown caused by bus communication failure. This connector is fully produced according to Siemens German unified production standards, each unit passes strict communication aging test before delivery, consistent electrical performance, strong interchangeability, can be freely replaced during system transformation and maintenance without modifying the original control program of S7 PLC. The flame-retardant plastic shell meets industrial safety standards, IP20 protection can prevent personnel accidental contact with internal signal pins and metal foreign matter short circuit, improving the overall electrical safety of the control cabinet. The ultra-wide operating temperature range adapts to the high and low temperature environment of chemical, metallurgy, energy and other industrial workshops, no performance attenuation under continuous 24-hour operation.
6ES7972-0BA12-0XA0 Applications
Siemens 6ES7972-0BA12-0XA0 PROFIBUS Bus Connector is the core matching communication accessory of 6ES SIMATIC PROFIBUS DP automation platform, widely applied to PROFIBUS network wiring projects of thermal power generation, petrochemical processing, metallurgical rolling, water treatment, automobile manufacturing, packaging machinery and cement production industries. It is used for bus connection of S7-300/S7-400 main CPU, ET200M/ET200S distributed remote I/O modules, PROFIBUS frequency converters, pressure/temperature transmitters, flow meters and other DP field bus equipment. It is applicable to new factory automation system construction, old production line PLC control system renovation, intelligent workshop predictive maintenance upgrading projects based on PROFIBUS DP protocol, serving as the physical connection medium between central control PLC and all field layer automation equipment to build real-time industrial control communication network.
6ES7972-0BA12-0XA0 Certifications & Compliance

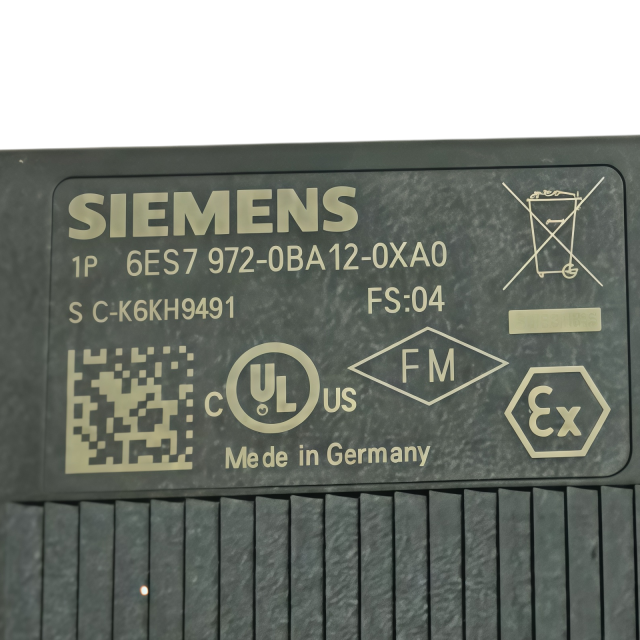

Siemens 6ES7972-0BA12-0XA0 PROFIBUS Bus Connector complies with international industrial communication and electrical safety standards. It has passed UL industrial component safety certification, CE EU low voltage electrical equipment certification, RoHS environmental protection compliance certification, fully conforms to IEC 61158 PROFIBUS bus international standard and ISO 10218 industrial automation equipment safety specifications, and meets Siemens global unified SIMATIC series product technical specifications. All products are brand new original German factory goods; each connector passes communication linearity test, high-low temperature cycle aging test, vibration resistance test and electromagnetic interference anti-interference verification before leaving the factory. All finished products adopt anti-static shockproof plastic packaging and enjoy one-year global unified after-sales warranty service. The product meets the safety access standards of industrial control equipment in various countries around the world, and can be safely deployed in various high-interference, wide-temperature industrial electrical cabinet environments for long-term stable bus communication work.
