When a Moore APACS+ DCS runs a process line that still works reliably after two decades, the last thing any maintenance engineer wants is to risk plant downtime waiting on a discontinued module. The 39BCMNBN and QLCAMAAN are two modules that quietly keep older APACS+ systems running, yet sourcing replacements that actually function correctly is where things get difficult. Most online listings focus on part number matches and generic compatibility claims, leaving the real verification work to the buyer. Having spent more than ten years sourcing legacy DCS spares, I have learned that a module that looks right in a photo can still fail within hours if its firmware revision does not match the system configuration. This article breaks down what to check when you need 39BCMNBN, QLCAMAAN, or other obsolete APACS+ modules, and how to avoid receiving parts that cannot hold up under load.
Why Moore APACS+ System Support Still Matters
Many plants never migrated away from APACS+ because the system met their process control needs without a compelling financial case for a full rip and replace. The Moore APACS+ architecture used a modular backplane and distributed I/O that, at the time, offered flexibility comparable to much newer platforms. Today, dozens of facilities in oil refining, chemical processing, and power generation still run APACS+ racks. When a module fails, the priority is not a migration study. The priority is getting the same module back into the rack within the shortest possible window. The problem is that Moore stopped producing these modules years ago, and the remaining inventory is scattered across surplus warehouses, repair depots, and online platforms that do not always test beyond a power-on check. That reality makes specific module knowledge critical before you place an order.
Technical Specifications That Define 39BCMNBN and QLCAMAAN Compatibility

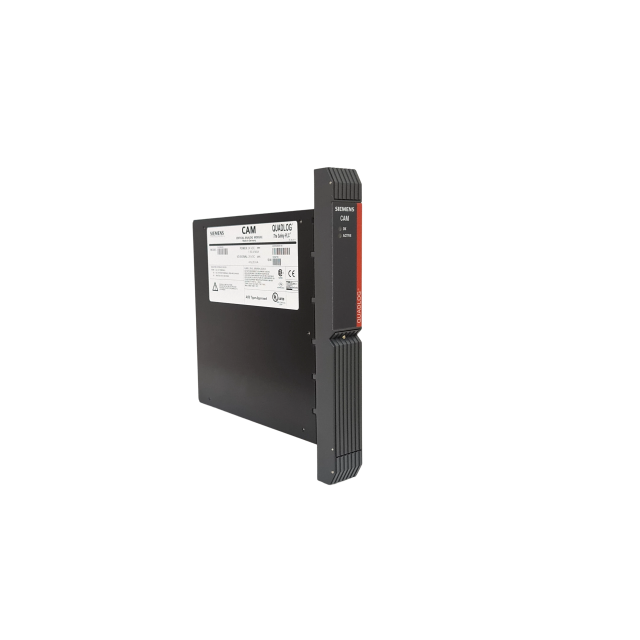

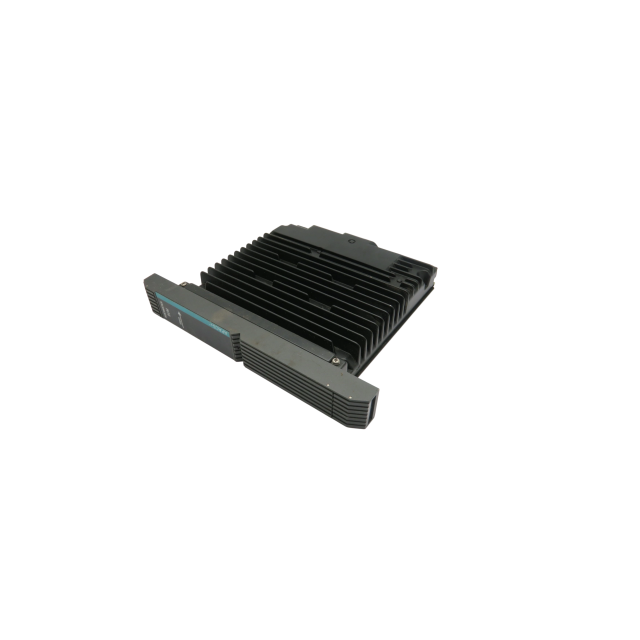

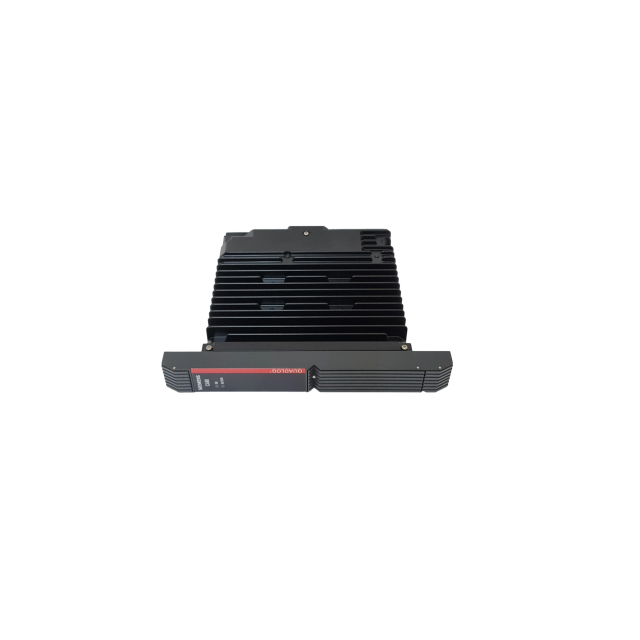

Both the 39BCMNBN and QLCAMAAN are modules I have handled numerous times for clients trying to restore APACS+ racks. The 39BCMNBN is primarily an analog input processor, while the QLCAMAAN functions as a communications interface module linking the APACS+ controller to external devices. The physical hardware is only half the story. The firmware loaded on each module must align with the system’s operating revision, or the rack will fail to recognize it during initialization.
Specification
39BCMNBN
QLCAMAAN
Function
Analog input processing
Communication interface
Physical form
Single slot, Eurocard format
Single slot, Eurocard format
Key compatibility factor
Input range configuration jumpers
Firmware version matching
Common failure modes
Channel drift, calibration loss
Link timeout, bus errors
Replacement availability
Limited surplus stock
Very limited surplus stock
If you are replacing a 39BCMNBN, ask the supplier to confirm the presence and setting of the onboard range configuration jumpers. I have seen modules delivered without jumpers, which makes them unusable until you source those small hardware bits separately. For the QLCAMAAN, request a photo of the firmware label on the EPROM or flash chip. Without that confirmation, you cannot verify that the module will talk to your existing controller.
How to Verify Legacy Moore APACS+ Module Condition Before Purchase
The biggest risk when buying a legacy module is getting a board that passes a visual inspection but fails under runtime conditions. By runtime, I mean the module installed in a live backplane with signal traffic and thermal load. Here is what I check on every APACS+ module before accepting it for a client:
Board-level inspection: Examine the PCB for rework marks, lifted pads, or capacitor swelling. A resoldered chip is not automatically a problem, but it must be documented. If the seller cannot tell you what was replaced and why, treat the board as questionable.
Gold finger contact condition: The edge connector contacts must be free of deep scoring or contamination. Even minor corrosion can cause intermittent communication faults that are nearly impossible to troubleshoot in a running system.
Burn-in verification: Ask if the module was powered on a test rack for at least 24 hours under signal load. A simple power-on test does not reveal thermal drift or marginal components.
If your program involves mission-critical processes where a module swap window is measured in hours, it is worth confirming these three points before finalizing your BOM. Reach out with your part number and tolerance requirements at chen@htechplc.com before committing to a purchase that may arrive untested.
Sourcing Channels for Moore APACS+ Spare Parts with Fast Delivery
When a production line is down and the maintenance team is waiting on a spare, the supply chain you choose determines whether that downtime stretches into days or stays contained. We maintain relationships with multiple global surplus warehouses and test facilities that focus specifically on legacy DCS hardware, including APACS+. This network allows us to locate modules like the 39BCMNBN and QLCAMAAN that are not listed on any public catalog. Because we verify each module against the criteria described above before dispatch, our clients avoid the scenario of receiving a dead card and starting the search over.
The reality of legacy spare parts is that inventory moves fast. A QLCAMAAN that is available today may be sold within 48 hours to another plant facing the same failure. When you have an urgent requirement, speed and accuracy in the initial inquiry are what lock in the part. Send your part number, required quantity, and target delivery date to chen@htechplc.com or call +86-181-5013-7565, and we will confirm stock and test results immediately.
Common Questions About Sourcing Moore APACS+ Modules
Are refurbished Moore APACS+ modules as reliable as new old stock?
A properly refurbished module can be more reliable than a new old stock unit that sat untouched for 15 years, because the refurbished board has been cleaned, recapped if necessary, and burned in under load. New old stock modules can suffer capacitor degradation from long storage. The key is the quality of the refurbishment process, not the label.
How do I know if a QLCAMAAN firmware revision will work with my system?
The firmware revision printed on the EPROM label must match the minimum revision specified in your system documentation. If you do not have the documentation, share your controller model and rack configuration with us, and we can cross-reference the compatible firmware range. This is one of the most common mismatches we catch before shipping.
What if my required module is not listed on your website?
Our online catalog represents only a fraction of our accessible inventory. Many legacy APACS+ modules sit in partner warehouses that do not maintain public listings. The fastest way to locate an unlisted module is to send the exact part number and quantity needed. We run a direct search across our network and return availability within hours.
Can you source both the 39BCMNBN and QLCAMAAN from a single shipment?
Yes. Consolidating multiple modules from one supplier reduces shipping cost and delivery risk. When you need both analog and communication modules to restore a rack, we check all items together to ensure they meet the same condition standard before a single consolidated shipment goes out. Share your complete parts list with chen@htechplc.com for a unified stock confirmation.
