If you maintain a Siemens SIMADYN D system, sourcing the correct 6DD1600-0AF0 or 6DD1601-0AE0 module is more than a procurement task—it is a reliability decision. These processor and interface boards control critical drive and power conversion loops, and a mismatch or a substandard replacement can bring a production line down. After more than ten years supplying industrial automation spares globally, I have seen teams lose weeks waiting for the wrong part. This guide cuts through the noise, covering the specifications you need to verify, the availability traps to avoid, and the supplier checks that protect your legacy investment.
Siemens SIMADYN D is a high-end digital control system designed for fast closed-loop control in drives, rolling mills, and power converters. The 6DD1600-0AF0 is a processor module, while the 6DD1601-0AE0 is an interface board that handles communication and I/O expansion. Both parts are now discontinued, yet they remain in service across steel plants, paper machines, and marine propulsion. Understanding their exact function avoids ordering a revision that cannot integrate with the existing backplane or the application firmware loaded in the master controller.

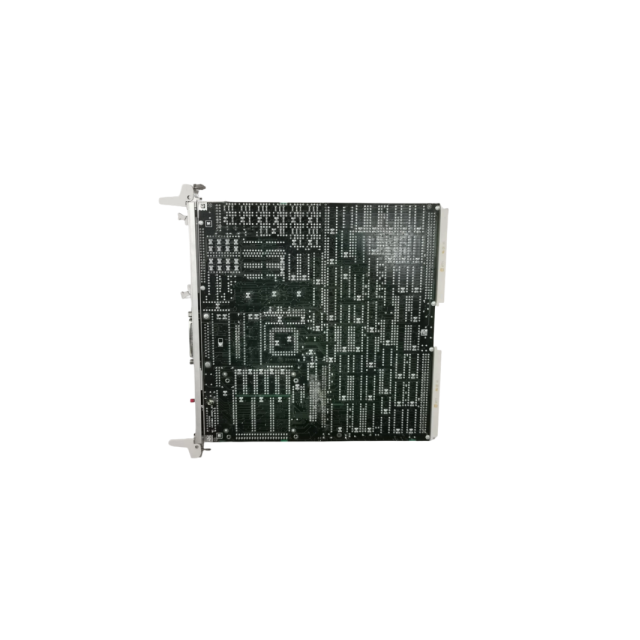

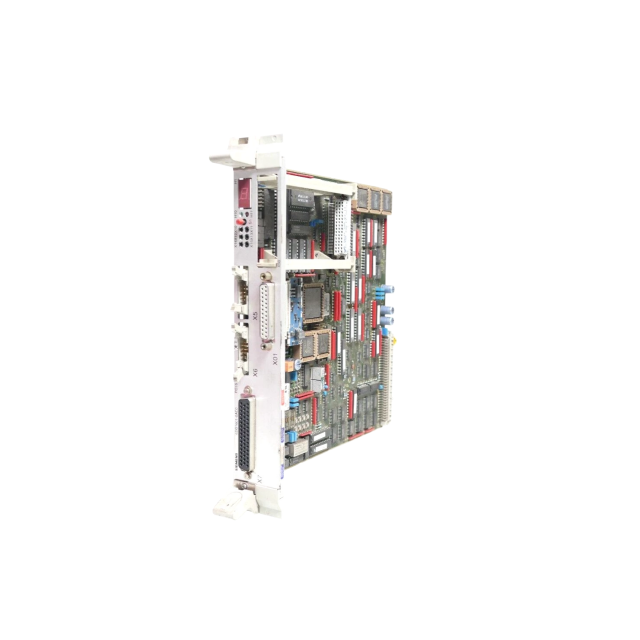

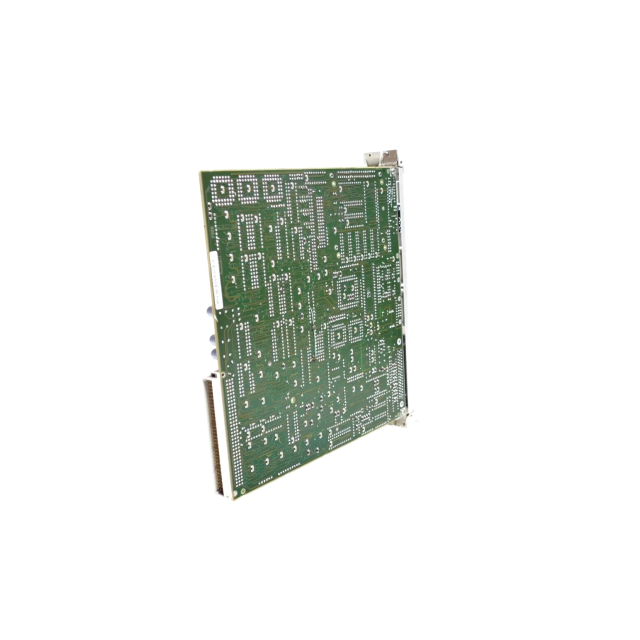

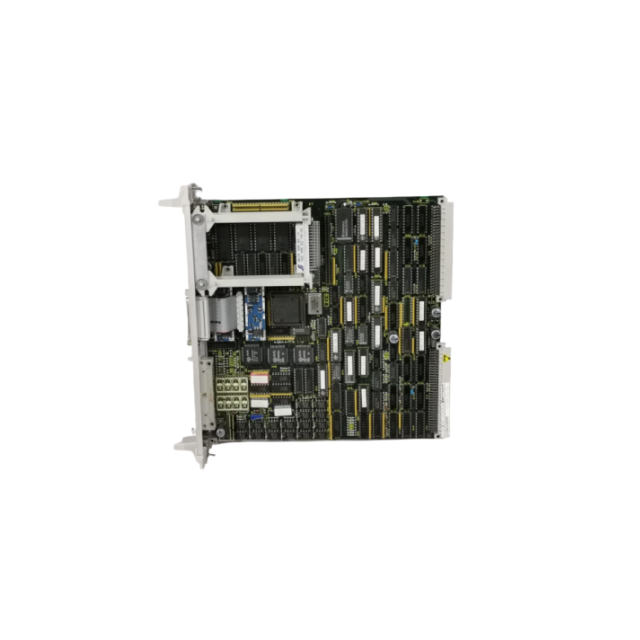

The 6DD1600-0AF0 runs the real-time control algorithms. Its direct replacement is seldom a newer part number without re-engineering the program structure. The 6DD1601-0AE0 sits at the boundary, linking the processor to field devices and other racks. A damaged interface board can silently corrupt the process data, causing intermittent faults that maintenance teams chase for days.
Availability Traps in the Secondary Market
SIMADYN D parts are not stocked by the manufacturer. The supply channel has shifted to specialist industrial spare parts distributors, surplus warehouses, and sometimes uncertified resellers. This creates three real risks:
Units pulled from decommissioned equipment without proper testing.
Repairs that replace only the visibly damaged component, leaving aged capacitors and connectors untouched.
Re-marked or counterfeit boards that match the visual appearance but contain downgraded components.
In one instance I recall, a customer received a 6DD1600-0AF0 that powered on but failed under load because the output drivers had been replaced with lower‑spec equivalents. The board looked perfect. The initial savings disappeared when the mill tripped twice in one week.
If your system relies on precise timing or high switching frequencies, do not treat these modules as commodity buys. Send the part number and any known firmware or revision details to chen@htechplc.com before committing to a purchase. A quick cross‑check can stop a mismatch before it reaches the plant floor.
Specifications to Confirm Before Ordering
Parameter
6DD1600-0AF0
6DD1601-0AE0
Function
Processor module
Interface module
Typical system
SIMADYN D rack
SIMADYN D rack
Firmware dependency
Yes, match to master
No, but I/O mapping required
Legacy risk
Firmware not updatable field
Pin oxidation over time
Visual identifiers
Firmware label, board revision silk‑screen
Connector type, isolation rating
Always ask for a photo of the actual item showing the revision code and the firmware sticker. Revisions matter. A 6DD1600-1AE0 board may look identical but communicate over a different protocol layer than the earlier revision your system expects.
Beyond part number, confirm the operating temperature range and the required supply voltage. Some SIMADYN D variants were built for harsh environments with conformal coating. An uncoated board in a damp cabinet will fail within months.
Genuine Parts vs. “Fully Tested” Claims
The phrase “fully tested” on a sales listing means very little without a test protocol. Proper module verification requires:
Power‑up and boot sequence check under rated load.
Signal loopback or simulation of the actual I/O load the board will see.
Extended burn‑in, typically 4–12 hours, to catch thermal intermittent failures.
Visual inspection under magnification for rework marks, flux residue, or mismatched date codes.
We follow a documented inspection procedure for every SIMADYN D board that passes through our facility. Even with that, I tell customers that a field installation test remains the final gate. Install the module in a cold system, verify communication, then run a low‑speed sequence before bringing it to full production.
If a seller cannot describe their test sequence beyond “power on,” the board is untested in any meaningful sense. In our experience, roughly one in three boards sourced from unverified channels carries some form of prior damage or non‑conformance.
Sourcing That Protects Your Operation
A reliable SIMADYN D supply chain rests on three legs:
Direct access to a wide industrial network that aggregates inventory from decommissioned lines and system integrators.
In‑house technical capability to verify board condition before shipping.
Fast logistics that put the part in your hands within days, not weeks.
Our team at Joyoung International Trading Co., Limited supports clients worldwide with SIMADYN D and other Siemens legacy spares. When you send the part number and desired quantity to chen@htechplc.com, we check availability across our network and confirm lead time the same day. For urgent replacements, we can ship within 24 hours once the order is placed. You can also call +86-181-5013-7565 to speak directly with an engineer.
Common Questions About SIMADYN D Spare Parts
Can I use a 6DD1601-0AE0 revision C to replace a revision A board?
The answer depends on the backplane and the master controller firmware. In most cases, revision C is backward compatible, but a few early SIMADYN D racks require a configuration parameter change in the system software. Before ordering, confirm the master controller model and the firmware release version. If you are not certain, share the system details with us and we will check the compatibility matrix.
How long does it typically take to receive a 6DD1600-0AF0 once ordered?
If the module is in our verified stock, dispatch is same day. Transit time then depends on your location—typically 3–5 business days for Asia, 5–7 days for Europe and North America. For items that need to be sourced from a partner warehouse, we provide a lead time within one business day and keep you updated.
What warranty do you offer on SIMADYN D modules?
We apply a 12‑month warranty on every module. If a module fails under normal operating conditions within that period, we replace it at no additional cost. This warranty is backed by our in‑house testing, which goes beyond simple power‑on checks to verify functional integrity under simulated load.
Is it possible to repair a damaged 6DD1601-0AE0 instead of replacing it?
Some failures, such as degraded capacitors or cold solder joints, can be repaired by a competent lab. However, if the board has suffered corrosion on the connector pins or damage to the inner PCB layers, replacement is usually more reliable. We evaluate repairability case by case. Send clear photos of the board and a description of the fault to chen@htechplc.com, and our engineers will give you a practical recommendation.
