Introduction
The 204-040-100-012 is a 19-inch rack-mountable backplane designed for the VM600 machinery protection system. It provides the physical and electrical backbone for plug-in modules such as the CPUM, MPC4, IOC4T, and IQS450. Correct mechanical installation and adequate ventilation spacing are essential to guarantee long-term reliability and prevent thermal drift or intermittent faults. This guide covers the critical mounting dimensions, ventilation requirements, and common mistakes when installing the 204-040-100-012 in an industrial control cabinet.
Backplane Mechanical Profile

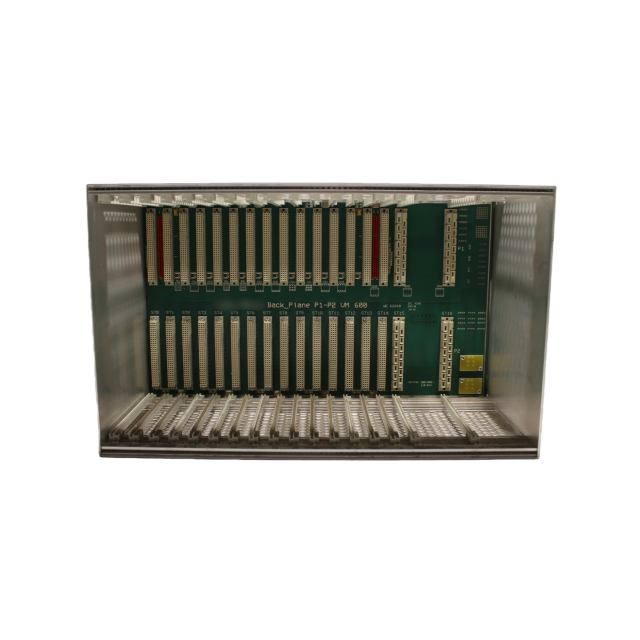

The 204-040-100-012 backplane is a 6U-high (10.5 inch) × 19-inch wide PCB assembly with a 160 mm deep Eurocard format. It uses standard M2.5 threaded inserts on a 19-inch rack ear pattern. Key dimensions to note:
Height: 266.7 mm (10.5 inches / 6U)
Width: 449.2 mm (with ears) / 426.7 mm (PCB only)
Depth: approximately 175 mm from front panel to rear connector ends (including installed modules)
Weight: 1.2 kg (unpopulated)
The backplane is normally delivered with two rack mounting ears and a front panel overlay showing slot numbers and module identifiers.
Cabinet Mounting Requirements
Rack Ear Installation
Mount the backplane using four M6 cage nuts and bolts (not included) on the front panel ears. Do not rely on only the slot‑mounted PCB guide rails for mechanical support. Tighten the M6 bolts to 3.5–4.0 N·m torque. For vibration‑prone environments (e.g., turbine skid enclosures), consider additional rear support brackets (part number 204-040-000-111) that attach to the backplane’s rear stiffening bar and the cabinet’s rear mounting rails.
Vertical Spacing Inside the Cabinet
When stacking multiple 204‑040‑100‑012 backplanes or installing them alongside other 6U units, leave a minimum of 1U (44.45 mm) of clear vertical space directly above and below the backplane. This prevents mutual heating and allows air to circulate around the module heatsinks. For cabinets with top‑mounted exhaust fans, this spacing also helps maintain a low‑impedance airflow path.
Horizontal Spacing to Cable Ducts
Route field cables from the backplane’s rear I/O connectors to side‑mounted cable ducts. Keep at least 50 mm of free space between the rear connector area and the inner wall of the cable duct. This space is needed to avoid bending radius violations on twisted‑pair and coaxial cables (e.g., TQ402 proximity probe cables) and to maintain service access to the rear of the rack.
Depth Clearance
The backplane plus a fully inserted module (e.g., CPUM 200‑595‑067‑114) projects approximately 185 mm behind the front panel. Ensure that cabinet rear doors or rear‑mounted components do not touch the module ejector handles or attached cables. A minimum of 250 mm from the rack front plane to the inner rear wall is recommended.
Ventilation and Cooling
Forced Airflow Configuration
The VM600 system dissipates heat mainly through natural convection on the front panels, with forced cooling recommended when more than three slots are populated with high‑power modules (CPUM, MPC4) or when the ambient temperature exceeds 40 °C. The ideal configuration is bottom‑to‑top airflow at a rate of 0.5–1.0 m/s measured at the module fronts.
In a sealed cabinet (IP54 or higher), use cabinet‑mounted filter fans or air‑to‑air heat exchangers. Do not install a fan that blows directly across the backplane at high velocity; this can create local hotspots by disrupting the natural chimney effect of the module heatsinks.
Module Pitch and Heat Dissipation
The 204‑040‑100‑012 backplane has 21 slots on a 20.32 mm pitch. The following typical slot power budgets apply:
Module Type | Rated Power (W) |
|---|
CPUM 200‑595‑067‑114 | 8 |
MPC4 200‑510‑017‑017 | 12 |
IOC4T 200‑560‑000‑016 | 5 |
IQS450 204‑450‑000‑001 | 3 |
CMC16 200‑530‑025‑014 | 7 |
The backplane itself consumes negligible power (<1 W). When total card power exceeds 40 W, the cabinet internal temperature will rise by approximately 8–12 °C above ambient with passive cooling only. Use this rule of thumb to determine whether forced ventilation is needed.
Ventilation Slots on the Backplane
The 204‑040‑100‑012 incorporates ventilation cutouts between each slot group. Do not block these openings with cable ties, labels, or dust covers. Regularly inspect these cutouts for dust buildup and clean them with dry compressed air.
Thermal Protection
Each VM600 module has an internal temperature sensor. The CPUM and MPC4 cards will issue an “Overtemperature” diagnostic alarm when the board‑level temperature exceeds 85 °C. If this alarm appears during normal operation, verify the cabinet ventilation and check that no other equipment is radiating heat onto the backplane.
Common Installation Mistakes
Missing rear support: Heavy cables (e.g., EA402 armored transmitter cables) can pull on the rear connectors and gradually loosen the backplane from the rack ears. Always use a rear support bar if the total cable weight exceeds 1 kg.
Zero vertical gap: Installing another 6U unit directly above the backplane without a 1U spacer can raise the internal temperature by 10 °C and cause nuisance thermal alarms.
Side duct obstruction: Pushing cable ducts too close to the rear connector block makes it impossible to disconnect field cables without removing the entire rack. Keep the 50 mm service clearance.
Incorrect ear torque: Overtightening the M6 rack screws can crack the PCB mounting holes; undertightening leads to vibration‑induced signal noise on the backplane bus.
Inspection and Preventive Maintenance
During quarterly cabinet inspections, check that all rack ear bolts are still at the specified torque.
Verify that the ventilation cutouts are free of debris.
Measure the ambient temperature at the air intake side; if it exceeds 40 °C, consider adding a cooling fan.
Inspect the backplane connectors for signs of fretting corrosion (dark discoloration); clean with isopropyl alcohol and reseat modules if necessary.
