Basic Product Identification

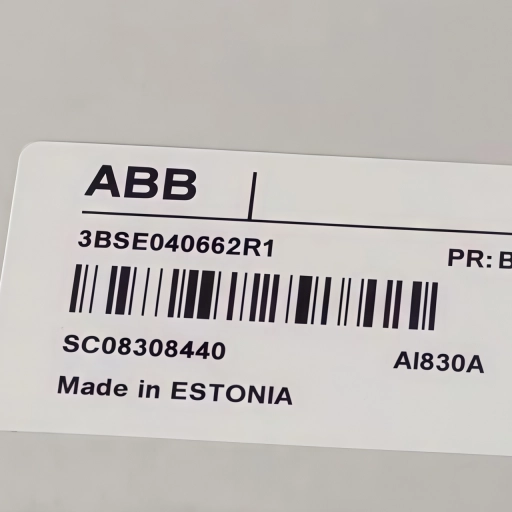

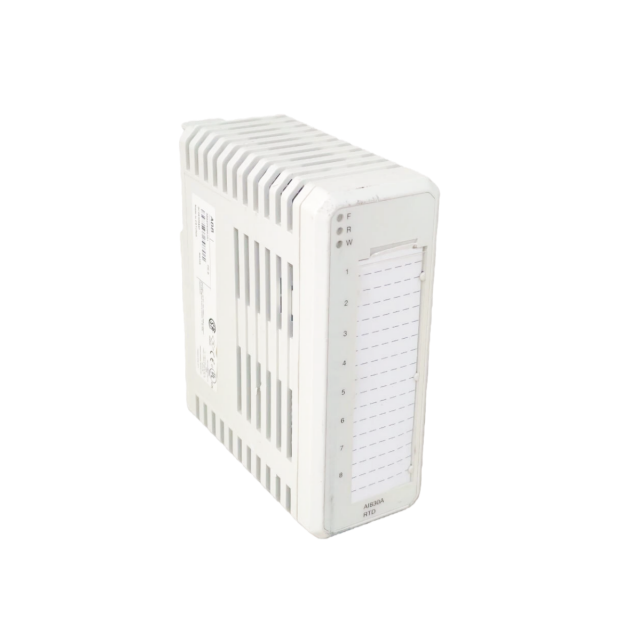

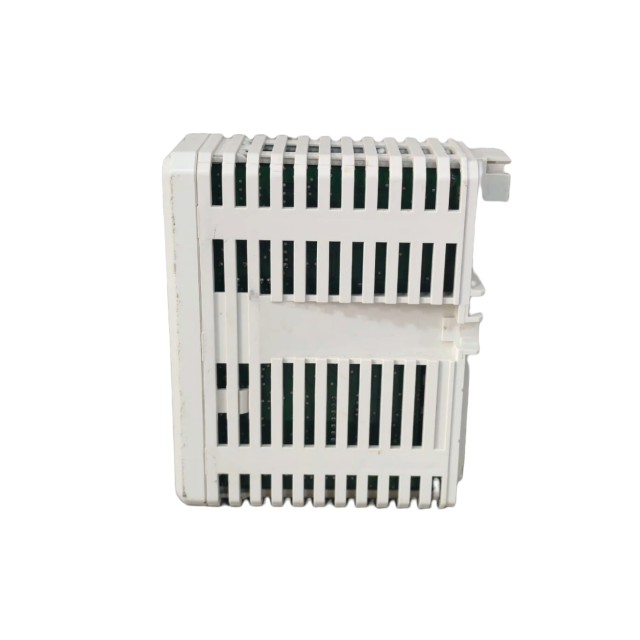

The AI830A (Product ID: 3BSE040662R1) is an analog input module developed by ABB, part of the
S800 I/O product line for the ABB Ability™ System 800xA. It is specifically designed as an RTD input
module, dedicated to measuring temperature via resistive elements (RTDs) with 3-wire connections,
and requires all connected RTDs to be isolated from ground. The module supports linearization and
conversion of temperature data to Centigrade or Fahrenheit directly on-board, eliminating the need
for additional processing by upper-level controllers.
Key Technical & Operational Specifications
Signal & Channel Details: Features 8 independent channels for 3-wire RTD inputs, compatible with
Pt100, Cu10, Ni100, Ni120 resistive sensors, and resistive potentiometers. It does not support HART
communication, SOE (Sequence of Events) functionality, redundancy, or intrinsic safety.
Performance Parameters: Offers 14-bit resolution, with an update cycle time of 150 + 95 × (number of
active channels) ms. Measurement error depends on field cable resistance (Rerr = R × (0.005 +
∆R/100); Terr°C = Rerr / (R0 × TCR); Terr°F = Terr°C × 1.8), and it provides high noise rejection (CMRR
>120 dB at 50/60 Hz with 10Ω load; NMRR >60 dB at 50/60 Hz).
Isolation & Electrical Ratings: Features groupwise isolation from ground, with a rated insulation
voltage of 50 V and dielectric test voltage of 500 V a.c. Power dissipation is 1.6 W, with current
consumption of 70 mA ( +5 V Modulebus), 50 mA ( +24 V Modulebus), and 0 mA ( +24 V external).
Supervision & Status Indication: Monitors inputs for open-circuit, short-circuit, and grounded sensors.
Equipped with front LEDs (Fault, Run, Warning) for status indication, including module error, module
warning, and individual channel errors (8 channels).
Physical Dimensions & Weight: Measures 45 mm in width, 102 mm in depth (111 mm including
connector), and 119 mm in height, with a net weight of 0.22 kg (0.49 lbs.). It has a protection class of
IP20 (IEC 60529) and uses keying code "AF".
