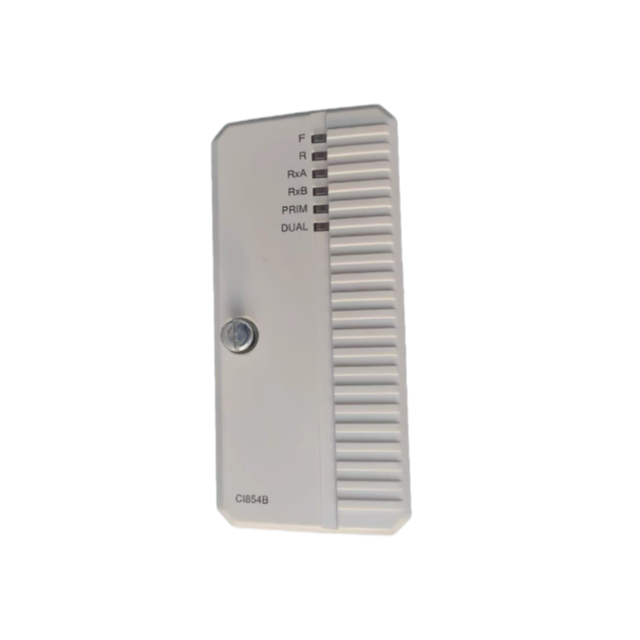

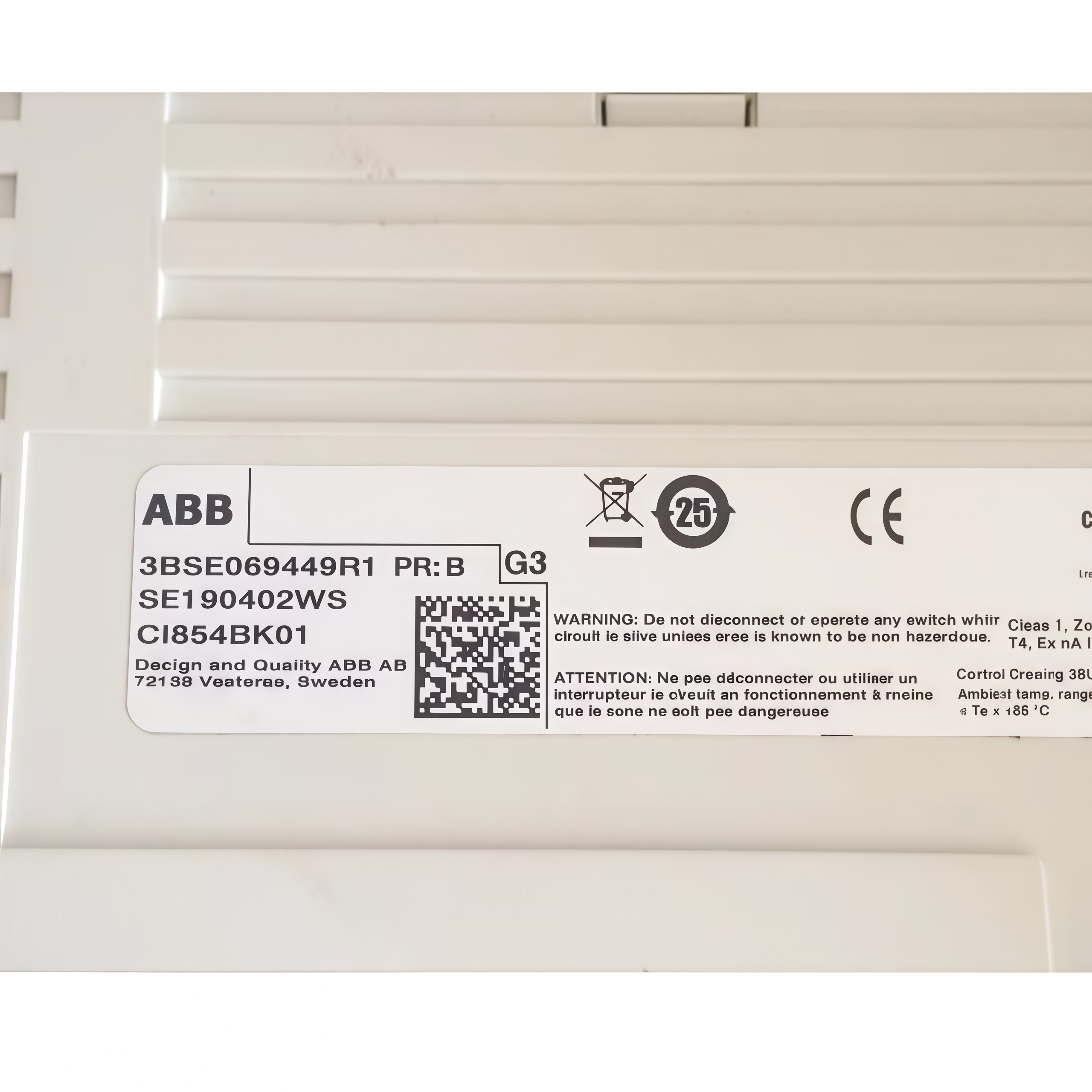

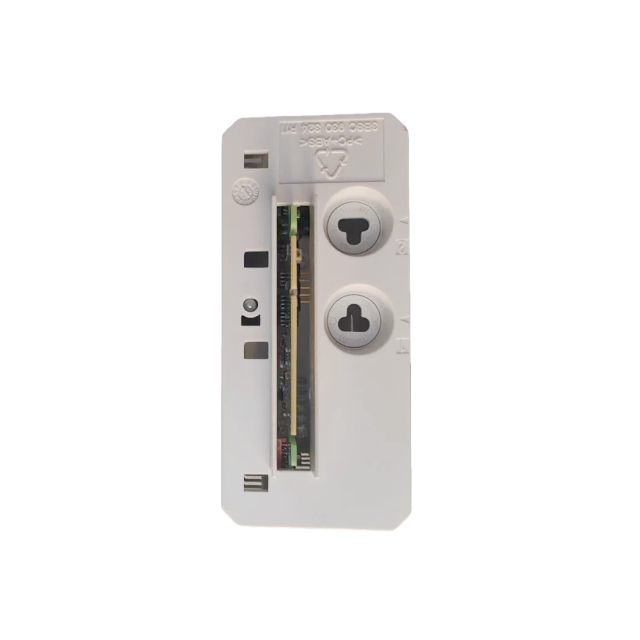

ABB CI854BK01 3BSE069449R1 Hardware selector

Model Number: CI854BK01

Article Number: 3BSE069449R1

Product Type: PROFIBUS DP-V1 Communication Interface Module

Core Composition: Includes CI854BK01 communication interface and TP854 baseplate.

Key Features: Dual PROFIBUS ports (line redundancy), master redundancy support, hot-swap

capability, compatibility with HI Controller, and connection to PROFIBUS PA via LD 800P linking

device.

Compatibility: Only works with System 800xA 6.0.3.2, Compact Control Builder 6.0.0-2 and later

versions.

Application Scope: Connects remote I/O, drives, low-voltage electrical equipment, and fieldbus

instruments to AC 800M controllers; compatible with S800 I/O system, PROFIBUS DP/DP-V1, and

FOUNDATION Fieldbus systems.

Protocol: PROFIBUS DP-V1.

Role: Master.

Number of Channels/Ports: 2 (supports line redundancy).

Transmission Speed: 9.6 kbit/s to 12,000 kbit/s (12 Mbit/s).

Redundancy Support: Line redundancy (dual ports) and master redundancy (with two CI854B modules); combinable with CPU redundancy and CEXbus redundancy (BC810).

Connector Type: 9-pin DB female.

Power Consumption (24 V DC): Typical 190 mA.

Hot Swap: Supported.

Termination Requirement: PROFIBUS DP bus must be terminated at the two outermost nodes (via

connectors with built-in termination, requiring power supply).

Operating Temperature: 0 to +55 °C (+32 to +131 °F).

Storage Temperature: -40 to +70 °C (-40 to +158 °F).

Pollution Degree: Degree 2 (IEC/EN 61131-2).

Corrosion Protection: ISA 71.04 G3 compliant.

Protection Class: IP20 (EN 60529, IEC 529).

Dimensions (W×H×D): 59 mm (2.3 in.) × 185 mm (7.3 in.) × 127.5 mm (5.0 in.).

Weight (Including Baseplate): 700 g (1.5 lbs.).

Mounting: DIN rail mountable (via included TP854 baseplate).
