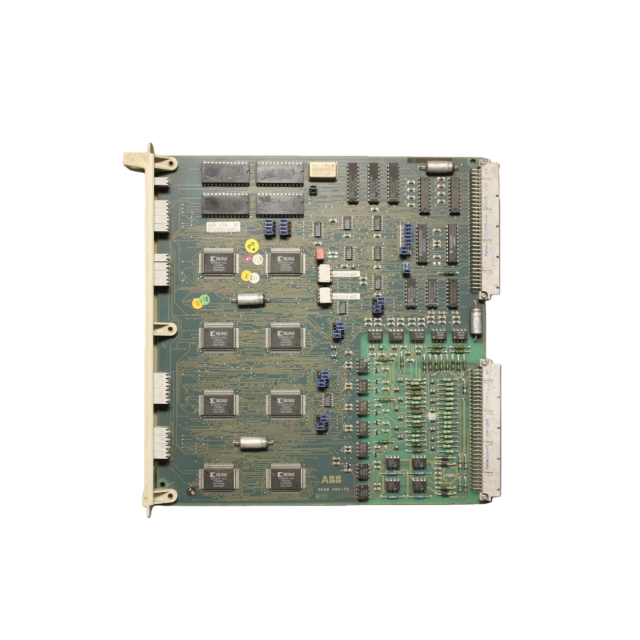

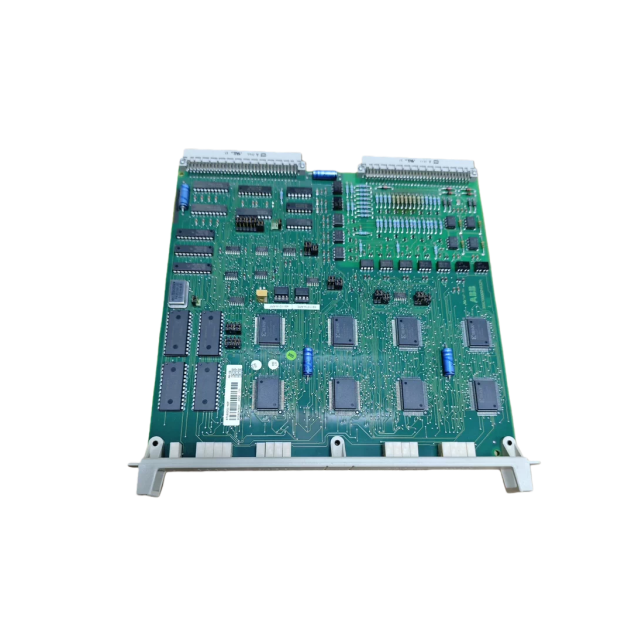

ABB DSDP 170 (57160001-ADF) is a Pulse Counting Board for ABB systems, capturing/processing high-speed pulse signals. It supports precise counting, has isolation protection, works stably in industrial environments, ensuring accurate data for control.
Technical Description of DSDP 170 (Part Number: 57160001-ADF)
1. Product Overview and Core Identity
The DSDP 170 (part number: 57160001-ADF) is a high-performance Pulse Counting Board developed by ABB, belonging to the S100 I/O module family. It is specifically engineered for precision industrial measurement applications, integrating dual core functions: position/length measurement (via pulse counting) and speed/frequency measurement (via pulse frequency analysis). Designed to handle high-speed pulse signals with a maximum frequency of 2.5 MHz, this board is ideal for demanding automation scenarios such as high-speed motor speed control, precision conveyor positioning, and industrial process length metering—where real-time, accurate data acquisition is critical.
Notably, the DSDP 170 is exempt from the RoHS Directive (2011/65/EU) under Article 2(4)(c), (e), (f), and (j), as validated in ABB’s EU Declaration of Conformity (document: 3BSE088609). This exemption applies to equipment used in critical industrial process control systems, aligning with its role in supporting high-reliability automation infrastructure. Classified as an I-O_Module, it serves as a vital interface between pulse-generating field devices (e.g., high-speed encoders) and upper-level controllers (e.g., ABB Advant Controller 450, 800xA DCS).
2. Ordering and Identification
2.1 Ordering Information

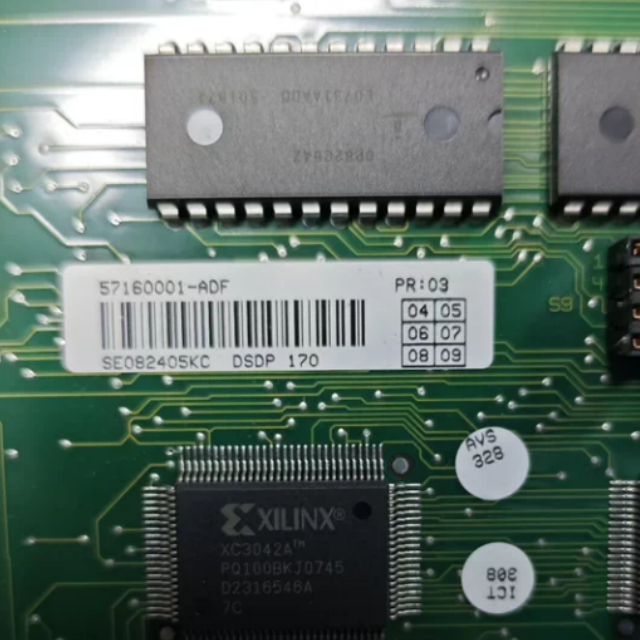

Primary Part Number: 57160001-ADF (must be referenced for accurate ordering to ensure compatibility with target control systems and S100 I/O enclosures).
ABB Type Designation: DSDP 170 (official ABB product identifier for cross-referencing technical documentation, spare parts, and customer support).
Catalog Description: "DSDP 170 inc. Pos. and Speed meas." (concise summary of core functions—position/speed measurement—for quick product recognition).
Physical & Environmental Tolerance
Dimensions: 222mm × 21mm × 232mm (compact form factor for dense rack installations, fitting standard industrial control cabinet spaces)
Weight: 0.42kg (lightweight design reduces rack load and simplifies on-site handling and installation)
Installation: 35mm DIN rail (tool-less mounting for rapid deployment, module replacement, and system upgrades)
Environmental Ratings:
Operating temperature: -25°C to +60°C
Storage temperature: -40°C to +85°C
Relative humidity: 5–95% (non-condensing)
Protection class: IP20 (suitable for control cabinets, preventing intrusion of solid particles larger than 12.5mm and direct water splashing)
Compliance: Meets EU directives 2014/30/EU (EMC) and 2014/35/EU (LVD); exempt from EU Directive 2011/65/EU (RoHS) per Article 2(4) (for industrial control components); electromagnetic immunity compliant with industrial-grade IEC 61000-6-2 standards.
▲Benefits
Fast Quotation & Quick Shipping
We offer full pre-sale and after-sale support to quickly address your needs.
Our staff works diligently to provide timely responses to all inquiries.
▲Warranty Service
One-year Warranty
Goods return is accepted for a hassle-free experience.
We keep our promises, ensuring customer satisfaction.
▲Our Advantages
Professional Service
Our experienced technical team provides expert sales support and maintenance services, backed by long-term warranty coverage to ensure the reliable operation of your equipment.
Extensive Inventory
We maintain a broad range of products in stock, including discontinued and rare items, to fulfill customer requirements in a timely manner.
Superior Market Insight
Through comprehensive global market analysis, we operate both physical and online stores, offering clients quality products at competitive prices in a short time frame.
Win-Win Business Philosophy
We uphold a win-win philosophy, fostering long-term and stable partnerships with clients for mutual growth.
Advanced Signal Processing & Channel Configuration
Equipped with 24 input + 24 output dual-channel groups, supporting simultaneous high-precision digital signal acquisition and real-time output control—ideal for complex closed-loop control scenarios (e.g., industrial process regulation, smart manufacturing equipment coordination).
Supports high-speed signal sampling (up to 2kHz) and multi-mode data processing (including edge detection, pulse counting), meeting the response requirements of time-sensitive industrial processes.
Enhanced Isolation & Anti-Interference Design
Adopts triple optical isolation (input circuits, output circuits, and main control unit), effectively blocking ground loops, electrical noise, and back electromotive force (EMF) from inductive loads.
Features ±8 kV contact discharge and ±15 kV air discharge electrostatic protection, avoiding component damage during installation, maintenance, or signal switching.
Complies with IEC 61000-6-2 electromagnetic compatibility (EMC) standards, resisting interference from on-site frequency converters, high-voltage motors, and other equipment—ensuring stable signal transmission and processing.
Space-Saving Installation & Durable Construction
Slim 21mm height optimized for dense DIN rail mounting, saving space in control cabinets for multi-module integrated systems (e.g., paired with I/O modules and communication modules).
Tool-less 35mm DIN rail installation reduces on-site setup time, enabling quick module replacement during maintenance or system expansion.
High-grade engineering plastic housing with corrosion-resistant metal terminals, withstanding harsh industrial conditions (temperature fluctuations, humidity) and extending long-term service life.
