ABB DSDO 131 is a 16-channel Digital Output Board for 800xA/Advant systems, with 24VDC output, 0.5A per channel. It drives actuators/relays, has isolation & diagnostics, ensuring reliable industrial control.

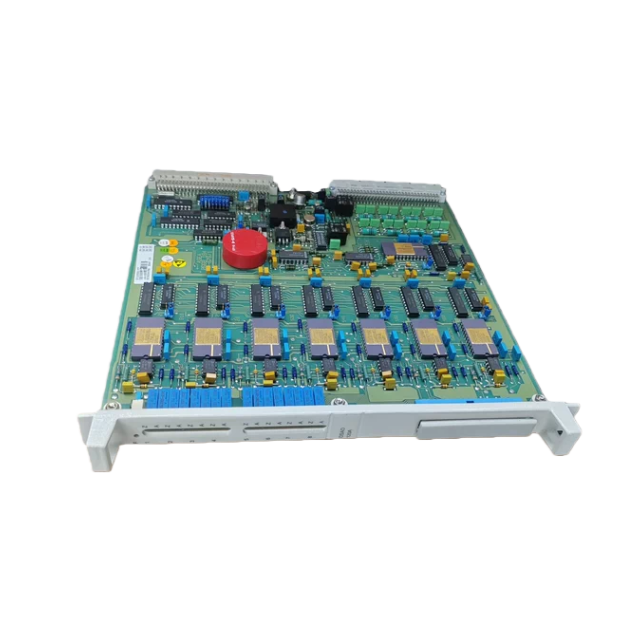

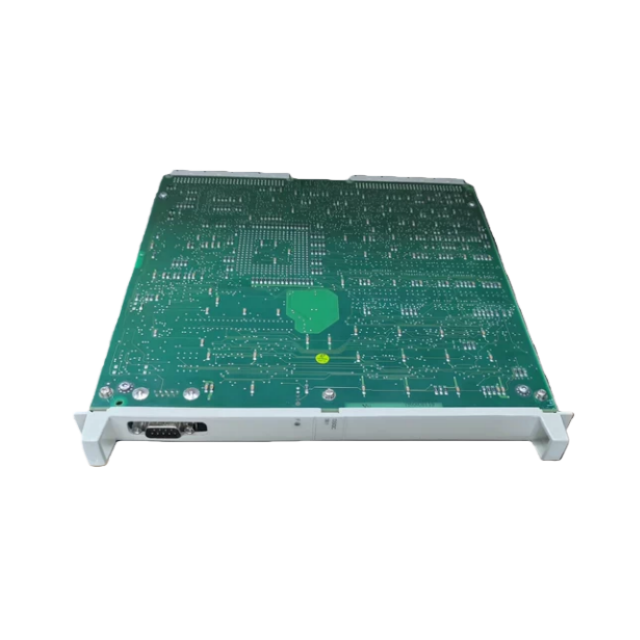

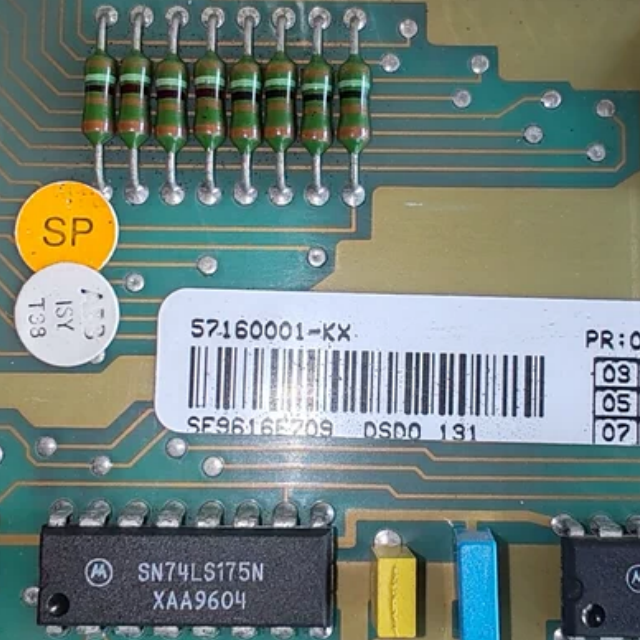

Technical Description of DSDO 131 (Part Number: 57160001-KX)
1. Product Overview and Core Identity
The DSDO 131 (part number: 57160001-KX) is a 16-Channel Digital Output Unit designed by ABB, belonging to the S100 I/O module family. It serves as a versatile interface component in industrial control systems, translating digital control signals from upper-level controllers (e.g., ABB 800xA DCS, Advant MasterPiece 200) into relay-driven outputs to control a wide range of AC/DC field devices. With support for both 0–240 V AC and DC loads, and high load capacity (48 W DC / 720 VA AC), this unit is ideal for applications such as industrial lighting control, motor starter activation, valve actuation, and other medium-to-high power switching tasks in manufacturing, energy, and process automation sectors.
Notably, the DSDO 131 is exempt from the RoHS Directive (2011/65/EU) under Article 2(4)(c), (e), (f), and (j), as validated in ABB’s EU Declaration of Conformity (document: 3BSE088609). This exemption applies to equipment used in critical industrial process control systems, aligning with its role in supporting robust, long-service-life automation infrastructure. Classified as a "Digital Output Unit," it leverages relay-based switching to ensure reliable isolation between control signals and high-voltage/current field loads.
2. Key Notes for Installation and Use
Mounting: Designed for rack mounting within ABB S100 I/O enclosures. Follow ABB’s S100 I/O Installation Manual for proper alignment, wiring, and grounding—critical for safety when switching high AC/DC voltages. Ensure the enclosure provides adequate ventilation to dissipate heat from relays during prolonged operation.
Load Compatibility: Verify that connected loads do not exceed the unit’s maximum capacity (48 W DC / 720 VA AC). Overloading may cause relay damage, overheating, or electrical hazards. For inductive loads (e.g., motors, solenoids), use external surge suppression (e.g., MOVs, flyback diodes) to protect relay contacts.
Regulatory Documentation: Retain ABB’s EU Declaration of Conformity (3BSE088609) for regulatory audits, as the product is RoHS-exempt.
End-of-Life Disposal: Dispose of the unit in compliance with local WEEE regulations (Category 5) to minimize environmental impact. Relay components may require separate handling per local electronic waste guidelines.
Physical & Environmental Tolerance
Dimensions: 220mm × 20mm × 230mm (compact form factor for dense rack installations, fitting standard industrial control cabinet spaces)
Installation: 35mm DIN rail (tool-less mounting for rapid deployment and module replacement)
Environmental Ratings:
Operating temperature: -25°C to +60°C
Storage temperature: -40°C to +85°C
Relative humidity: 5–95% (non-condensing)
Protection class: IP20 (suitable for control cabinets, preventing solid particle intrusion and direct water splashing)
Compliance: Meets EU directives 2014/30/EU (EMC) and 2014/35/EU (LVD); exempt from EU Directive 2011/65/EU (RoHS) per Article 2(4) (for industrial control components); electromagnetic immunity compliant with industrial-grade IEC 61000-6-2 standards.
▲Benefits
Fast Quotation & Quick Shipping
We offer full pre-sale and after-sale support to quickly address your needs.
Our staff works diligently to provide timely responses to all inquiries.
▲Warranty Service
One-year Warranty
Goods return is accepted for a hassle-free experience.
We keep our promises, ensuring customer satisfaction.
▲Our Advantages
Professional Service
Our experienced technical team provides expert sales support and maintenance services, backed by long-term warranty coverage to ensure the reliable operation of your equipment.
Extensive Inventory
We maintain a broad range of products in stock, including discontinued and rare items, to fulfill customer requirements in a timely manner.
Superior Market Insight
Through comprehensive global market analysis, we operate both physical and online stores, offering clients quality products at competitive prices in a short time frame.
Win-Win Business Philosophy
We uphold a win-win philosophy, fostering long-term and stable partnerships with clients for mutual growth.
High-Capacity Channel & Load Adaptability
Equipped with 32 independent digital output channels, grouped into 8 sets of 4 channels for organized load management—supporting simultaneous control of multiple actuators (e.g., relays, solenoid valves, indicator lights) in large-scale systems.
Compatible with 24V DC load voltage, with a maximum load current of 1A per channel (total board current up to 8A)—matching most low-voltage industrial control device requirements and ensuring stable power supply.
Robust Isolation & Anti-Interference Design
Adopts optical isolation technology between output circuits and the main control unit, effectively blocking back electromotive force (EMF) from inductive loads and reducing electrical noise interference.
Features ±8 kV contact discharge and ±15 kV air discharge electrostatic protection, avoiding component damage during installation, maintenance, or load switching.
Complies with IEC 61000-6-2 electromagnetic compatibility (EMC) standards, resisting interference from on-site frequency converters, high-voltage motors, and other equipment—ensuring reliable output signal transmission.
Space-Saving Installation & Durable Construction
Slim 20mm height optimized for dense DIN rail mounting, saving space in control cabinets for multi-module configurations (e.g., paired with digital input boards in integrated systems).
Tool-less 35mm DIN rail installation reduces on-site setup time, enabling quick module replacement during system maintenance or upgrades.
High-grade engineering plastic housing with corrosion-resistant metal terminals, withstanding harsh industrial conditions (temperature fluctuations, humidity) and extending long-term service life.
