ABB PM511V16 3BSE011181R1: Processor Module Overview and Applications

What the ABB PM511V16 3BSE011181R1 Does

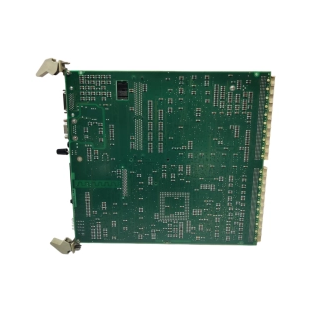

The ABB PM511V16, part number 3BSE011181R1, is a processor module for the ABB Advant Controller 450 automation platform. It is the central computing unit that executes control logic, manages I/O data exchange, and coordinates communication between the backplane, field devices, and HMI engineering stations.

In legacy ABB Advant OCS installations, the PM511V16 remains a critical replacement part. Plants keep these systems in service because full DCS migration is expensive and requires extended production interruption. A failed processor module can stop an entire control loop, making accurate part matching and fast delivery essential.

Key Functions of the PM511V16

• Executes application programs for continuous and batch process control.

• Handles real-time data exchange with I/O modules through the Advant backplane.

• Supports communication with operator stations and engineering tools.

• Provides diagnostic data for module status, hardware faults, and system alarms.

• Retains program and configuration data using battery-backed memory in most installations.

The module is designed for 19-inch rack mounting inside industrial control cabinets. It works as part of a modular DCS architecture, not as a standalone PLC. Replacement decisions must therefore consider rack compatibility, firmware version, and the existing I/O configuration.

Technical Specifications Overview

Specifications may vary with hardware revision. Always confirm the exact part number and revision before ordering a replacement.

Typical Industrial Applications

The PM511V16 is used in process control and machine control environments where ABB Advant Controller 450 systems remain operational.

• Power generation: steam turbine auxiliary systems, boiler control, generator set monitoring.

• Oil and gas: compressor station automation, wellhead control panels, pipeline monitoring.

• Petrochemical: reactor loop control, batch sequencing, process unit automation.

• Water and wastewater: pump station control, filtration, chemical dosing, municipal water treatment.

• Metals and mining: continuous casting control, furnace automation, material handling.

• Pulp and paper: stock preparation, dryer control, paper machine drives.

In these industries, the processor module must maintain deterministic response and stable communication under continuous duty.

Common Reasons for PM511V16 Replacement

• Processor module does not start or fails self-test at power-up.

• Communication loss between the processor and I/O modules or operator station.

• Battery failure leading to memory loss or configuration reset.

• Long-term thermal stress after 10–20 years of continuous operation.

• Backplane connector damage from improper removal or installation.

• Firmware mismatch after previous replacement with an incorrect processor version.

Installation and Replacement Checklist

1. Verify full part number and hardware revision: 3BSE011181R1.

2. Back up the application program and configuration from the existing system.

3. Confirm the module slot position and rack compatibility.

4. Inspect backplane connector pins for bending, corrosion, or wear.

5. Check the battery condition if the existing module is battery-backed.

6. Remove old module using electrostatic discharge protection.

7. Insert replacement module firmly and secure the retention screws.

8. Run system diagnostics and confirm communication with I/O modules.

9. Verify control loops respond correctly before returning to production.

How to Source a Reliable ABB PM511V16

When purchasing a replacement PM511V16, verify the following:

• Full part number and revision: 3BSE011181R1

• Physical condition of connectors and battery holder

• Functional test certification or test report

• Supplier warranty and return policy

• Available inventory and delivery time

• Compatibility with the existing Advant Controller 450 configuration

Joyoung International Trading Co., Limited supplies ABB automation spare parts, including processor modules for legacy Advant OCS systems. The company supports technical matching for PLC and DCS modules and provides process control spare parts for global clients.

For ABB part availability and system compatibility questions, contact chen@htechplc.com or +86-181-5013-7565.

For related ABB modules and CPU spare parts, see ABB automation parts and CPU module sourcing.

FAQ

Is the ABB PM511V16 3BSE011181R1 still available?

Yes, through specialized industrial spare parts suppliers and legacy system support channels. Stock levels vary depending on demand and revision.

Can I replace a PM510V16 with a PM511V16?

In some Advant Controller 450 configurations, the PM511V16 can replace the PM510V16, but firmware, memory, and backplane compatibility must be verified first. Do not assume drop-in compatibility without checking ABB application documentation.

What causes a PM511V16 processor module to fail?

Common causes include power supply faults, battery failure, backplane connector damage, electrostatic discharge during handling, and long-term thermal stress in harsh industrial environments.

How do I verify compatibility before ordering a replacement?

Confirm the full part number, hardware revision, rack slot position, and existing I/O configuration against the system documentation. A technical supplier can help with part matching and verification.

What should I check if the PM511V16 is not starting?

Check the power supply voltage, backplane connection, battery condition, and LED diagnostic indicators. If the module still does not start, a functional replacement is usually required.
