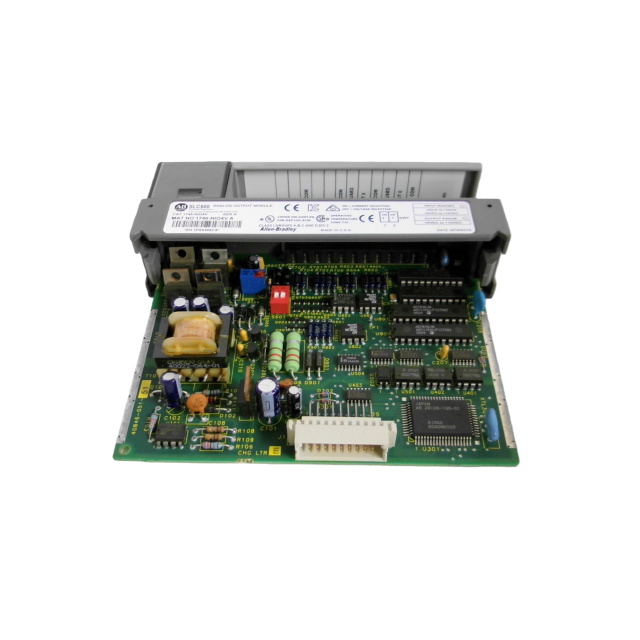

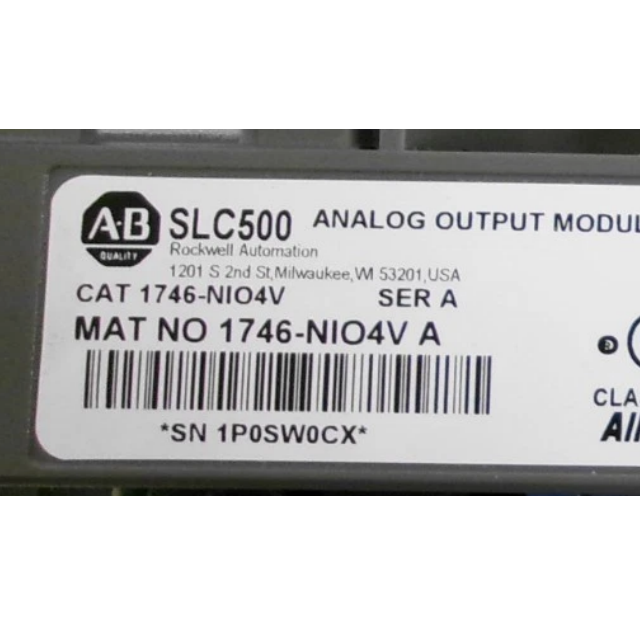

Allen Bradley 1746-NIO4V SLC 500 High Resolution Combination Module

The 1746-NIO4V is a combination analog I/O module belonging to Allen-Bradley’s SLC™ 500 series (product series: Bul. 1746 / 1747), designed for compact PLC systems. It integrates 2 analog input channels and 2 analog output channels in a single slot, making it suitable for industrial scenarios that require both signal collection and control output (such as closed-loop control of temperature, pressure, and flow).

Each input channel supports user-selectable voltage or current signals via DIP switches, while the output channels are dedicated to voltage signals. The module features 16-bit resolution for inputs and 14-bit resolution for outputs, ensuring high-precision signal conversion. It incorporates a 6-pole Gaussian digital filter for input channels to suppress high-frequency noise, and all analog common terminals (ANL COM) are internally connected, with channels grouped isolated from ground but not individually isolated.

It is compatible with SLC 500 modular and fixed controllers, drawing power from the system backplane without the need for an external 24V DC power supply. The module comes with a removable terminal block for easy wiring and maintenance, and supports programming functions such as signal scaling, range checking, and retentive output via SLC 500 programming software. It receives continued technical support and lifecycle management services from Rockwell Automation, ensuring reliable operation in industrial environments.

Core Specifications: 2 differential analog input channels (voltage/current selectable per channel) and 2 analog voltage output channels. Input signal ranges include -10 to +10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC (voltage) and -20 to +20 mA, 0 to 20 mA, 4 to 20 mA (current). Output voltage range is -10 to +10 V DC (±1 LSB).

Performance Metrics: Input converter resolution 16-bit, repeatability ±1 LSB, non-linearity 0.01%; output converter resolution 14-bit, non-linearity 0.05%. Input overall accuracy at 25 °C (77 °F) max ±0.284% of full scale, at 0–60 °C (32–140 °F) max ±0.504% of full scale. Output overall accuracy at 25 °C (77 °F) max ±0.208% of full scale, at 0–60 °C (32–140 °F) max ±0.384% of full scale.

Signal Processing: Input common mode rejection at 60 Hz (min) 105 dB, normal mode rejection at 60 Hz (min) 55 dB, channel bandwidth 10 Hz, step response (95% settling) 60 ms. Output step response (95% settling) 2.5 ms.

Electrical Parameters: Input impedance 1 MΩ (voltage), 250 Ω (current); output load range 1 KΩ to ∞, maximum load current 10 mA. Field wiring to backplane isolation 500 V DC. Input overvoltage protection supports 220 V AC/DC continuously (across IN+ to IN-).

Power Consumption: Backplane current draw max 55 mA (5 V DC) and 115 mA (24 V DC); no external 24 V DC power supply required.

Environmental Adaptability: Operating temperature 0–60 °C (32–140 °F), storage temperature -40–85 °C (-40–185 °F). Relative humidity 5–95% (non-condensing), compliant with NEMA Standard ICS 2-230 for noise immunity.

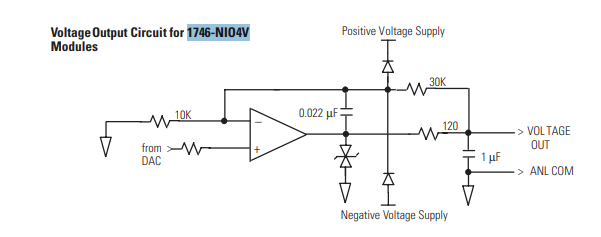

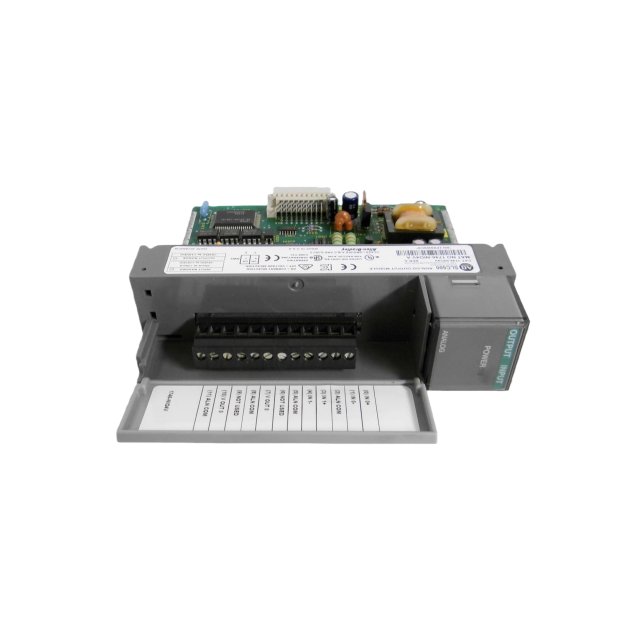

Mechanical & Wiring: Recommended cable is shielded Belden #8761, maximum wire size #14 AWG. Terminal torque 0.565 Nm (5 lb-in). Module dimensions match SLC 500 single-slot design, with a removable terminal block.

Programming & Addressing: Module ID code 3202. Input channels addressed as 2 words (I:e.0, I:e.1) and output channels as 2 words (O:e.0, O:e.1) in the I/O image table (e = slot number). Supports scaling via standard math, SCL (Scale), or SCP (Scale with Parameters) instructions.

Certifications & Compliance: C-UL Listed for Class 1, Div 2 hazardous locations; compliant with EMC directives (EN 50081-2, EN 50082-2) and relevant safety standards.
