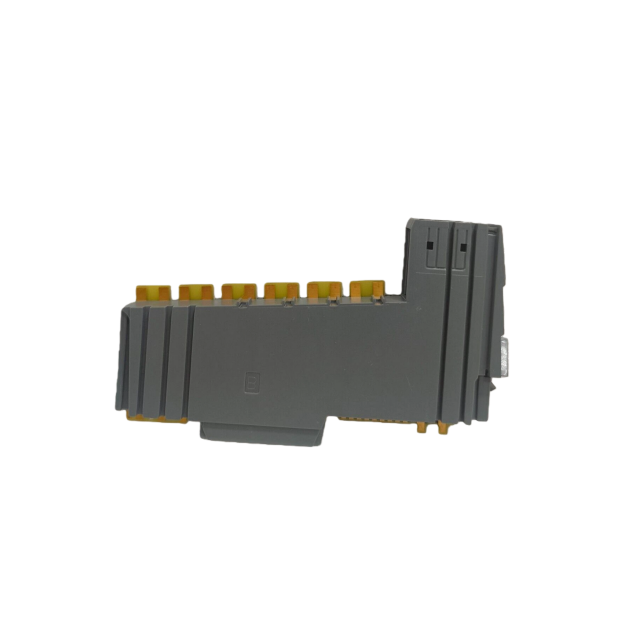

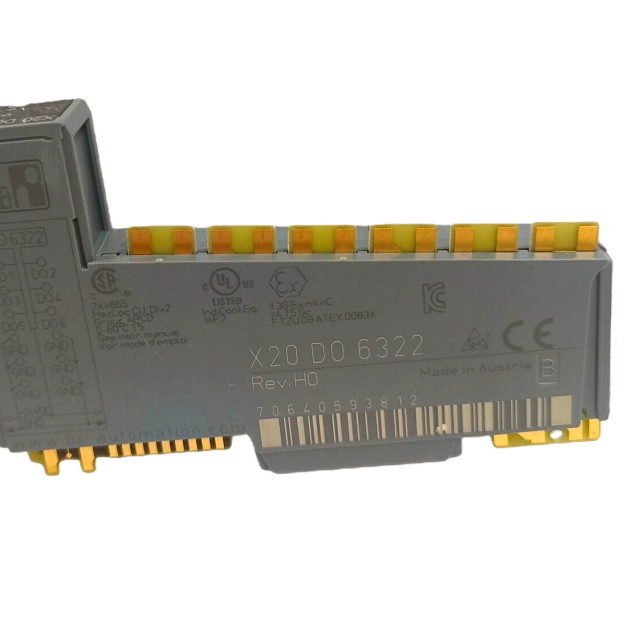

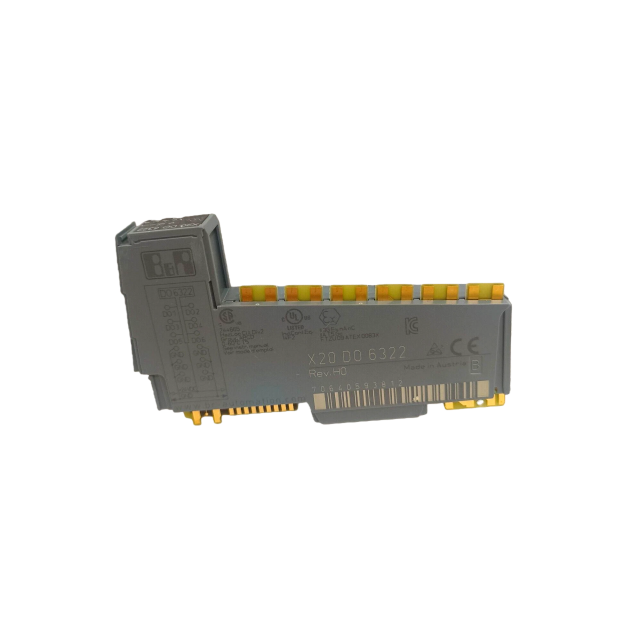

Core Product Overview
| Attribute | Details |
| Product Model | B&R X20DO6322 |
| Product Type | Digital Output (DO) Module |
| Manufacturer | B&R Industrial Automation GmbH |
| Target System | B&R X20 Automation System |
| Key Application | Actuator control, valve switching, status indication, process automation |
Description:The B&R X20DO6322 is a high-reliability digital output module from the X20 automation
system, engineered for industrial applications requiring precise 24 VDC discrete output control.
Equipped with 6 source-type outputs (1- or 2-wire configurable), it integrates built-in short-
circuit/overload protection, OSP (Operator Set Predefined) mode, and real-time output monitoring—
ideal for controlling actuators, valves, and indicators in process automation, manufacturing, and
marine environments. Below is a structured, visually refined breakdown of its core specifications and
functional details.
Physical & Environmental Specifications
| Specification | Details |
| Mechanical | - Mounting: Horizontal/vertical (both permitted) - Pitch: 12.5 ±0.2 mm - Required Accessories: X20BM11/X20BM15 (bus module), X20TB06/X20TB12 (terminal block) |
| Environmental Conditions | - Operating Temperature: -25 to 60°C (horizontal); -25 to 50°C (vertical) - Storage/Transport Temperature: -40 to 85°C - Relative Humidity: 5–95% (non-condensing) - Altitude: 0–2000 m (no limitation); >2000 m (0.5°C reduction per 100 m) - Protection Rating: IP20 (per EN 60529) |
| Marine Certifications | DNV (Temperature: B; Humidity: B; Vibration: B; EMC: B), BV (EC33B), ABS, LR (ENV1), CCS |

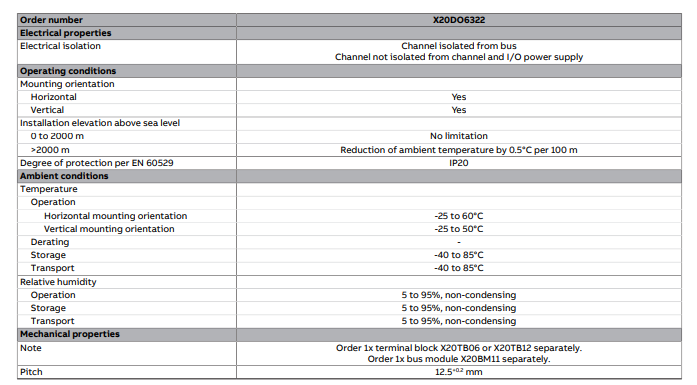

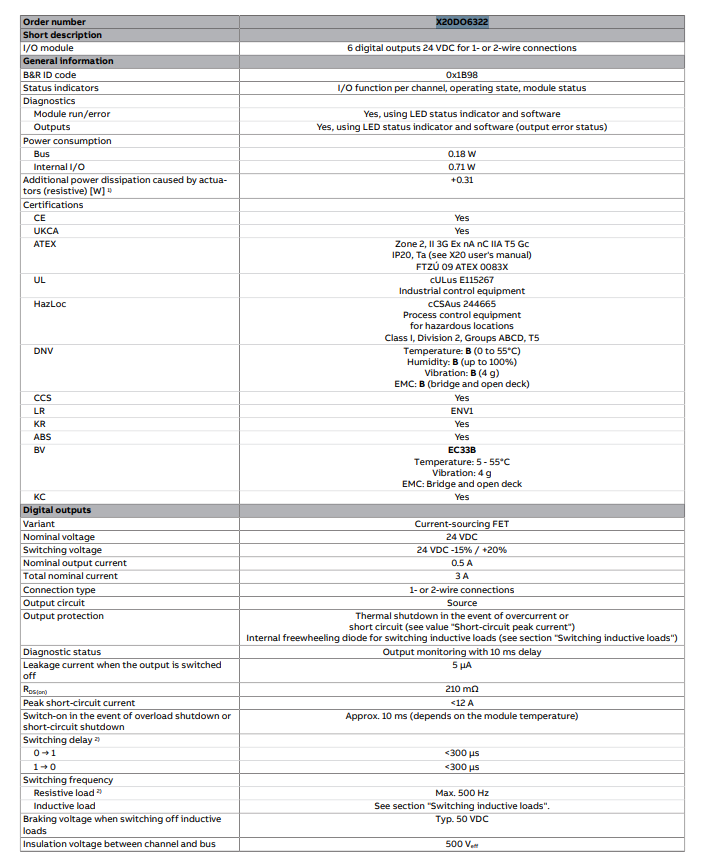

Technical data
![X20DO6322(1)]()
![X20DO6322(2)]()
