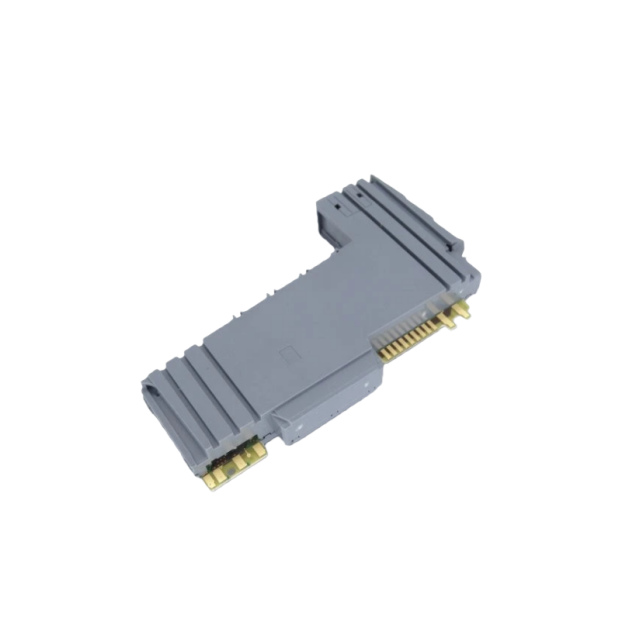

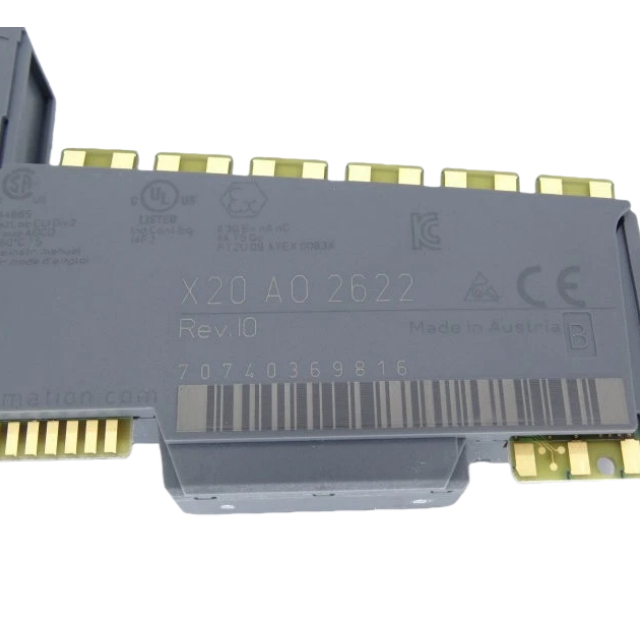

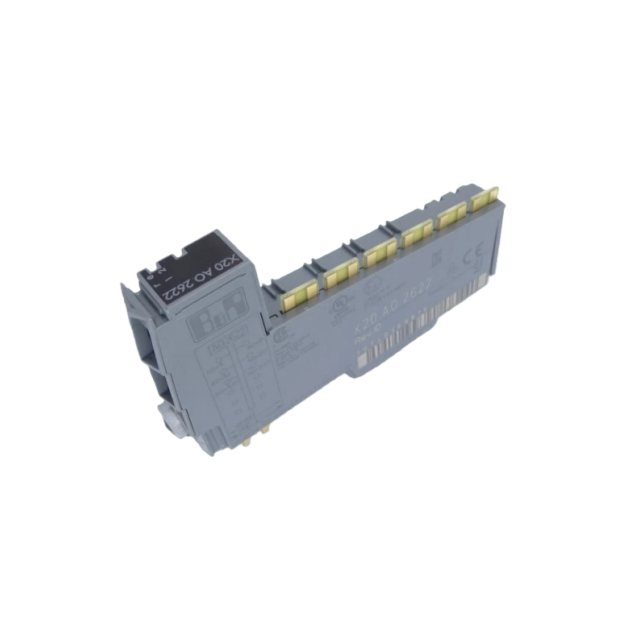

Core Information of X20AO2622
X20AO2622 is a 2-channel analog output module from B&R’s X20 product series, designed for
industrial automation systems. It supports both voltage (±10 V) and current (0–20 mA / 4–20 mA)
output signals, featuring 13-bit converter resolution, short-circuit protection, and compliance with
multiple industrial certifications, making it suitable for process control, actuator driving, and other
precision analog signal output scenarios.
●Model Number: X20AO2622
●Product Series: B&R X20 I/O System
●Core Function: Provides 2 independent analog output channels, configurable for voltage or current
signals via terminal selection, enabling precise control of industrial actuators and instruments.
Key Features: 13-bit (including sign) digital converter resolution, short-circuit proof design, internal
enable relay for startup, and support for multiple function models (standard, fast reaction, bus
controller).
●Application Scope: Industrial automation systems (e.g., process control, manufacturing equipment),
compatible with hazardous locations (Class I, Division 2 / Zone 2) and general industrial environments.
Environmental & Operational Traits
Operating Temperature: -25 to 60°C (horizontal mounting); -25 to 50°C (vertical mounting).
Storage/Transport Temperature: -40 to 85°C.
Relative Humidity: 5–95% (non-condensing).
Degree of Protection: IP20 (per EN 60529).
Mounting Orientation: Horizontal or vertical; Installation Elevation: ≤2000 m (derate 0.5°C per 100 m
above 2000 m).
Pitch: 12.5 +0.2 mm.
Electrical Parameters
■Output Signal Types:
Voltage: ±10 V DC (1 LSB = 2.441 mV, ±12-bit effective resolution)
Current: 0–20 mA / 4–20 mA (1 LSB = 4.883 µA, 12-bit effective resolution)
■Output Performance:
Maximum Output Current: 10 mA (voltage >5 V), 15 mA (voltage <5 V); current limiting ±40 mA
(short-circuit protection).
Conversion Time: 200 µs for all outputs; Settling Time: 1 ms (full-range change).
Accuracy: Gain error ≤0.15%, Offset error ≤0.05%; Nonlinearity <0.007%.
Load Requirements: Voltage output ≥1 kΩ; Current output ≤600 Ω (Rev. ≥ J0) / ≤500 Ω (Rev. < J0).
■Power Consumption: Bus power: 0.01 W; Internal I/O power: 1.1 W (additional actuator power
dissipation not included).
