Core Information of X20DI6371

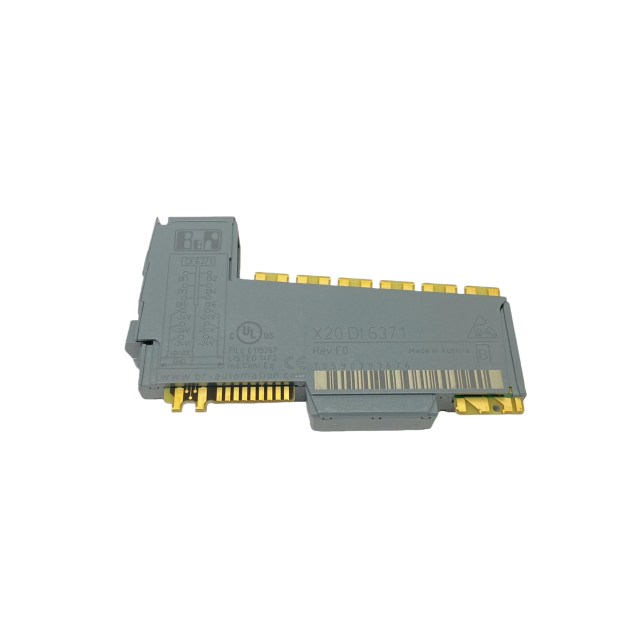

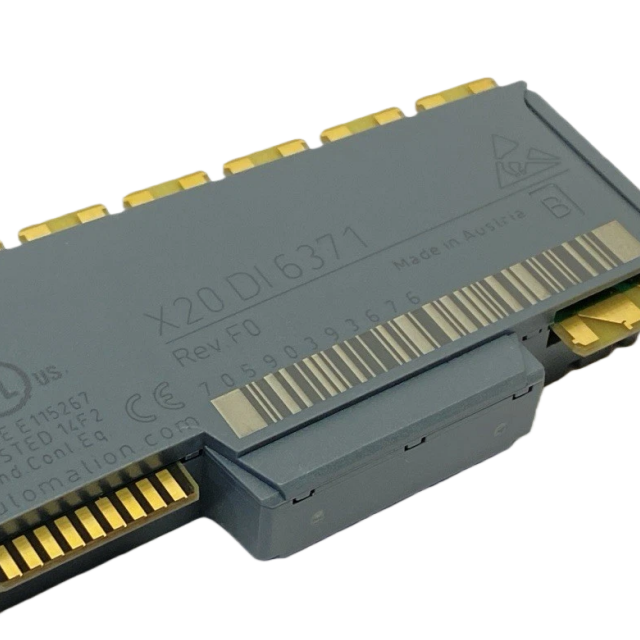

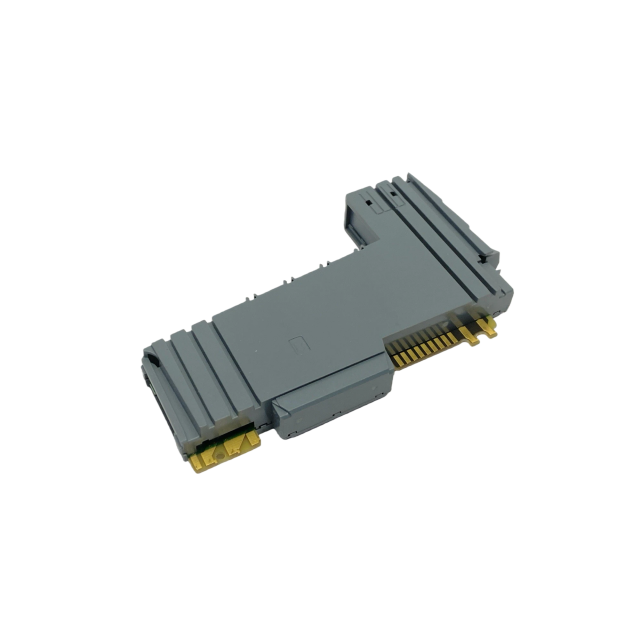

X20DI6371 is a 6-channel digital input module from B&R’s X20 product series, designed for
industrial automation systems. It supports 1-wire or 2-wire sink connections with 24 VDC input,
features configurable software input filters, and offers a coated variant (X20cDI6371) for harsh
environments. Compliant with multiple industrial certifications, it is ideal for discrete signal
acquisition from sensors, switches, and other field devices.
●Model Number: X20DI6371 (standard) / X20cDI6371 (coated)
●Product Series: B&R X20 I/O System
●Core Function: Acquires 6 independent digital input signals (24 VDC) via sink connection, supporting
both 1-wire and 2-wire configurations for seamless integration with industrial sensors.
●Key Features: Configurable software input filter (0–25 ms), short-circuit proof sensor power supply,
channel isolation from bus, and status LEDs for real-time monitoring.
●Application Scope: Industrial automation scenarios (e.g., process control, manufacturing equipment),
compatible with hazardous locations (Class I, Division 2 / Zone 2) and general industrial
environments; coated variant suits condensation or corrosive gas environments.
Environmental & Operational Traits
●Operating Temperature: -25 to 60°C (horizontal mounting); -25 to 50°C (vertical mounting).
●Storage/Transport Temperature: -40 to 85°C.
●Relative Humidity:
Standard (X20DI6371): 5–95% (non-condensing).
Coated (X20cDI6371): Up to 100% (condensing).
●Degree of Protection: IP20 (per EN 60529).
●Mounting Orientation: Horizontal or vertical; Installation Elevation: ≤2000 m (derate 0.5°C per 100 m
above 2000 m).
●Pitch: 12.5 +0.2 mm.
Electrical Parameters
●Input Configuration:
Nominal Voltage: 24 VDC (-15% / +20% tolerance)
Input Current (24 VDC): Typical 3.75 mA
Connection Type: Sink (PNP sensor compatible); 1-wire (6-pin terminal block) or 2-wire (12-pin terminal block)
Switching Threshold: Low <5 VDC; High >15 VDC
Input Resistance: Typical 6.4 kΩ
●Input Filter:
Hardware: ≤100 μs
Software: Configurable 0–25 ms (0.2 ms intervals); default 1 ms
●Sensor Power Supply:
Voltage: Module supply minus max. 2 VDC drop (short-circuit protection)
Summation Current: 0.5 A; short-circuit proof
●Power Consumption: Bus power: 0.15 W; Internal I/O power: 0.88 W (no additional actuator
dissipation).
