Why Calibration Is Not a Paper Exercise

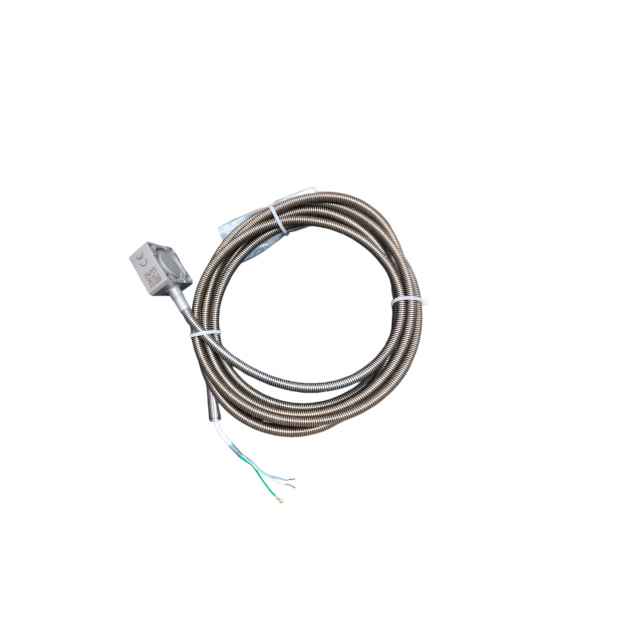

CA202 144-202-000-203 piezoelectric accelerometers are used in VM600 vibration monitoring and protection chains where a small sensitivity shift changes the signal level at the monitor. If the system expects a known output for a given acceleration, and the sensor now produces 4% less, trip thresholds and bearing condition trend data are no longer accurate.
Calibration verifies that the sensor still converts mechanical acceleration into the correct electrical signal. It also shows whether the internal electronics, connector, or cable path have drifted.
What Calibration Actually Verifies
For the CA202 144-202-000-203, calibration typically covers:
Sensitivity at a reference frequency, stated in mV/g or pC/g depending on the build.
Frequency response over the usable measurement band.
Bias output voltage if the unit is a current-source IEPE type.
Output noise and connector contact stability.
Mechanical integrity of the mounting thread and insulation.
The reference value is not an assumption. It is the sensitivity stated on the unit’s last calibration certificate or data sheet. Do not use a generic CA202 value for a specific 144-202-000-203 serial number unless the build state is confirmed.
Mounting Method Affects Calibration Results
The mounting method directly changes high-frequency response:
Stud mounting on a clean, flat surface gives the best repeatable high-frequency performance.
Adhesive mounting reduces usable frequency range and can shift resonance.
Magnetic mounting is useful for temporary trending but is not a reference-grade method for calibration.
Unnecessary adapters between the sensor and shaker head introduce resonance and reduce result quality.
Always compare like-to-like. If the field installation uses a stud mount, the calibration fixture should use the same thread and torque. If a magnetic mount is used for temporary checks, treat that result as a check only, not as a certified calibration.
When to Recalibrate the CA202
Use these triggers:
Annual calibration for units in trip or protection loops.
24-month interval for condition monitoring if trend data is stable.
After installation impact, drop, or suspected overload.
After connector replacement or cable damage.
Before a critical outage, turbine run, or compressor start.
When the monitor shows unexplained offset, threshold shifts, or erratic readings.
Before swapping a spare into a calibrated loop.
A field shaker check is not a full calibration. It is a quick verification at one frequency and should not replace laboratory comparison calibration for critical applications.
Pre-Calibration Checks Before the Lab
Do these before sending the unit out:
Clean the connector and check for bent pins, corrosion, or cracked insulator.
Check the mounting thread for galling or deformed thread crests.
Check the mounting surface for flatness and cleanliness.
Record the existing sensitivity, bias voltage, and serial number.
Check the cable assembly for cuts, hard bends, or shield damage.
If the cable is faulty, the calibration result may fail even when the sensor is good. On CA202 installations, always test the sensor with the assigned cable or an equivalent low-noise assembly.
Calibration Methods for Industrial Accelerometers
Field Reference Check
A handheld shaker or portable calibrator excites the sensor at one known level, commonly 9.81 m/s² RMS at 159.2 Hz. This confirms rough sensitivity and catches dead or heavily shifted units. It does not validate frequency response or high-frequency behavior.
Laboratory Comparison Calibration
The standard method is back-to-back comparison against a reference transducer on a calibration shaker. The reference transducer and the CA202 144-202-000-203 are mounted on the same moving head, exposed to the same acceleration, and their outputs are compared. This method follows comparison calibration practices under ISO 16063-21 for most industrial laboratories.
Primary Calibration
Primary calibration uses laser interferometry and is generally reserved for reference sensors or high-uncertainty applications. It is not a routine requirement for field devices.
Step-by-Step Practical Calibration Flow
De-energize or isolate the loop according to plant permit procedures before removing the sensor.
Remove the CA202 and visually inspect the connector, thread, and base.
Allow the sensor to stabilize at room temperature before measurement.
Mount the unit back-to-back with the reference transducer on the calibration shaker. Use the correct thread adapter and torque. Do not add unnecessary intermediate adapters.
Run a reference sensitivity check at 159.2 Hz, 10 m/s² RMS for one to two minutes.
Record sensitivity, bias voltage, and output noise.
Run a frequency sweep across the required band, such as 5 Hz to 5 kHz, and record deviation from the reference.
Compare results with the certificate and plant acceptance limits.
If sensitivity has shifted but remains within tolerance, update the monitor scaling only through the change control process.
If the unit fails, replace it and clearly mark the failed unit. Do not return a failed sensor to a protection loop because it still produces some signal.
Typical Test Points and Pass Guidance
Parameter | Practical test method | Common pass criterion |
|---|
Reference sensitivity | Back-to-back shaker at 159.2 Hz, 10 m/s² RMS | Within ±5% of last valid certificate |
Frequency response | Sweep over required band, e.g. 5 Hz–5 kHz | Within ±1 dB of reference or per data sheet |
Bias voltage | Powered through a constant-current supply | Stable within manufacturer range, no rail limiting |
Output noise | No excitation at rated supply | No intermittent jumps or excessive broadband noise |
Connector/cable | Visual and continuity check | No open, intermittent contact, or shield damage |
These values are common industrial acceptance limits. Always confirm with the sensor certificate and the monitor configuration.
Common Calibration Failures and Actions
Symptom | Likely cause | Practical action |
|---|
Sensitivity drops 5–20% | Crystal or internal amplifier aging after mechanical overload | Recalibrate; if outside tolerance, replace |
Bias voltage near 0 V or supply rail | Internal IEPE circuit damage | Replace sensor; do not reuse in trip loop |
Low sensitivity only at high frequency | Poor mounting, loose thread, wrong adapter | Remount with proper torque and retest |
High low-frequency noise | Cable whip, triboelectric noise, damaged connector | Replace cable assembly or repair connector |
Intermittent output | Broken solder joint, loose connector, damaged pin | Check continuity under flex; replace if unstable |
No output | Open circuit or failed internal electronics | Replace the CA202 and verify the input channel |
How to Read a Calibration Certificate
Do not only look at pass/fail. Check these items:
Reference sensitivity and measurement frequency.
Vibration amplitude used for calibration.
Frequency response data if required by the application.
Bias voltage or supply current conditions.
Calibration date, equipment used, and laboratory accreditation.
If the new sensitivity differs from the old by more than a few percent, the monitoring system scaling, alarm levels, and trend baselines must be reviewed.
Spare Replacement and Buying Considerations
The CA202 144-202-000-203 should not be replaced by physical fit alone. Suffix codes such as 144-202-000-203, 144-202-000-205, and 144-202-000-105 can represent different sensitivity grades or frequency bands. Before ordering a spare:
Confirm the full part number from the failed unit.
Confirm mounting thread, connector type, and cable length.
Ask for a test certificate or batch record from the supplier.
Keep a calibrated spare with the same sensitivity code in critical machine storage.
For critical turbine, compressor, or gearbox protection loops, a spare set should include the CA202 accelerometer, a compatible low-noise cable such as the EA402 assembly, mounting stud, and signal conditioner.
Frequently Asked Questions
How often should the CA202 144-202-000-203 be calibrated?
For protection loops, recalibrate every 12 months. For condition monitoring with stable trends, 24 months may be acceptable if site procedures allow. Recalibrate immediately after drop, shock, connector damage, or suspicious trend changes.
Can a portable shaker replace laboratory calibration?
No. A handheld shaker is a single-frequency field check. It catches dead or grossly shifted sensors but does not verify frequency response or full-range accuracy.
What should I do if sensitivity has shifted 4%?
Compare with plant acceptance limits and the alarm/trip threshold margin. If within tolerance, document the new sensitivity and update the monitor scaling through change control. If the change is sudden or increasing, replace the sensor and investigate the cause.
Can I use the 144-202-000-205 as a direct replacement?
Only if the sensitivity code, frequency band, connector, and monitor scaling are confirmed by an engineer. Physical fit does not mean electrical compatibility.
