DS200UCIAG1ACC Advantages

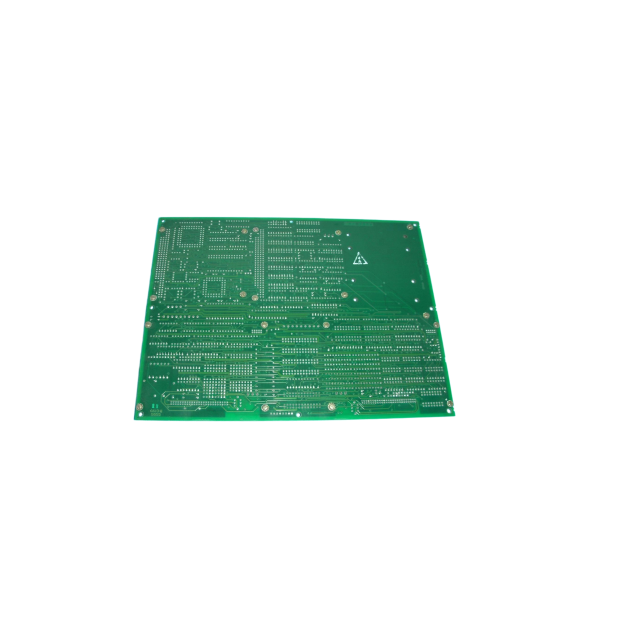

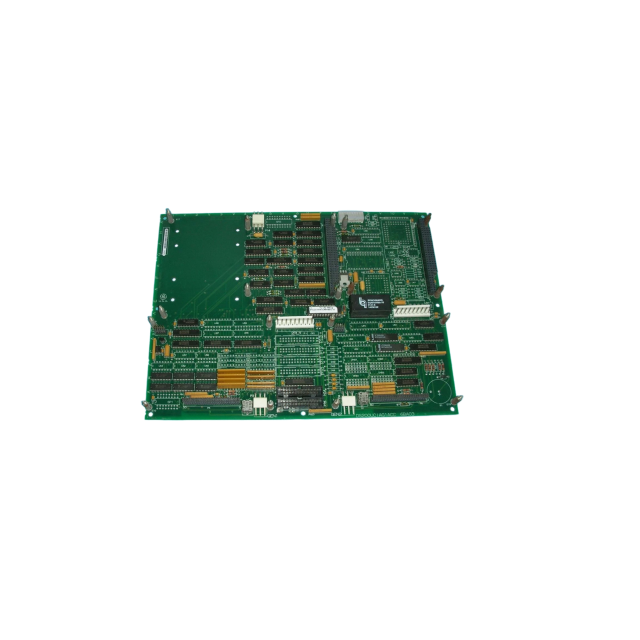

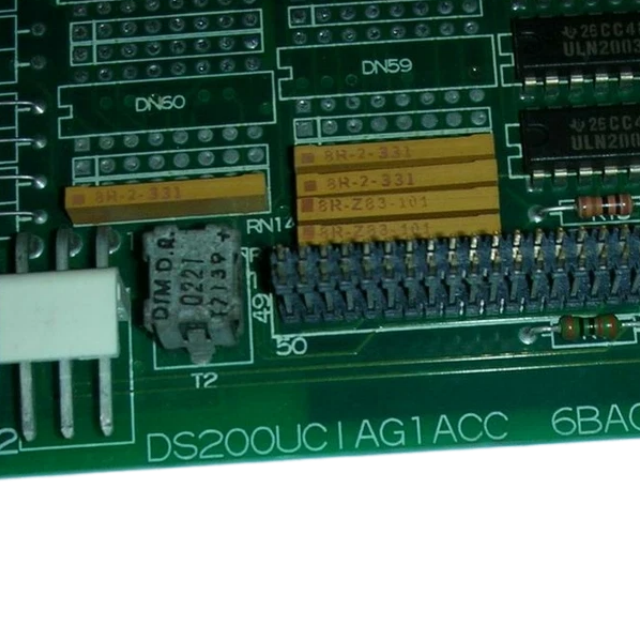

The GE DS200UCIAG1ACC Motherboard stands out from comparable turbine printed circuit boards in several key areas.
Local independent circuit processing architecture. The GE DS200UCIAG1ACC Motherboard adopts dedicated onboard processing circuit to complete bus signal filtering, signal circuit health evaluation and self-diagnosis locally, reducing computing load of main processor boards and improving MARK V system bus communication stability.
Precision central bus signal conditioning. The GE DS200UCIAG1ACC Motherboard routes and regulates inter-board bus signals for MARK V turbine control system, realizes stable data transmission to guarantee normal coordination of related sub-boards and control hardware.
Drop-in compatible design. GE DS200UCIAG1ACC is fully assembled conformal coated finished board, and GE DS200UCIAG1ACC supports direct replacement in existing MARK V cabinet.
Built-in signal isolation for field side noise suppression. Isolation circuit separates inter-board bus signals from core signal logic, lowering surge damage risk caused by ground potential difference and electromagnetic interference in turbine cabinet environment.
Flexible jumper hardware configuration. Onboard configurable jumpers support network address setup and signal channel function enable, enabling the GE DS200UCIAG1ACC Motherboard adapt to different turbine unit configuration without hardware modification.
Onboard LED diagnostic status indication. Integrated LED array displays real-time working status and fault information for maintenance technicians, supporting fast fault positioning without extra external measuring instruments.
Support for simplex and TMR redundant system architectures. The GE DS200UCIAG1ACC Motherboard can run in single-channel or triple modular redundant control framework, meeting high availability requirement of large gas turbine control systems in power plants.
Native MARK V system integration. As original GE factory component, the GE DS200UCIAG1ACC Motherboard matches MARK V control system hardware perfectly without extra adapter or custom modification.
Wide environmental adaptability. The GE DS200UCIAG1ACC Motherboard maintains stable performance under high EMI, thermal and vibration cabinet conditions, reliable for long-term gas turbine continuous operation and startup-shutdown cycles.
