When a turbine starts showing subtle shifts in its vibration signature, the difference between catching it early and discovering it during an unplanned shutdown often comes down to the quality of your measurement system. The Epro PR9268 transducer series has earned its place in countless monitoring installations precisely because it delivers that early warning capability. These eddy current proximity sensors, particularly the PR9268/200-000 and PR9268/201-000 models, handle the demanding work of non-contact shaft measurement in environments where reliability is not optional.
How Eddy Current Technology Powers the PR9268 Series
Epro PR9268 transducers rely on eddy current principles to measure shaft displacement, position, and vibration without physical contact. The sensor generates a high-frequency electromagnetic field at its tip. When a conductive target, typically a rotating shaft, moves closer to the proximity probe, eddy currents form on the target surface. The strength of these currents changes as the gap distance varies, and the transducer converts that change into a proportional voltage signal. This real-time output feeds directly into machinery health monitoring systems.

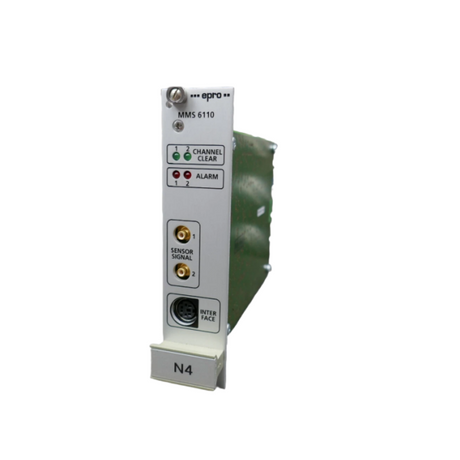

The non-contact approach eliminates mechanical wear between the sensor and the measured surface. That matters in applications where continuous operation spans months or years without scheduled downtime. Both the PR9268/200-000 and PR9268/201-000 models integrate with EPRO MMS series components like the MMS6110 and MMS6120, creating complete monitoring solutions for rotating equipment diagnostics.

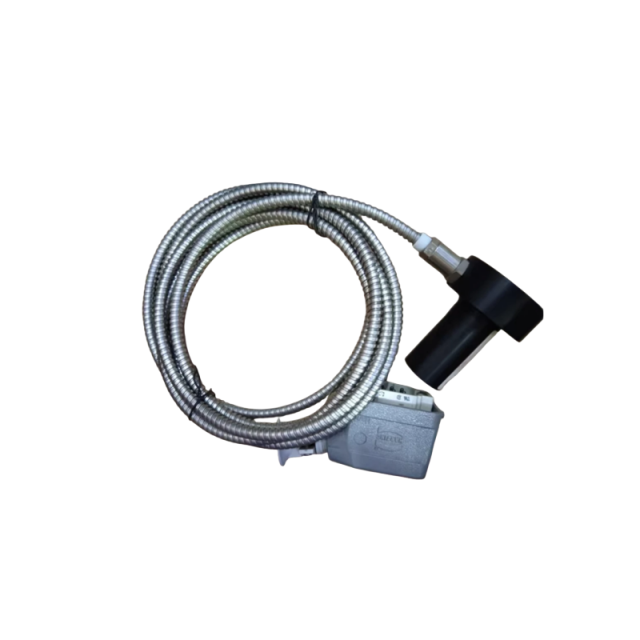

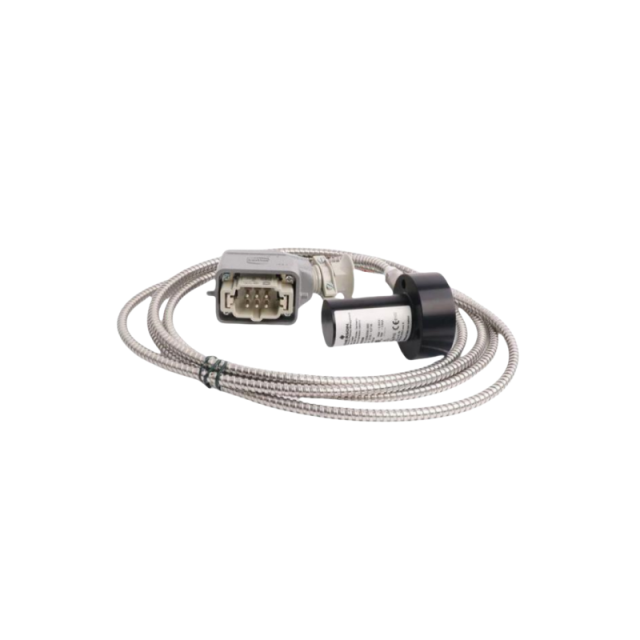

Distinguishing the PR9268/200-000 from the PR9268/201-000
The two models differ primarily in output characteristics and cable configurations. The PR9268/200-000 provides a standard voltage output suited for general-purpose vibration monitoring installations. The PR9268/201-000 may offer adjusted sensitivity or extended cable lengths to accommodate specific installation geometries or measurement requirements. Selecting the correct model depends on the physical constraints of the installation and the precision demands of the application.
Feature
PR9268/200-000
PR9268/201-000
Measurement Type
Eddy Current Proximity
Eddy Current Proximity
Output Signal
Standard Voltage Output
Specific Voltage Output
Cable Length
Standard Integrated Cable
Potentially Longer/Specific
Application
General Vibration Monitoring
Specialized Monitoring
Sensitivity
Standard
Potentially Adjusted
Compatibility
EPRO MMS Series
EPRO MMS Series
Where PR9268 Transducers Prove Their Value
Epro PR9268 transducers show up wherever rotating machinery requires continuous condition monitoring. Their precision makes them effective at detecting mechanical anomalies before those anomalies become failures.
Turbine installations represent one of the most demanding applications. Steam and gas turbines operate at high speeds where even small changes in shaft vibration or axial position can signal developing problems. The PR9268 provides the continuous data stream needed to track these parameters over time.
Compressor monitoring presents similar challenges. Both reciprocating and centrifugal designs benefit from precise vibration measurement that catches bearing wear, seal degradation, or internal component issues early. Industrial pumps and large fans rely on the same capability to identify imbalance or misalignment before efficiency drops or components fail.
Gearbox condition monitoring uses vibration signatures to detect gear mesh problems and bearing deterioration. Hydroelectric generators, with their massive rotating assemblies, depend on stable shaft position monitoring to prevent excessive movement that could damage seals or bearings.
These applications share a common thread. Early detection through reliable vibration monitoring reduces unplanned downtime and supports predictive maintenance strategies. The data from PR9268 transducers feeds directly into decisions about when to schedule maintenance and which components need attention. This approach to industrial reliability pays dividends in extended equipment life and reduced emergency repair costs.
The accuracy of any Epro PR9268 sensor depends heavily on how it gets installed and maintained. Cutting corners during setup creates measurement errors that persist until someone identifies and corrects them.
Mounting requires a rigid surface that isolates the sensor from external vibration sources. The mounting structure should not flex or resonate at frequencies within the measurement range. Contamination on the mounting surface can affect the sensor’s position over time, so clean installation matters.
Gap setting between the probe tip and the target shaft determines where the sensor operates within its linear range. Manufacturers specify an optimal gap range for each model. Setting the gap too close or too far reduces measurement accuracy and can push the output into non-linear regions where small position changes produce disproportionate signal changes.
Cable routing deserves careful attention. Electromagnetic interference from motors, drives, or power cables can introduce noise into the measurement signal. Running transducer cables in separate conduits or maintaining physical separation from power wiring reduces interference. Securing cables prevents movement that could stress connections or change cable capacitance.
Proper grounding establishes a reference point for the measurement system and helps reject common-mode noise. Ground loops, where multiple ground paths create circulating currents, can add low-frequency noise to signals.
Environmental protection extends sensor life in harsh conditions. Temperature extremes, moisture, and corrosive atmospheres all affect sensor performance and longevity. Protective housings or environmental seals may be necessary depending on the installation location.
Calibration verifies that the proximity transducer system continues to produce accurate output over time. Sensor drift, cable aging, and environmental effects can all shift the relationship between actual displacement and output voltage. Periodic calibration catches these changes before they affect monitoring decisions.
Connecting PR9268 Transducers to Plant Control Systems
The value of vibration data increases dramatically when it flows into existing control and monitoring infrastructure. Epro PR9268 transducers produce analog voltage outputs that interface readily with industrial automation platforms.
Connecting to a PLC controller or DCS (Distributed Control System) typically involves routing the transducer output to an analog input module. The module converts the voltage signal to digital values that the control system software can process. Signal conditioning may be necessary when the transducer output range does not match the input module specifications, or when additional filtering is needed to remove noise.
Once the data reaches the control system, configuration determines how raw voltage values translate into engineering units. Scaling factors account for the transducer sensitivity and the physical relationship between voltage output and displacement. Alarm thresholds trigger notifications or automated responses when vibration levels exceed acceptable limits.
Integration with Allen-Bradley PLCs, Siemens PLCs, and Honeywell DCS systems follows similar patterns, though specific module selections and configuration procedures vary by platform. The goal remains consistent. Transform raw transducer signals into actionable information that operators and maintenance personnel can use to make informed decisions about machinery health.
Making the Data Flow Work
Epro PR9268 transducers generate analog voltage signals proportional to the measured displacement or vibration. These signals connect to analog input cards within the control system architecture. Software configuration scales the input values, converting voltage readings into millimeters of displacement or velocity units that make physical sense to operators.
Trend analysis becomes possible once the data enters the control system. Comparing current readings against historical baselines reveals gradual changes that might indicate developing problems. Setting alarm thresholds at appropriate levels balances sensitivity against nuisance alarms. The result is a vibration monitoring system that provides real-time visibility into machinery condition and supports proactive maintenance decisions.
The Business Case for Continuous Vibration Monitoring
Vibration monitoring with Epro PR9268 transducers represents an investment in operational stability. The return shows up in reduced unplanned downtime, lower maintenance costs, and extended equipment life.
Unexpected failures carry costs beyond the repair itself. Production stops while maintenance crews diagnose the problem and source replacement parts. Downstream processes may be affected. Delivery commitments get missed. The financial impact of a single unplanned turbine outage can dwarf the cost of a complete monitoring system installation.
Predictive maintenance shifts the timing of interventions from reactive to planned. Instead of waiting for equipment to fail, maintenance teams schedule work based on actual condition data. This approach allows for parts ordering in advance, coordination with production schedules, and efficient use of maintenance resources.
Equipment longevity improves when problems get addressed before they cause secondary damage. A bearing that runs with excessive vibration for months may damage the shaft, housing, or adjacent components. Catching the bearing issue early limits the repair scope.
Safety considerations also favor continuous monitoring. Catastrophic machinery failures can endanger personnel working nearby. Vibration monitoring provides warning before conditions reach dangerous levels, allowing for orderly shutdown and safe maintenance access.
Sourcing Epro PR9268 Transducers and Related Components
For Epro PR9268 transducers, including the PR9268/200-000 and PR9268/201-000 models, along with a comprehensive range of industrial automation spare parts, Joyoung International Trading Co., Limited maintains established supply channels. Our global network supports sourcing for critical monitoring system components. Contact us for reliable access to the parts your operations require.
Frequently Asked Questions About Epro PR9268 Transducers
Where can I find reliable suppliers for Epro PR9268 spare parts?
Joyoung International Trading Co., Limited specializes in sourcing industrial automation spare parts, including Epro PR9268 transducers. Our inventory covers both the PR9268/200-000 and PR9268/201-000 models. We work with established supply channels to provide original components with verified quality. Industrial operations cannot afford extended downtime waiting for parts, so we prioritize efficient delivery to keep critical systems running.
What are the common troubleshooting steps for Epro PR9268 transducer issues?
Start with cable inspection. Look for physical damage, loose connections, or signs of moisture intrusion. Verify that power supply voltage falls within specifications at the transducer terminals, not just at the source. Check the proximity transducer system gap setting against the manufacturer’s recommended range. Environmental factors matter too. Excessive temperature, vibration from nearby equipment, or corrosive atmospheres can all affect sensor performance. If basic checks do not resolve the issue, compare the sensor output against a known good reference or consider replacement if the sensor shows signs of degradation.
How often should Epro PR9268 transducers be calibrated for accuracy?
Calibration intervals depend on several factors. Manufacturer recommendations provide a starting point, typically suggesting annual or bi-annual verification for critical applications. Harsh operating environments with temperature swings, contamination, or high vibration levels may warrant more frequent calibration. Less demanding installations in stable conditions might extend intervals. The key is establishing a baseline during initial installation and tracking any drift over time. Consistent calibration practices ensure that vibration monitoring data remains trustworthy for maintenance decisions.
