GE VersaMax IC200 systems have earned their place in countless control rooms for good reason. These PLCs handle the kind of demanding applications where failure isn’t an option, and keeping them running means having the right modules on hand when you need them. The IC200ALG260 analog input and IC200UDD020 digital I/O modules sit at the heart of many installations, and understanding what makes them tick—plus knowing where to find authentic replacements—can mean the difference between a quick swap and a production nightmare.
How GE VersaMax IC200 PLCs Fit Into Modern Control Systems
GE VersaMax PLCs deliver a modular approach to industrial control that scales with your needs. The architecture lets you build out exactly what an application requires, adding or swapping modules as processes evolve. This flexibility has made the platform a staple across manufacturing, processing, and utility operations where conditions vary and requirements shift over time.
The system integrates analog, digital, and specialty modules into a unified control environment. GE Fanuc automation products built their reputation on performing reliably in harsh industrial settings, and the VersaMax line carries that forward. When you understand how each component contributes to the whole, maintaining operational continuity becomes far more manageable.

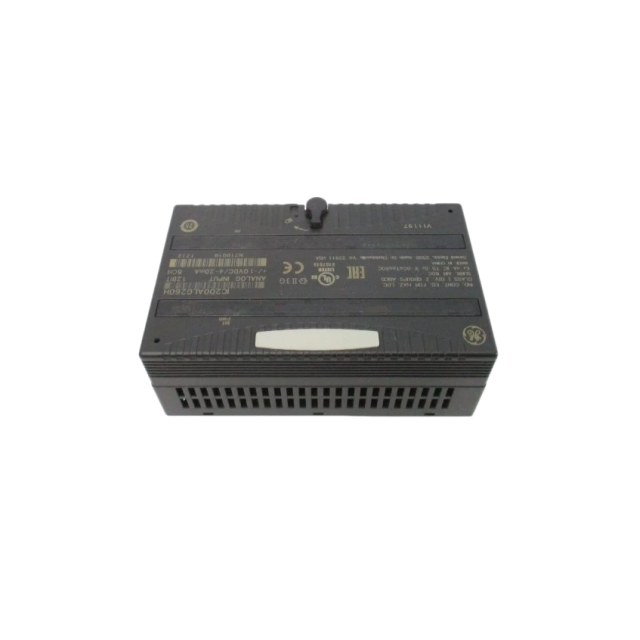

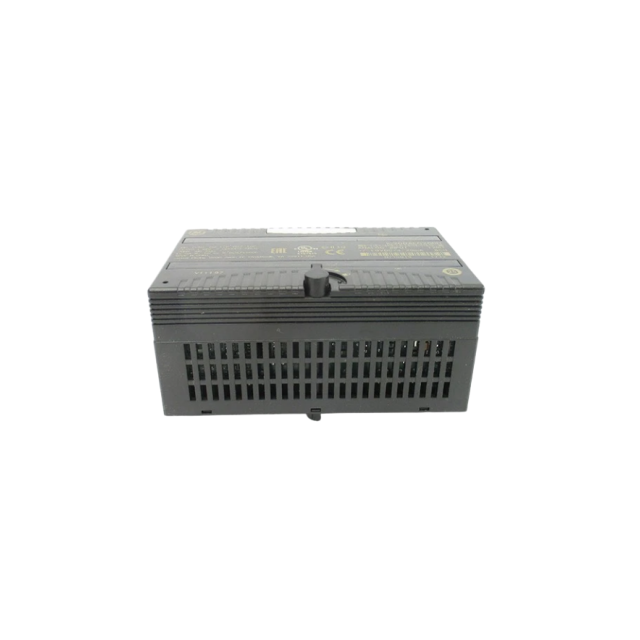

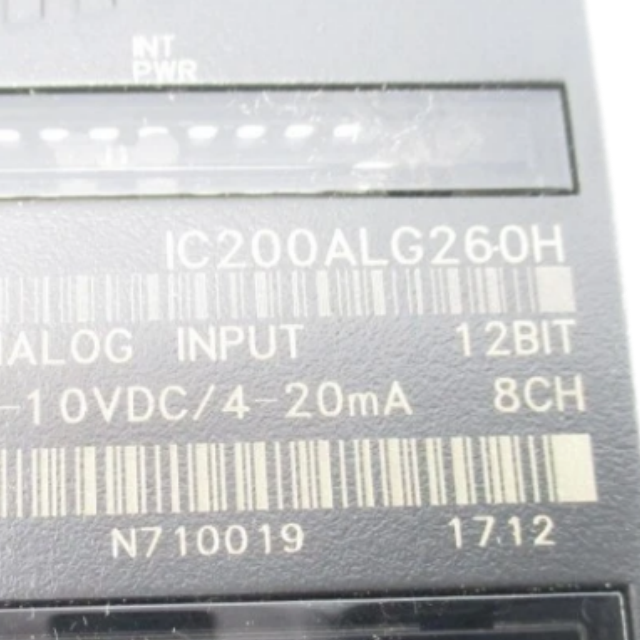

What the IC200ALG260 Analog Input Module Actually Does
The IC200ALG260 handles the continuous signals that sensors generate—temperatures, pressures, flow rates, and similar process variables that don’t fit neatly into on/off categories. It takes those raw analog signals and converts them into digital values the PLC can work with, making it essential for any application where you need to know not just whether something is happening, but how much.
This analog input module accepts both voltage and current signals across multiple ranges, giving it the versatility to work with most industrial sensor types without external signal conditioning.
Feature
Specification
Input Channels
8 differential or 16 single-ended
Input Ranges
+/-10V, 0-10V, 0-5V, 4-20mA, 0-20mA
Resolution
12-bit (voltage), 11-bit plus sign (current)
Accuracy
+/-0.1% of full scale (voltage), +/-0.2% (current)
Conversion Time
1ms per channel
Isolation
Optically isolated from backplane
The 12-bit resolution provides enough granularity for most process control applications, while the optical isolation protects the backplane from ground loops and transient voltages that field wiring can introduce.
Where the IC200ALG260 Proves Most Valuable
Temperature monitoring systems rely heavily on this module. Whether you’re tracking furnace temperatures, cooling water, or ambient conditions in a cleanroom, the IC200ALG260 provides the precision needed for tight control loops. Pressure sensing applications benefit similarly—tank levels, line pressures, and differential measurements all translate well through this module’s input ranges.
Flow measurement rounds out the common applications. Industrial instrumentation that outputs 4-20mA signals integrates directly, and the module’s accuracy ensures the PLC receives data it can trust for control decisions.
Fixing IC200ALG260 Problems Before They Become Outages
When analog readings start drifting or dropping out, a systematic approach saves time. Start with the wiring. Loose connections, damaged shielding, or incorrect terminations cause more analog input issues than actual module failures. Check that shields are grounded at one end only and that cable runs avoid parallel paths with power conductors.
If wiring checks out, verify the sensors themselves. A failing thermocouple or pressure transducer can mimic module problems perfectly. Swap in a known-good sensor or use a calibrator to inject a test signal directly into the module inputs.
The module’s diagnostic indicators provide useful clues. Error codes point toward specific channels or input types, narrowing down where to focus. Signal noise often shows up as erratic readings that track no real process change—identifying and eliminating noise sources may require relocating cables or adding filtering.
Regular calibration verification catches drift before it affects process quality. Building this into preventative maintenance schedules keeps small issues from becoming production problems.
The IC200UDD020 Digital I/O Module Explained
The IC200UDD020 handles the discrete side of control—the on/off signals that drive motors, open valves, and read limit switches. This digital I/O module combines inputs and outputs in a single package, making it efficient for applications where both functions cluster together physically.
Operating at 24VDC, it speaks the same language as most modern field devices. The configurable output type—either sourcing or sinking—lets it work with whatever equipment the application requires.
Feature
Specification
I/O Type
16-point Digital Input/Output
Input Voltage
24VDC nominal
Output Type
Sourcing (PNP) or Sinking (NPN) configurable
Output Current
0.5A per point, 4A per common
Response Time
Fast I/O capabilities
Isolation
Optically isolated from backplane
The 0.5A per point output current handles most solenoid valves and indicator lights directly. Larger loads need interposing relays, but the module’s fast response time ensures control timing stays tight.
Getting the Wiring Right on IC200UDD020 Installations
Configuration matters with this module. Sourcing outputs supply positive voltage to the load, while sinking outputs complete the path to ground. Mixing these up doesn’t just prevent operation—it can damage field devices or the module itself.
PLC wiring diagrams specific to your configuration should guide every installation. The distinction between sinking output and sourcing input configurations determines how power flows through the circuit, and getting this wrong creates problems that aren’t always obvious during commissioning.
Industrial electrical standards exist for good reasons. Following them during installation prevents the kind of intermittent faults that consume troubleshooting hours and erode confidence in the control system.
Choosing Between Analog and Digital Modules
The IC200ALG260 and IC200UDD020 serve fundamentally different purposes, and understanding when to use each prevents design mistakes.
Analog modules process continuous data. When you need to know a temperature is 347°F rather than just “hot,” you need analog input. When a valve should open 63% rather than fully open or closed, you need analog output. The IC200ALG260 excels at capturing these graduated measurements from sensor types that output proportional signals.
Digital modules handle events and states. A motor is running or stopped. A door is open or closed. A pushbutton is pressed or released. The IC200UDD020 manages these binary conditions and the discrete control signals that respond to them.
Feature
IC200ALG260 (Analog Input)
IC200UDD020 (Digital I/O)
Signal Type
Continuous (e.g., voltage, current)
Discrete (On/Off)
Data Type
Measured values, ranges
States, events
Purpose
Process monitoring, data acquisition
Actuator control, status sensing
Applications
Temperature, pressure, flow measurement
Motor control, valve actuation, switch inputs
Output
Digital representation of analog signal
Direct control signals
Most real-world systems need both. Process automation typically combines continuous monitoring through analog modules with sequential control through digital modules, each handling what it does best.
Finding Genuine GE VersaMax IC200 Spare Parts
Counterfeit industrial components have become a real problem. They look right, sometimes even test right initially, but they fail when it matters. The risks extend beyond simple malfunction—substandard parts can create safety hazards and cascade failures that damage other equipment.
Joyoung International Trading Co., Limited maintains inventory of authentic GE VersaMax IC200 modules alongside other industrial automation spare parts. Our focus spans PLC modules, DCS cards, ESD system components, vibration monitoring equipment, turbine control systems, and gas generator spares. This breadth comes from understanding that industrial operations depend on multiple systems working together, and a reliable supply chain for critical components keeps everything running.
Obsolescence management adds another dimension to spare parts sourcing. As manufacturers discontinue products, finding genuine replacements becomes harder. Building relationships with suppliers who track these transitions helps maintain long-term system support.
Spotting Authentic GE VersaMax IC200 Modules
Several checks help verify authenticity before a module goes into service. Serial numbers should match manufacturer records—GE maintains databases for verification. Packaging tells a story too. Genuine products come with proper seals, documentation, and branding that counterfeiters often get wrong in subtle ways.
The source matters as much as the product. Purchasing from established suppliers with verifiable track records reduces risk dramatically. Quality assurance certifications and documented supply chains indicate a supplier takes authenticity seriously.
Physical inspection catches many fakes. Poor solder joints, misaligned labels, or inconsistent component placement suggest manufacturing that didn’t happen in an authorized facility. When something looks off, it probably is.
Keeping VersaMax PLCs Running Long-Term
Reactive maintenance—fixing things after they break—costs more than preventing failures in the first place. A proactive approach to GE VersaMax IC200 systems combines scheduled inspections, environmental management, and strategic planning for eventual upgrades.
Regular inspections catch developing problems. Loose connections, accumulating dust, and heat buildup all provide warning signs before they cause failures. Component testing during planned downtime verifies that modules still meet specifications rather than waiting for process upsets to reveal degradation.
Predictive maintenance technologies add another layer. Trending diagnostic data over time reveals patterns that precede failures, allowing intervention during convenient windows rather than emergency situations.
Planning for obsolescence keeps systems viable longer. Understanding which modules face discontinuation and identifying compatible alternatives or upgrade paths prevents scrambling when parts become unavailable. Effective industrial asset management balances current operational needs against future supportability.
Why Spare Parts Availability Directly Affects Production
Unplanned downtime carries real costs—lost production, missed deliveries, overtime for repairs, and sometimes damaged customer relationships. Having critical spare parts on hand transforms potential disasters into manageable maintenance events.
The math is straightforward. A module that fails at 2 AM on a Saturday creates very different outcomes depending on whether a replacement sits in the storeroom or requires emergency sourcing. The cost of maintaining reasonable spare parts inventory pales against even a single extended outage.
Joyoung International Trading Co., Limited built its global sourcing capabilities around this reality. Supply chain resilience means having access to parts when customers need them, not just when convenient. This commitment to availability supports the operational continuity that industrial operations depend on.
Partner with Joyoung International for GE VersaMax Support
Keeping GE VersaMax IC200 PLC systems performing reliably requires access to authentic components and knowledgeable support. Joyoung International Trading Co., Limited provides both, specializing in genuine industrial automation spare parts including the IC200ALG260 and IC200UDD020 modules that keep your operations running.
Reach out for consultation on your specific requirements, competitive pricing on genuine parts, and the responsive service that industrial operations demand. Contact us at chen@htechplc.com or +86-181-5013-7565.
Common Questions About GE VersaMax IC200 Modules and Spare Parts
Who supplies genuine GE VersaMax IC200 spare parts globally?
Joyoung International Trading Co., Limited specializes in authentic GE VersaMax IC200 spare parts, including IC200ALG260 and IC200UDD020 modules. We verify part authenticity, maintain competitive pricing, and deliver promptly to minimize downtime for industrial operations worldwide.
What does the IC200ALG260 module do in a control system?
The IC200ALG260 converts continuous analog signals from industrial sensors into digital data the PLC can process. It handles temperature, pressure, and flow measurements—any application where knowing the actual value matters, not just whether something exceeds a threshold. The module’s 12-bit resolution and multiple input ranges make it versatile across most process monitoring applications.
How does the IC200UDD020 fit into automation systems?
The IC200UDD020 manages discrete on/off signals for controlling motors, valves, and other actuators while reading status from switches and sensors. It forms the foundation for sequential control logic, safety interlocks, and basic machine control. The 24VDC I/O compatibility works with standard industrial field devices.
What typically causes GE VersaMax IC200 modules to fail?
Power supply problems, heat-related component degradation, and input/output circuit damage from overvoltage or short circuits account for most failures. Communication errors can stem from backplane issues or environmental interference. Regular diagnostics, proper ventilation, and preventative maintenance significantly reduce failure rates.
Does using non-genuine spare parts create real risks?
Counterfeit or substandard GE VersaMax IC200 parts introduce unpredictable behavior into control systems. They may work initially but fail under stress, cause intermittent faults that consume troubleshooting time, or create safety hazards. Genuine parts ensure compatibility, reliability, and continued warranty coverage—the cost difference rarely justifies the risks of alternatives.
