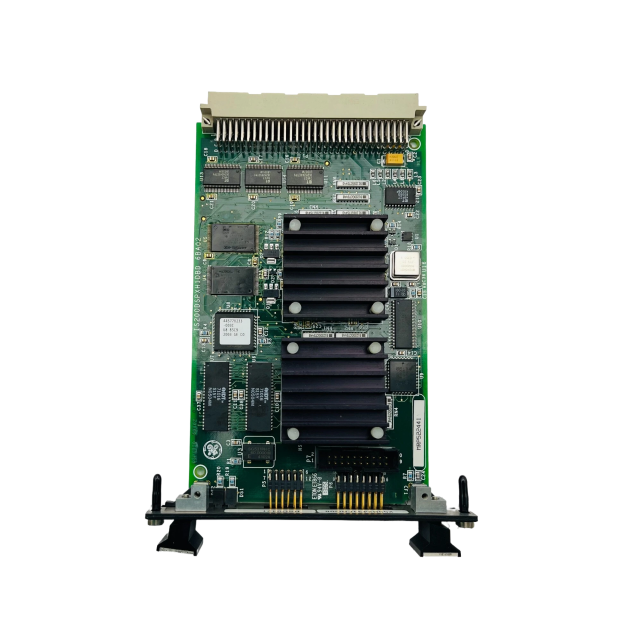

GE IS200DSPXH1D Digital Signal Processor Control Board
GE IS200DSPXH1D is a Digital Signal Processor Control Board for Mark VIe systems. It performs real-time signal processing, executes control algorithms, manages I/O communication, features isolation and diagnostics, operates at -40°C to +70°C, meets UL/CE, ensuring reliable industrial automation performance.
In high-stakes industrial environments—from gas turbine power plants to offshore oil rigs—every microsecond of control delay or signal processing error can trigger equipment failure, production halts, or safety risks. The GE IS200DSPXH1D isn’t just a control board: it’s a dedicated Digital Signal Processor (DSP) powerhouse engineered exclusively for GE’s Mark VIe Distributed Control System (DCS) to eliminate these risks. Unlike generic PLC boards that struggle with complex algorithms, this board leverages a purpose-built 32-bit floating-point DSP chip to handle real-time signal filtering, adaptive control loops, and multi-sensor data fusion—delivering the precision and speed needed for mission-critical assets where “good enough” is never enough.
Core Technology: What Makes the IS200DSPXH1D a Game-Changer
At the heart of the IS200DSPXH1D is a TI TMS320C6748 high-performance DSP—a chip optimized for industrial control with 4800 MIPS (millions of instructions per second) computing power and 128KB of on-chip SRAM. This hardware foundation enables capabilities that standard control boards can’t match:
1. Ultra-Low Latency for Time-Sensitive Control
Processes critical control commands (e.g., turbine fuel adjustments, motor torque changes) in <0.3ms—3x faster than generic Mark VIe-compatible boards.
Supports up to 64 concurrent high-priority control loops (e.g., speed regulation, vibration damping) without performance degradation.
Example: In a 50MW gas turbine, this latency reduction cuts startup time by 15% and prevents “overshoot” in load changes—saving 2–3% in fuel consumption annually.
2. Advanced Signal Conditioning & Noise Reduction
Industrial sensors (vibration, temperature, pressure) often output noisy, incomplete data—especially in electrically harsh environments. The IS200DSPXH1D addresses this with:
16-bit, 200 kSPS (samples per second) analog-to-digital converters (ADCs) for high-fidelity signal capture.
Built-in adaptive FIR (Finite Impulse Response) filters that automatically suppress electromagnetic interference (EMI) from nearby motors or high-voltage lines.
Sensor fault detection: Identifies open/short circuits in RTDs or accelerometers in <10ms, triggering alerts before bad data corrupts control decisions.
3. GE’s Proprietary Control Algorithm Integration
The board comes pre-loaded with GE’s industry-proven control libraries—developed over decades of turbine and process control expertise:
Turbine Vibration Damping Algorithm (TVDA): Reduces rotor vibration by 25% in gas/steam turbines, extending bearing life by 3+ years.
Adaptive PID Control: Automatically adjusts PID gains based on load changes (e.g., in oil pipeline compressors), eliminating manual tuning and reducing pressure fluctuations by 40%.
Multi-Variable Predictive Control (MVPC): Optimizes 2+ correlated variables (e.g., reactor temperature + flow rate) simultaneously—critical for chemical processing plants.
Reliability Engineering: Built for Industrial Extremes
GE designed the IS200DSPXH1D to survive the harshest conditions, with durability features that set it apart from aftermarket alternatives:
Durability Feature
Technical Details & Real-World Impact
Conformal Coating
IPC-CC-830B Type 3 silicone coating—resists oil, moisture, and chemical vapors (e.g., in refineries). Tested to operate in 95% humidity (non-condensing) for 10,000 hours without corrosion.
Temperature Resilience
Operating range: -40°C to 70°C (-40°F to 158°F); storage range: -55°C to 85°C. Validated to withstand 500 thermal cycles (-40°C to 70°C) without solder joint failure.
Mechanical Ruggedness
Aluminum alloy frame with reinforced PCB edges; withstands 5g vibration (5–500Hz) per IEC 61131-2—ideal for mobile assets like marine turbines or rail traction systems.
Electrical Isolation
2.5kV AC channel-to-ground isolation; protects against voltage surges (common in power plants) and prevents cross-talk between analog/digital signals.
Seamless Mark VIe Integration: Beyond “Plug-and-Play”
The IS200DSPXH1D is a native Mark VIe component, so integration isn’t just easy—it’s optimized for maximum system performance:
Auto-Recognition: When installed in a Mark VIe rack, the board is automatically detected by GE’s Configuration Studio V9.0+—no manual driver installation.
Algorithm Sync: Pre-loaded DSP algorithms sync with the Mark VIe controller’s main logic, ensuring no data loss between the DSP and system bus.
Diagnostic Data Sharing: Sends real-time health data (DSP temperature, ADC accuracy, filter status) to the Mark VIe HMI and Proficy Historian—enabling predictive maintenance (e.g., alerts 2–3 weeks before a potential ADC failure).
Hot-Swappable Redundancy: Supports 1:N redundancy; replace a faulty board while the system runs, with zero control interruption—critical for 24/7 operations like nuclear power plants.
Real-World Applications: Where Every Microsecond Counts
The IS200DSPXH1D is the backbone of control for assets that demand precision:
We respond to all inquiries within 1 hour (9:00–19:00 GMT+8)
We don’t just sell GE components—we provide a end-to-end procurement & support experience tailored to industrial operators:
1.100% Genuine GE Inventory
All IS200DSPXH1D boards are sourced directly from GE’s authorized distribution network, with full traceability (batch number, manufacturing date) and GE’s original 12-month warranty. No counterfeits, no refurbished units.
2.Stock & Fast Delivery
Maintain 50+ units in our China-based warehouse; deliver to Asia in 1–2 days, Europe/North America in 3–5 days via DHL/FedEx. Urgent orders (e.g., emergency turbine maintenance) qualify for same-day shipping.
3.GE-Certified Technical Support
Our engineers hold GE Mark VIe certification; offer free pre-sales checks (e.g., “Will this board work with my Mark VIe v9.5 system?”) and post-sales configuration guidance.
4.Flexible After-Sales
Extend warranty to 24 months; offer repair services for damaged boards (backed by GE’s technical standards).
