Basic Identification
Basic Info | Manufaturer/Brand: GE |

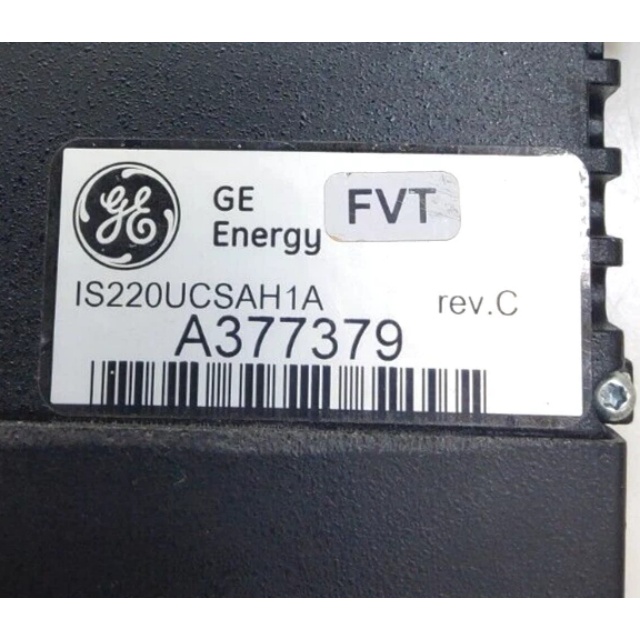

Part number: IS220UCSAH1A |
Payment Method: T/T |
Original new: Brand New |
MOQ: 1 PC |
Country of Origin: USA |
Shipping from: Xiamen city, Fujian Province |
Key Information

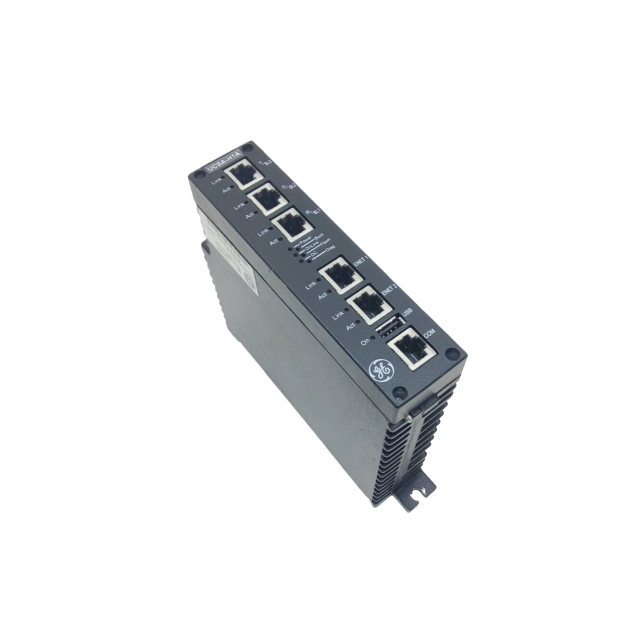

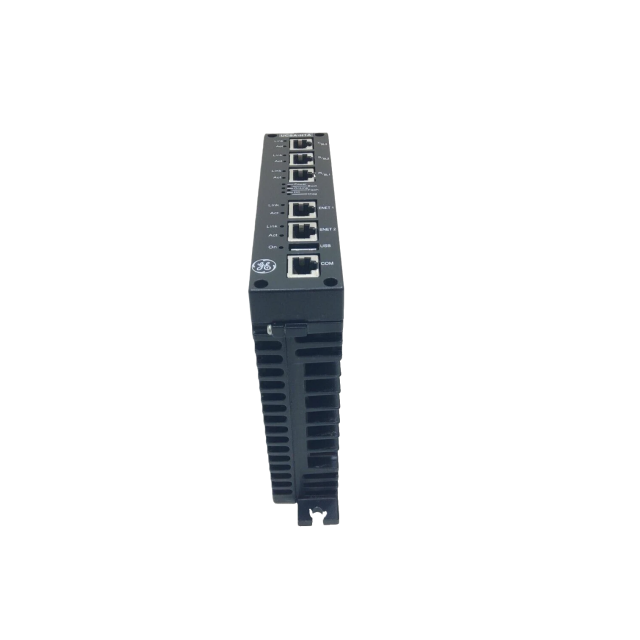

●Basic Identity: Processor module for GE’s Mark VIe/Mark VIeS Control Systems, serving as the core
for PAMC Acoustic Monitoring and PMVE Migration from Mark V Control applications, integrated into
the ProSafe-RS safety control ecosystem.
●Electrical Specs: 667 MHz PowerQUICC® Pro Freescale processor; power supply 27.4–28.6 V DC
(nominal 28.0 V DC), maximum current 0.62 A DC.
●Hazardous Location Compliance: UL E207685 certified; compliant with Class I, Division 2 (Groups A-
D, T4), Class I, Zone 2 (AEx nA IIC T4, Ex nA IIC T4 Gc X), and ATEX Zone 2 (Ex nA IIC T4 Gc).
●Applicable Standards: Non-hazardous (UL 508 Ed. 17, CSA-C22.2 No. 142-M1987); hazardous
(ANSI/ISA-12.12.01-2015, CAN/CSA-C22.2 No. 213-15); Zone 2 (UL 60079-0 Ed. 5, UL 60079-15 Ed. 3);
ATEX (EN 60079-0:2012, EN 60079-15:2010).
●Environmental & Physical Traits: Operating temperature 0–65 °C (32–149 °F); cabinet-mountable,
requires IP54+ tool-accessible enclosure; compliant with Pollution Degree 2 (EN 60664-1).
●Wiring Requirements: Copper conductors (22–12 AWG for barrier-type terminals, 24–12 AWG for
euro-style); screw torques 1.1 Nm (barrier-type) and 0.45 Nm (euro-style).
●Safety & Operation: No hot-swapping in energized hazardous areas; component substitution may
impair Class I, Division 2 suitability; maintenance by trained personnel with lockout/tagout procedures.
●Compatibility: Works with GE power distribution boards (e.g., ISxxxJPDHG1A), Mark VIe I/O modules,
ToolboxST software, PAMC Acoustic Monitoring Module, and PMVE Migration components.
