Product Characteristics
Brand/Manufacturer: GE
Model NO.: IS220PAICH1B
Product Type:Analog Input/Output Module
Product Origin：USA
Payment Term: T/T
Warranty: 1 year
Shipping Port:Xiamen China
Lead Time:2-3 Working Days
Condition: Brand New And 100% Original

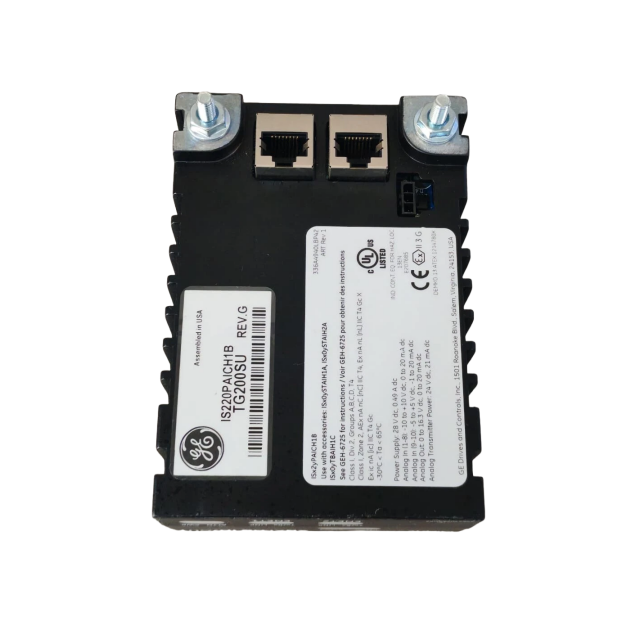

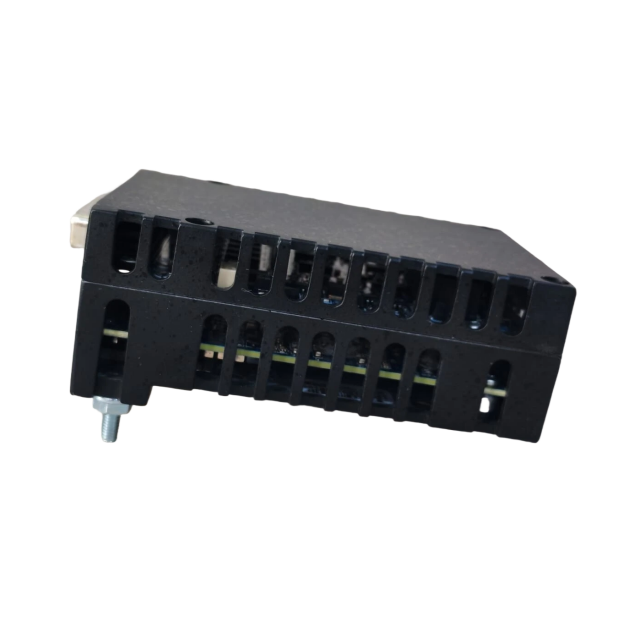

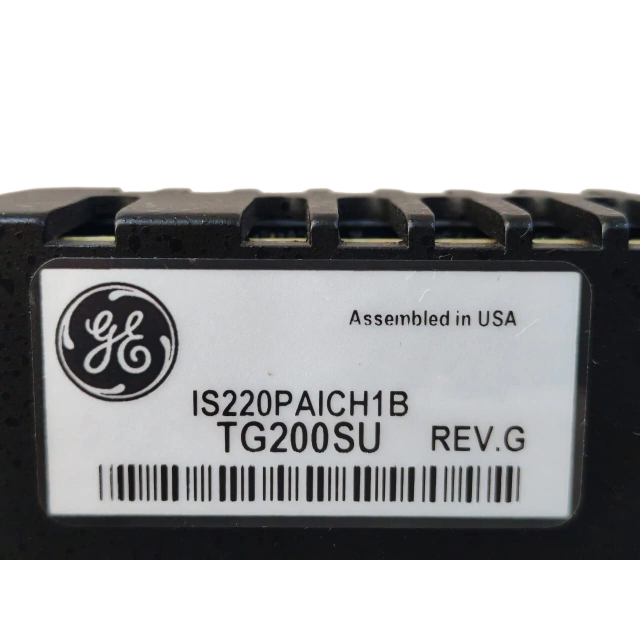

IS220PAICH1B Product Overview
●Reference Document: Mark VIe and Mark VIeS Control Systems Equipment in Hazardous Locations
(HazLoc) Instruction Guide (Doc. No.: GEH-6725R, Revision: 6, Date: Sept 2020)
●Product Category: Mark VIe Analog I/O Module, designed for hazardous (classified) locations and
non-hazardous environments.
●Core Function: Integrates analog input/output capabilities, supporting voltage/current signals for
industrial process control and data acquisition in hazardous areas.
●Key Compliance: Certified for Class I, Division 2 (Groups A, B, C, D), Class I, Zone 2 (Group IIC), and
ATEX Zone 2 (Group IIC) locations.
Electrical Ratings
●Power Supply Voltage: Minimum 22.5 V dc, nominal 24.0/28.0 V dc, maximum 28.6 V dc.
●Power Supply Current: Maximum 0.49 A dc.
●Analog Inputs (1-8): Voltage ranges from -10 V dc to 10 V dc; current ranges from 0 mA dc to 20 mA
dc.
●Analog Inputs (9-10): Voltage ranges from -5 V dc to 5 V dc; current ranges from -1 mA dc to 20 mA
dc.
●Analog Outputs: Voltage ranges from 0 V dc to 16.3 V dc; current ranges from 0 mA dc to 20 mA dc.
●Analog Transmitter Power: Voltage ranges from 22.8 V dc to 25.2 V dc, nominal 24.0 V dc; maximum
current 21 mA dc.
