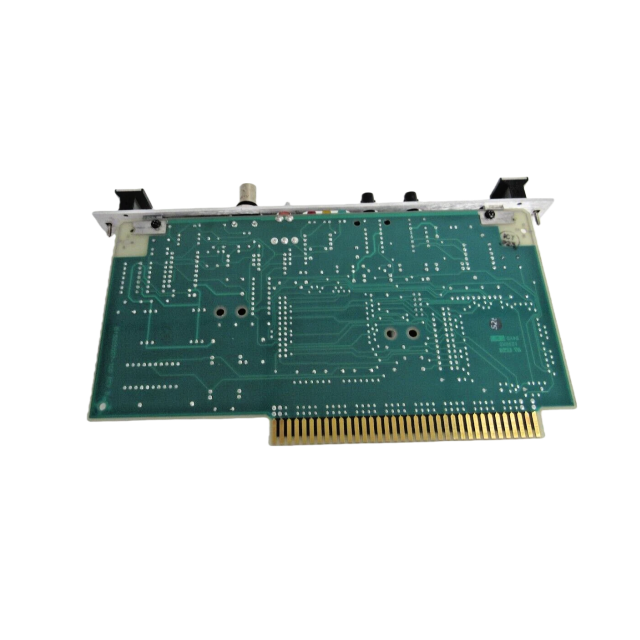

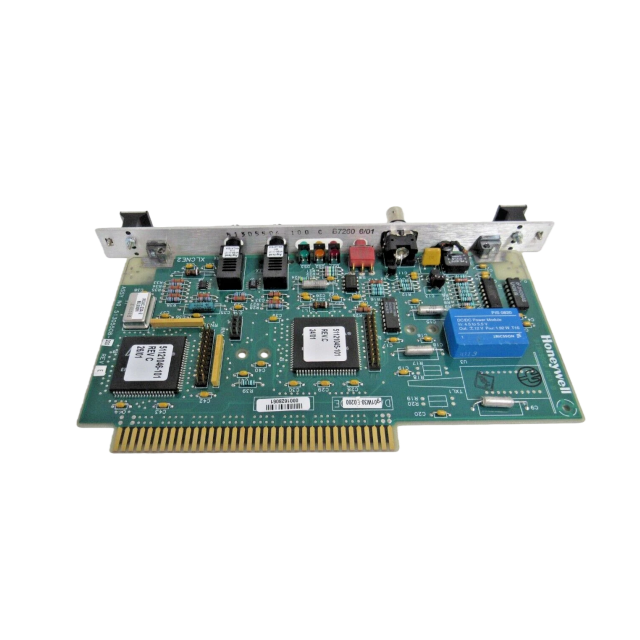

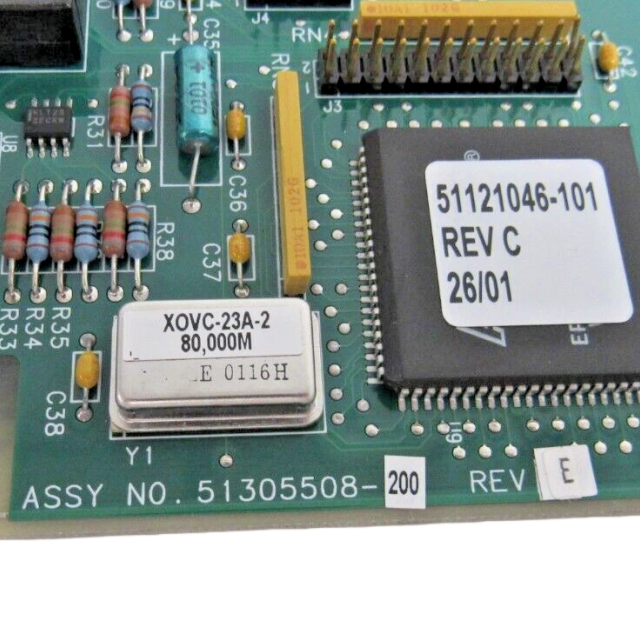

Product Overview
The Honeywell 51305508-200 is a high-reliability power distribution module engineered exclusively for Honeywell’s TDC 3000 distributed control system (DCS), serving as a critical component for regulated power delivery to TDC 3000 nodes (e.g., processors, I/O modules, operator stations). Designed to ensure stable and redundant power supply in industrial automation environments, this module converts and distributes primary power (AC or DC) to secondary voltages required by TDC 3000 components, minimizing the risk of system downtime due to power fluctuations or failures.
As an upgraded variant of legacy power modules (e.g., 51305508-100), it incorporates enhanced protection features and CE compliance, making it suitable for deployment in EU countries and global industrial facilities with strict regulatory requirements. It is primarily utilized in high-availability applications such as oil & gas refineries, power generation plants, and chemical processing facilities, where uninterrupted power to control systems is critical for operational safety and efficiency.
The 51305508-200 supports both standalone and redundant configurations, integrating seamlessly with TDC 3000 power monitoring systems to provide real-time status updates and alarm notifications for power anomalies. Its rugged design ensures reliable operation in harsh industrial environments, with robust shielding against electrical noise and environmental stressors.
Key Features
CE Compliance & Regulatory Adherence
Certified to meet EU EMC Directive (89/336/EEC) and Low Voltage Directive (2014/35/EU), marked with the “CE Mark” for legal deployment in EU member states.
Complies with global safety standards, including UL 60950-1 (Information Technology Equipment) and IEC 61508 (Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems), ensuring safe operation in industrial settings.
Redundant Power Distribution
Supports N+1 redundancy when paired with a second 51305508-200 module, enabling automatic failover if the primary unit experiences a fault. This redundancy eliminates single points of failure, critical for maintaining power to TDC 3000 nodes in mission-critical applications.
Load-sharing capability in redundant setups ensures balanced power distribution between modules, extending component lifespan and preventing overload conditions.
Multi-Voltage Output & Conversion
Provides regulated secondary outputs: 5 V DC (±5%), 12 V DC (±10%), and 24 V DC (±5%)—compatible with all TDC 3000 components, including processors (K2LCN/K4LCN), I/O boards (e.g., 51305072-100), and operator stations.
Accepts wide-range primary input: 100–240 V AC (50/60 Hz) or 120–300 V DC, accommodating global power grid variations and simplifying international deployments.
Advanced Protection Mechanisms
Overvoltage/undervoltage protection: Automatically shuts down outputs if voltage exceeds safe thresholds, preventing damage to TDC 3000 components.
Overcurrent protection: Resettable fuses for each output channel limit current to safe levels, protecting against short circuits in downstream wiring.
Thermal shutdown: Activates if internal temperatures exceed 70°C (158°F), preventing module damage due to overheating in enclosed cabinets.
Real-Time Monitoring & Diagnostics
Integrates with TDC 3000 power monitoring systems via a dedicated communication port, transmitting real-time data on input voltage, output current, and module temperature.
LED status indicators for power input, output health, and fault conditions (e.g., overload, overheat) enable quick visual diagnostics during maintenance.
Rugged Industrial Design
Constructed with a metal chassis and conformal-coated PCB to resist moisture, dust, and chemical contaminants, suitable for Class I, Division 2 / Zone 2 hazardous locations when installed in a certified enclosure.
Vibration resistance (2g maximum at 10–2000 Hz) and shock resistance (30g for 11 ms) to withstand mechanical stress in industrial environments.
Technical Specifications
The Honeywell 51305508-200 is manufactured by Honeywell Inc.’s Industrial Automation and Control Division, classified as an enhanced power distribution module for TDC 3000 DCS. It is designed to convert and distribute regulated power to TDC 3000 nodes, ensuring reliable operation in industrial automation systems.
Electrical Specifications
Input Voltage Range: 100–240 V AC (50/60 Hz) or 120–300 V DC (auto-switching).
Output Voltages:
5 V DC ±5% (max current: 20 A)
12 V DC ±10% (max current: 10 A)
24 V DC ±5% (max current: 5 A)
Efficiency: ≥85% at full load (25°C ambient temperature).
Power Factor: ≥0.9 (at 230 V AC, full load).
Protection Features: Overvoltage (110% of nominal), undervoltage (80% of nominal), overcurrent (120% of rated current), thermal shutdown (≥70°C internal).
Environmental Specifications
Operating Temperature: 0°C to 50°C (32°F to 122°F).
Storage Temperature: -40°C to +70°C (-40°F to +158°F).
Relative Humidity: 5% to 95% (non-condensing), with conformal coating preventing moisture ingress.
Altitude: Up to 2000 meters (6562 feet) without derating.
Vibration Resistance: 2g (10–2000 Hz, IEC 60068-2-6).
Shock Resistance: 30g (11 ms duration, IEC 60068-2-27).
Physical & Mounting Specifications
Dimensions: 250 mm (height) × 150 mm (width) × 100 mm (depth).
Weight: 2.5 kg (5.5 lbs).
Mounting: 19-inch rack-mount (2U height) or panel-mount via optional brackets.
Connectors:
Input: 3-pin terminal block (AC) or 2-pin terminal block (DC).
Outputs: 5-pin terminal blocks (one per voltage level).
Communication: RS-485 port (for integration with TDC 3000 monitoring systems).
Compliance & Certifications
Regulatory: CE Mark (EU EMC and Low Voltage Directives); UL 60950-1; IEC 61508 (SIL 2 capable for safety-related systems).
Hazardous Locations: Compatible with Class I, Division 2 (Groups A–D) and Zone 2 (Group IIC) when installed in an IP54-rated enclosure.
Redundancy & Compatibility
Redundancy Support: N+1 configuration with automatic failover and load sharing.
Compatible TDC 3000 Components: K2LCN/K4LCN processors, EPLCG gateways, Universal Stations, I/O modules (51305072 series, 51305348 series), and power monitoring units.
Monitoring & Diagnostics
Communication Protocol: Modbus RTU over RS-485 (for integration with TDC 3000 power management software).
Status Indicators: LEDs for AC/DC input, 5V/12V/24V outputs, and fault conditions (overload, overheat, redundancy loss).
Associated Components
Required accessories: Input power cables (16 AWG minimum), output wiring harnesses, rack-mount rails, and RS-485 communication cable.
Recommended spares: 51305508-200 (redundancy module), replaceable fuses (5 A, 10 A, 20 A), and cooling fans (for high-temperature environments).
