Product Overview

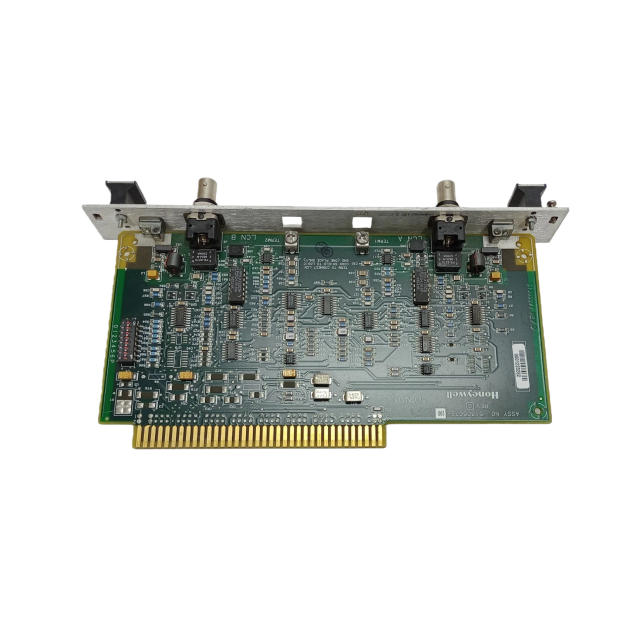

The Honeywell 51305072-100 is a high-performance input/output (I/O) card engineered for
Honeywell’s iconic TDC 3000 distributed control system (DCS), serving as a critical interface between
field devices and the control network. Designed for industrial automation environments, it enables
reliable data acquisition from sensors and precise control signal transmission to actuators, while
integrating seamlessly with existing TDC 3000 infrastructure. Its modular architecture and robust
construction make it a staple in mission-critical applications requiring stability, compatibility, and
harsh-environment resilience .
Key Features
System Integration & Compatibility
TDC 3000 Ecosystem Alignment: Exclusively developed for Honeywell TDC 3000 automation systems,
with seamless connectivity to the Local Control Network (LCN) via LCN "A" cables. It supports dual-
node chassis configurations, enabling redundant operation for high-availability setups .
Broad Module Interoperability: Compatible with a wide range of Honeywell control modules,
including CC-TDOB01, CC-PAOH01, CC-PCF901, CC-PDIL01, and CC-TAIX01, facilitating flexible system
expansion .
I/O Performance & Connectivity
Multi-Channel Signal Handling: Equipped with multiple input/output channels to support diverse
industrial signals (e.g., temperature, pressure, flow) from sensors and actuators .
Dual Communication Interfaces: Integrates RS-232 and RS-485 ports for seamless data exchange with
field devices, adhering to industry-standard protocols for interoperability .
Safety & Control Capabilities
Functional Safety Compliance: Features a Safe Torque Off (STO) function certified to SIL 3, ensuring
safe shutdown in high-risk industrial environments .
Advanced Control Algorithms: Embeds PID control and fuzzy logic capabilities, enabling precise
regulation of process variables for optimal operational efficiency .
Industrial-Grade Durability
Environmental Resilience: Operates within a temperature range of -20 °C to +60 °C (storage: -40 °C to
+85 °C) and features coated circuit boards to resist moisture, dust, and chemical contaminants. An
optional IP66-rated variant is available for extreme outdoor or dusty conditions .
Robust Construction: Built with premium materials and a compact form factor (120 mm x 100 mm x
20 mm, 250 g), designed for vibration resistance and long-term reliability in harsh industrial settings .
Installation & Usability
Plug-and-Play Deployment: Supports quick commissioning via application macros and panel
assistants, reducing setup time and operational downtime .
Modular Design: Facilitates easy upgrades and customization, allowing system adaptation to evolving
operational needs without full overhauls .
Technical Specifications
The Honeywell 51305072-100 is manufactured by Honeywell Inc., with its product type specified as a
CE-compliant LCN I/O board (CLCN A/B) for industrial control systems. It is exclusively compatible
with Honeywell’s TDC 3000X distributed control system, specifically designed for use in Five/Ten-
Slot Modules. Power for the board is derived from the paired Five/Ten-Slot Module’s power supply,
which typically operates on 24 V DC or 28 V DC consistent with TDC 3000X system power
requirements. The board’s operating temperature range aligns with TDC 3000X I/O module ambient
ratings, spanning from -30 °C to +65 °C (-22 °F to +149 °F). It features certifications including UL
listing for Class I, Division 2 (Groups A, B, C, D) and Class I, Zone 2 (Group IIC) hazardous locations, as
well as ATEX approval for Zone 2 (Group IIC) environments—ensuring safe operation in potentially
explosive industrial settings. The board’s design adheres to standards such as ANSI/ISA-12.12.01-
2015 and EN 60079-0/11/15, which govern intrinsic safety and electromagnetic compatibility for
industrial control equipment. Additionally, the board supports connection to LCN coaxial cables
(labeled A and B), with dedicated connectors to ensure proper routing of A/B cables to their
respective ports, preventing signal misalignment
