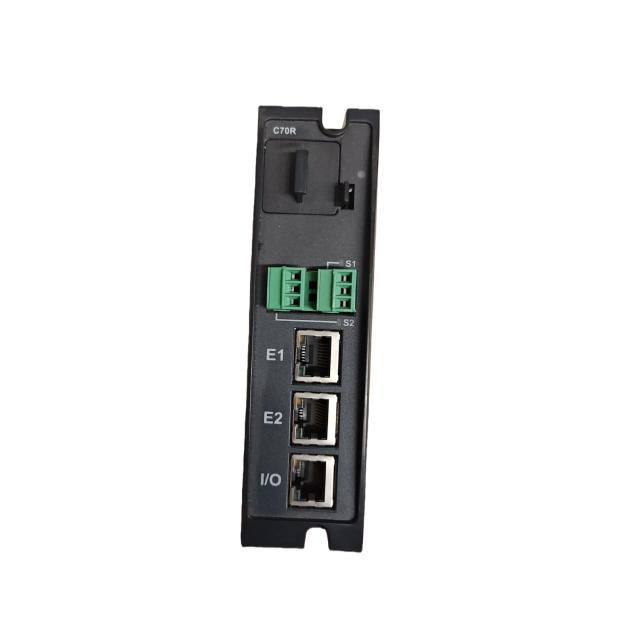

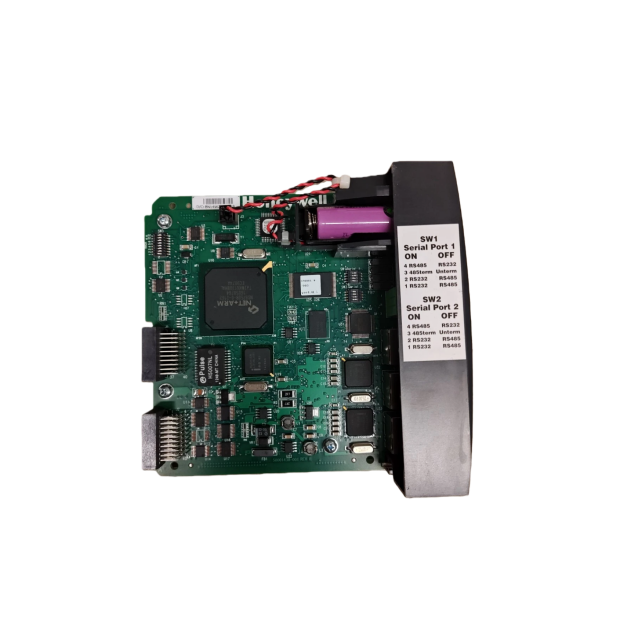

Honeywell 900C72R-0100-44 CPU module

Honeywell ControlEdge HC900 Controller Overview

The Honeywell ControlEdge HC900 Controller is an advanced loop and logic controller featuring a

modular design tailored to meet the control and data management requirements of diverse process

equipment. When paired with the optional 900 Control Station operator interface—seamlessly

integrated with the controller’s database—configuration and setup time are significantly minimized.

This powerful combination, combined with Honeywell’s field-proven control technology, delivers an

ideal solution for process control applications. Equipped with open Ethernet connectivity via Modbus

TCP Protocol, the controller enables flexible network access using various HMI/SCADA software

platforms. Its program execution environment is safeguarded by an independent watchdog timer,

ensuring reliable operation.

The controller is supported by intuitive Windows-based Designer software, operable over Ethernet or

an isolated RS485 port, which streamlines configuration tasks. Available in English, Chinese, Russian,

and German, the software offers advanced monitoring capabilities for debugging, supports run-mode

process configuration changes without disrupting process control, uploads complete annotated

graphic controller configurations, and provides a suite of reports to enhance documentation. Beyond

superior PID loop control and robust analog processing—outperforming most logic controllers

without compromising logic performance—the HC900 features a dedicated fast scan cycle for

executing a comprehensive range of logic and calculation function blocks. For time-critical events,

logic blocks can also run in the same scan as analog function blocks, allowing full integration into

combined analog and logic control strategies to achieve uncompromising control performance.

Applications

Key Configuration & Monitoring Features of Honeywell ControlEdge HC900

Controller

●Graphic drag-and-drop and soft-wire configuration for intuitive setup.

●Configures both the controller and operator interface, supporting peer-to-peer data exchange, data

storage, recipes, setpoint profiles, schedules, and sequences with online operation, as well as alarms,

events, and e-mail warning setup.

●Enables function block configuration partitioning using worksheets, with support for up to 400

configuration pages.

●Allows download of configuration edits in Run mode without disrupting ongoing process control.

●Comprehensive configuration upload, including graphic configuration, interface assignments, and

annotations for complete documentation.

●Extensive online monitoring tools: watch windows, multiple block access, and signal trace-back for

efficient debugging and process oversight.

●Dedicated online diagnostic windows to analyze controller, I/O, network host, and controller peer

connections.

●Flexible connectivity options: Ethernet, RS232 direct, or RS232 modem connection.

●Displays power flow indication for digital signals and pins for clear status visualization.

●Supports viewing of function block I/O values on a per-pin, per-function block, or per-viewable

window basis for targeted monitoring.

●Facilitates uploading, editing, storing, downloading, and printing of individual recipe files, setpoint

profiles, schedules, and sequences for convenient data management.

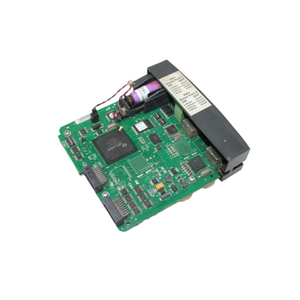

900C53-0244-00 Product Overview

●Document Reference: HC900 Process & Safety Controller User and Installation Manual (Doc. No.: 51-

52-25-154, Revision: 6, Date: 21 April 2017)

●Product Category: Legacy non-SIL Controller Module, part of the Honeywell ControlEdge HC900

Controller series.

●Core Application: Designed for small-and medium-scale unit operations, serving as an integrated

loop and logic controller to meet process control and data acquisition needs.

●Key Compliance: CE (EN61326-1:2013, EN55011:2009/A1), UL 61010-1, ATEX (II 3 G Ex nA IIC T*),

CSA (Class I, Div. 2), FM (Class 1, Div. 2), and RoHS 2 directive (excluding power supplies).
