Honeywell ControlEdge HC900 Controller Overview
The Honeywell ControlEdge HC900 Controller is an advanced loop and logic controller featuring a
modular design tailored to meet the control and data management requirements of diverse process
equipment. When paired with the optional 900 Control Station operator interface—seamlessly
integrated with the controller’s database—configuration and setup time are significantly minimized.
This powerful combination, combined with Honeywell’s field-proven control technology, delivers an
ideal solution for process control applications. Equipped with open Ethernet connectivity via Modbus
TCP Protocol, the controller enables flexible network access using various HMI/SCADA software
platforms. Its program execution environment is safeguarded by an independent watchdog timer,
ensuring reliable operation.
The controller is supported by intuitive Windows-based Designer software, operable over Ethernet or
an isolated RS485 port, which streamlines configuration tasks. Available in English, Chinese, Russian,
and German, the software offers advanced monitoring capabilities for debugging, supports run-mode
process configuration changes without disrupting process control, uploads complete annotated
graphic controller configurations, and provides a suite of reports to enhance documentation. Beyond
superior PID loop control and robust analog processing—outperforming most logic controllers
without compromising logic performance—the HC900 features a dedicated fast scan cycle for
executing a comprehensive range of logic and calculation function blocks. For time-critical events,
logic blocks can also run in the same scan as analog function blocks, allowing full integration into
combined analog and logic control strategies to achieve uncompromising control performance.
Applications
Mining & Metals Chemicals, Pharmaceuticals Rail/ Infrastructure HVAC/ DataCenters Pulp & Paper Cement & Glass Power | Furnaces,Kilns, Boilers Extruders Autoclaves Sterilizers, Dryers Burner Management, Combustion Control Emergency Shutdown Pipeline Monitoring Spill Prevention |
Key Configuration & Monitoring Features of Honeywell ControlEdge HC900
Controller
●Graphic drag-and-drop and soft-wire configuration for intuitive setup.
●Configures both the controller and operator interface, supporting peer-to-peer data exchange, data
storage, recipes, setpoint profiles, schedules, and sequences with online operation, as well as alarms,
events, and e-mail warning setup.
●Enables function block configuration partitioning using worksheets, with support for up to 400
configuration pages.
●Allows download of configuration edits in Run mode without disrupting ongoing process control.
●Comprehensive configuration upload, including graphic configuration, interface assignments, and
annotations for complete documentation.
●Extensive online monitoring tools: watch windows, multiple block access, and signal trace-back for
efficient debugging and process oversight.
●Dedicated online diagnostic windows to analyze controller, I/O, network host, and controller peer
connections.
●Flexible connectivity options: Ethernet, RS232 direct, or RS232 modem connection.
●Displays power flow indication for digital signals and pins for clear status visualization.
●Supports viewing of function block I/O values on a per-pin, per-function block, or per-viewable
window basis for targeted monitoring.
●Facilitates uploading, editing, storing, downloading, and printing of individual recipe files, setpoint
profiles, schedules, and sequences for convenient data management.

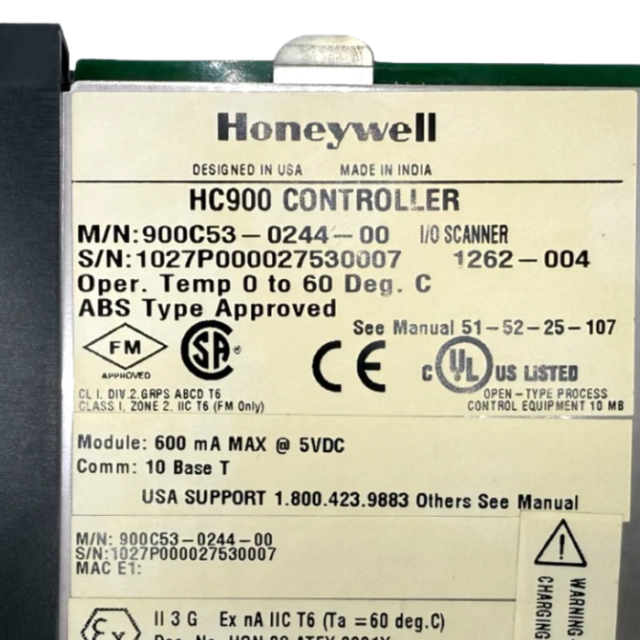

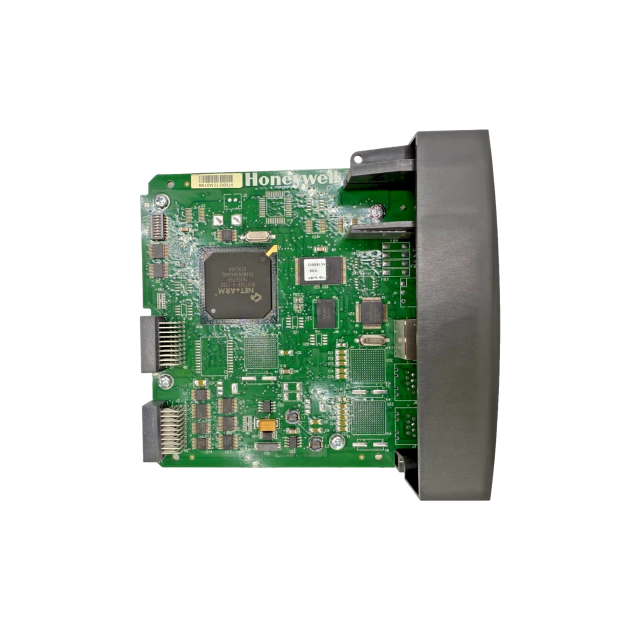

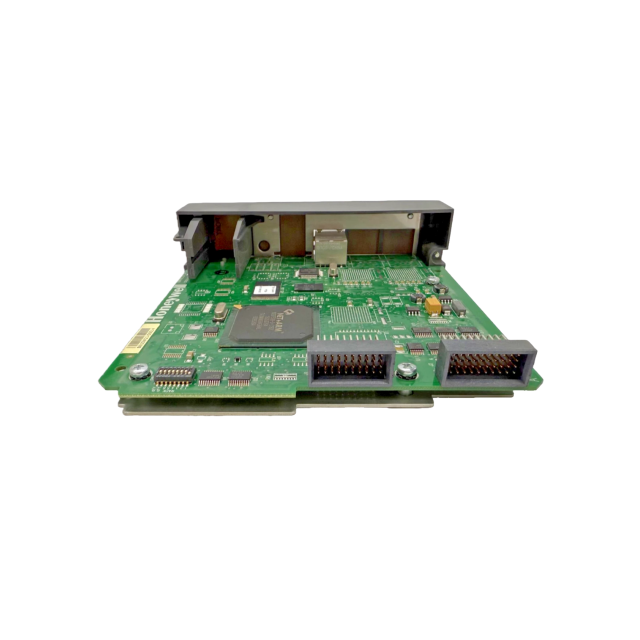

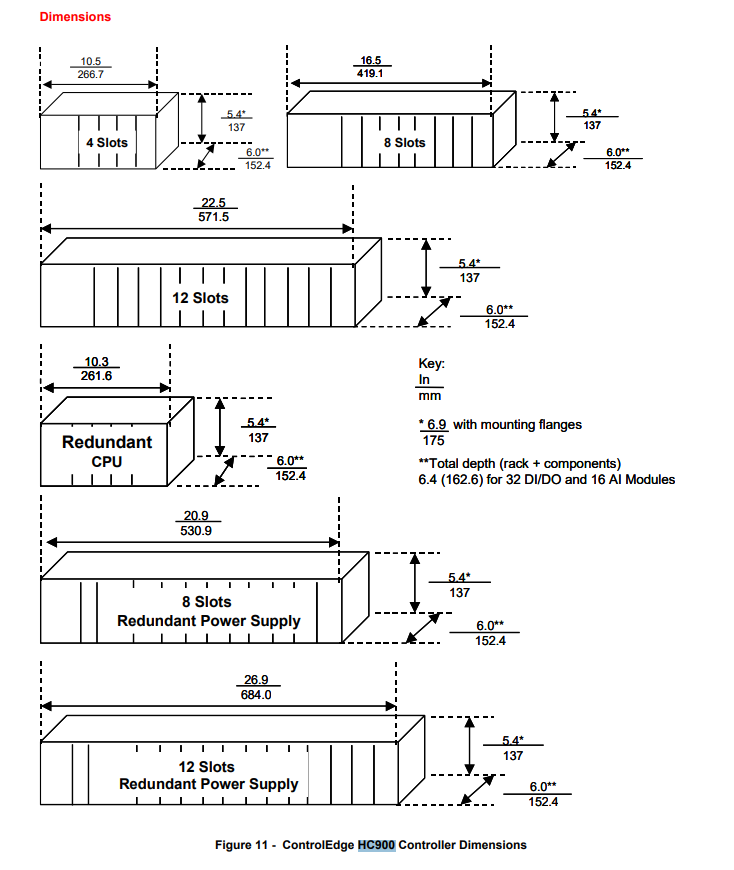

900C53-0244-00 Product Overview
●Document Reference: Technical Information (51-52-03-41, April 2021)
●Core Purpose: Provide modular, customizable I/O solutions for the Honeywell ControlEdge HC900
Controller, supporting diverse process control and data acquisition needs across industrial
applications.
●Key Features: All modules support hot-swapping (insert/removal under power) with auto-
configuration; user-specified failsafe values/states for communication interruption scenarios; galvanic
isolation for enhanced reliability; and conformal coating (except power supplies) for G3-level harsh
environments.
●Compliance: CE (EN61326-1:2013, EN55011:2009/A1), UL 61010-1, ATEX (II 3 G Ex nA IIC T*), CSA
(Class I, Div. 2), FM (Class 1, Div. 2), and RoHS 2 directive compliance (excluding power supplies).
