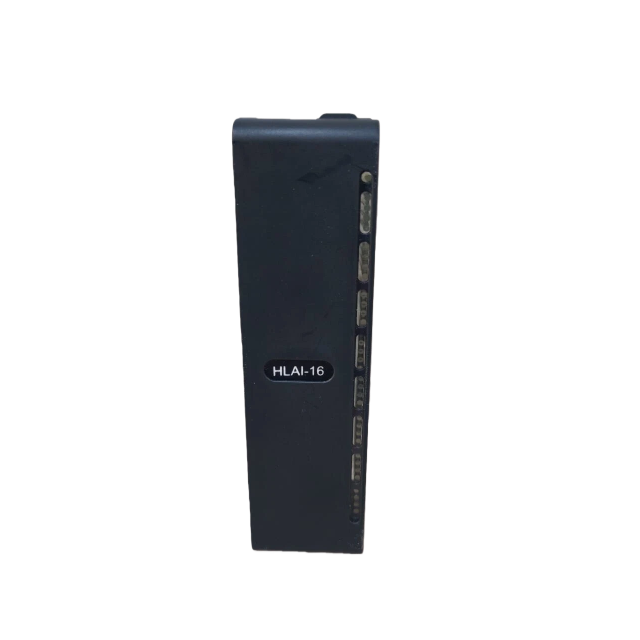

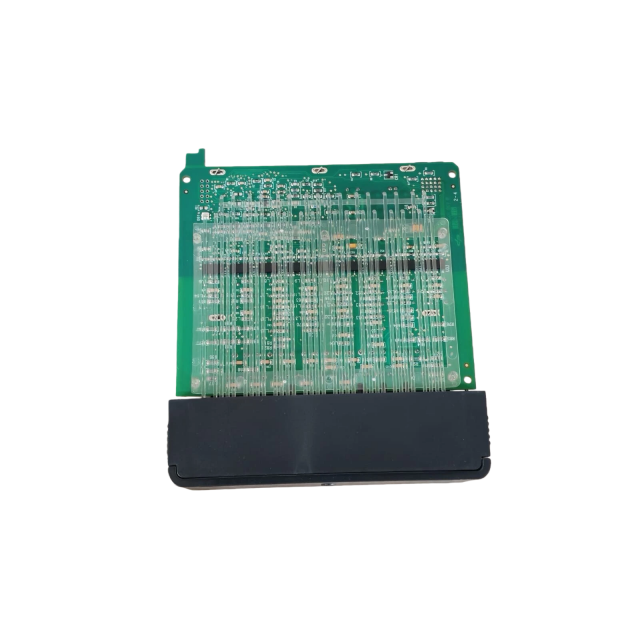

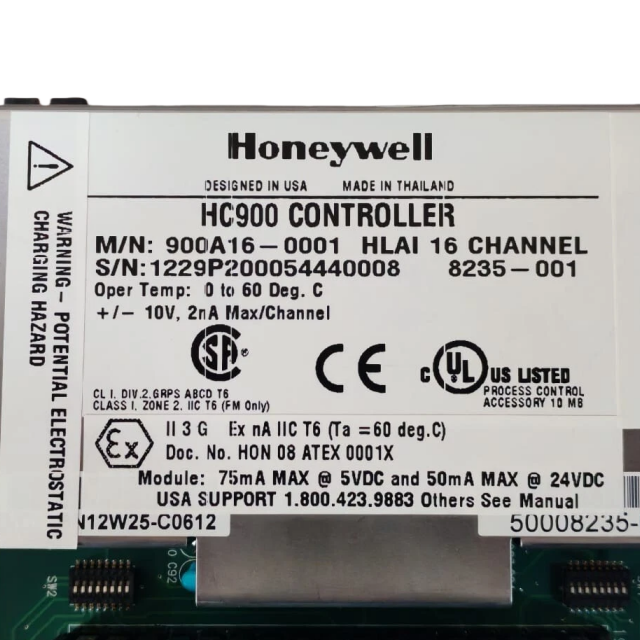

Honeywell 900A16-0001 16-channel analog input module

High Level Analog Input Module (900A16-xxxx)

The High-Level Analog Input module supports up to 16

user-configurable inputs on a per point basis for Voltage

or current. Point-to-point isolation and back-plane

isolation are provided. Modules perform analog to digital

conversion in synchronization with CPU control

execution, eliminating data interchange latency. All

analog input modules are processed in parallel,

eliminating scan time increases as modules are added.

A green blinking status LED on the module indicates

when the module is being scanned. An amber blinking

status LED when input channels are forced and a red

status LED when module diagnostics exist. A userselectable failsafe value is supported on a per

channel basis.

The module supports field calibration. Each of the inputs

has its own integrated 250-ohm shunt resistor which is

activated through DIP switches.

Requires Euro style 36-terminal terminal block.

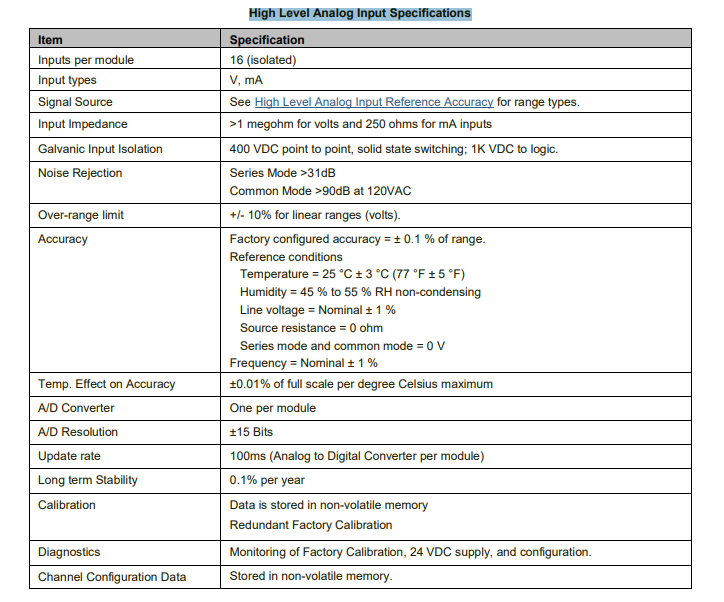

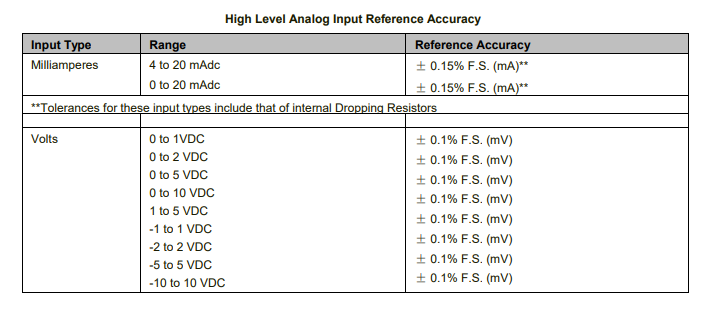

High Level Analog Input Specifications
