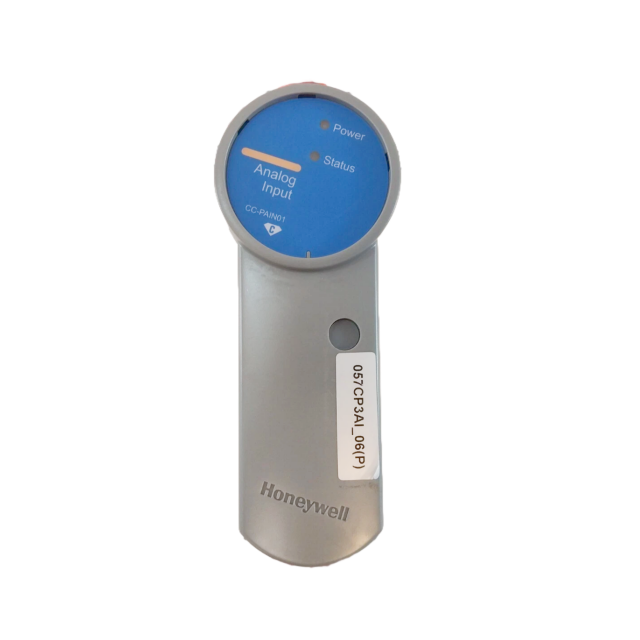

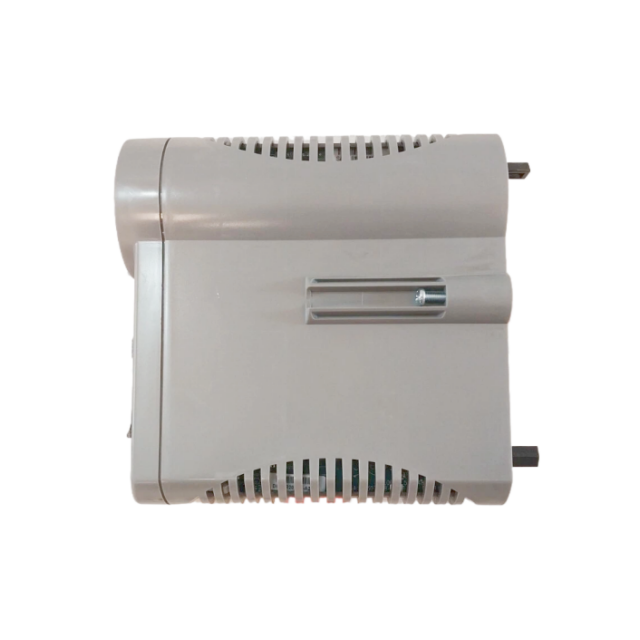

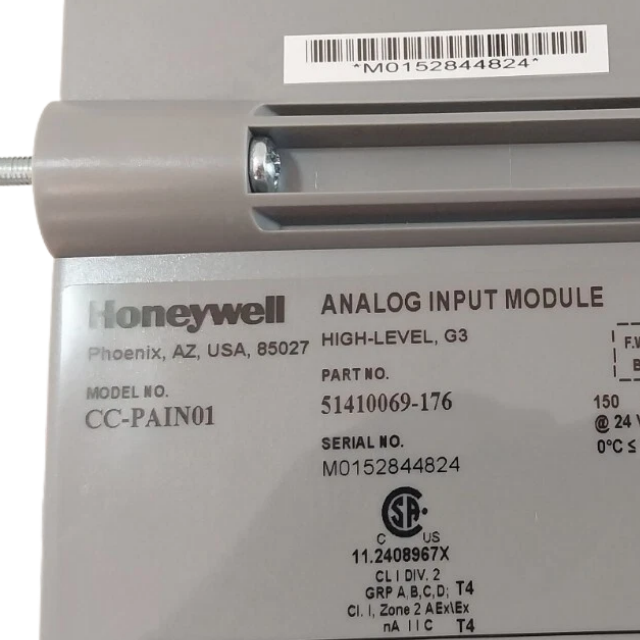

Honeywell CC-PAIN01 51410069-176 Analog Input Module
The Honeywell CC-PAIN01 (51410069-176) Analog Input Module is a core component for Experion PKS DCS. It supports 16-channel analog signals (4-20mA/0-10V) from field sensors (temp, pressure), converts them to digital data for the control system, ensures high accuracy and anti-interference, suiting industrial process monitoring.
The Honeywell CC-PAIN01 (Part Number: 51410069-176) is an 8-channel HART-enabled analog input module under Honeywell’s C Series I/O lineup, specifically engineered to integrate with industrial control systems such as the Experion PKS Distributed Control System (DCS) and C300 Controller. Its core function is to reliably acquire and condition standard industrial analog signals—including 4–20 mA current signals and 0–10 V voltage signals—from field devices like pressure transmitters, temperature sensors, flow meters, and level detectors, then convert these analog signals into digital data for transmission to the central controller. Additionally, it supports native HART communication (compliant with HART 7 protocol), enabling simultaneous collection of primary process variables (e.g., real-time pressure or temperature readings) and secondary digital data from HART-enabled devices, such as device diagnostics (sensor drift, calibration status) and configuration parameters—all over a single pair of wires. It features 2500 VDC galvanic isolation between channels and from channels to the system backplane to suppress electromagnetic interference (EMI) and prevent ground-loop issues in harsh industrial environments, along with 16-bit resolution and ±0.1% full-scale (FS) accuracy for precise signal acquisition. The module also includes comprehensive channel-level diagnostics (e.g., detecting open circuits, short circuits, or over-range signals) and module-level health monitoring (e.g., power supply integrity), which transmit fault alerts to the Experion PKS system for proactive maintenance—ensuring reliable data capture for critical process control in industries like oil & gas, chemical manufacturing, and power generation.
Notable Features
□Extensive self diagnostics □Supplies non-incendive field power
□Optional redundancy □Fast loop scan
Guarantee and Returns
1.All products we sell are in 100% new original packaging. It is in good condition and will be inspected
before shipment. We will do our best to avoid any quality issues.
2. We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects
with the products, please contact us firstly, we will exchange it or offer other solutions for
you to make a choice.
3. The shipping and handling charge is not refundable and customer should be responsible for all the
charges of unreasonable returning and reshipping. All return items must be in good condition.
They must under resalable condition. Man-made defects are not guaranteed, such as broken, scratched and
