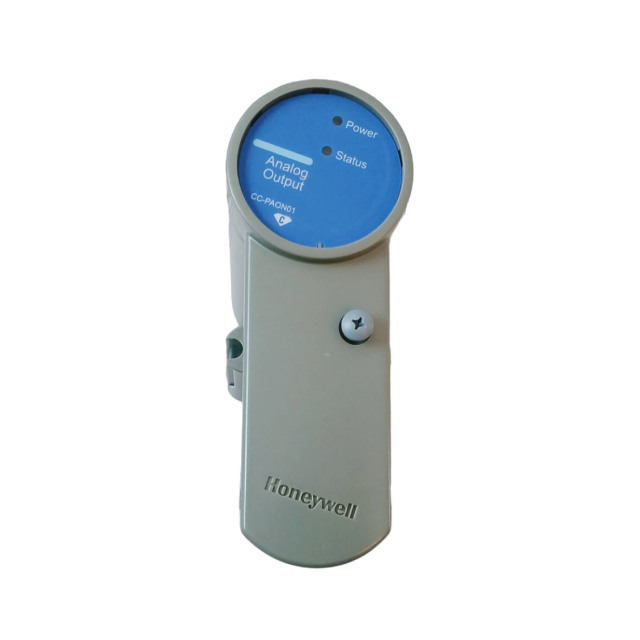

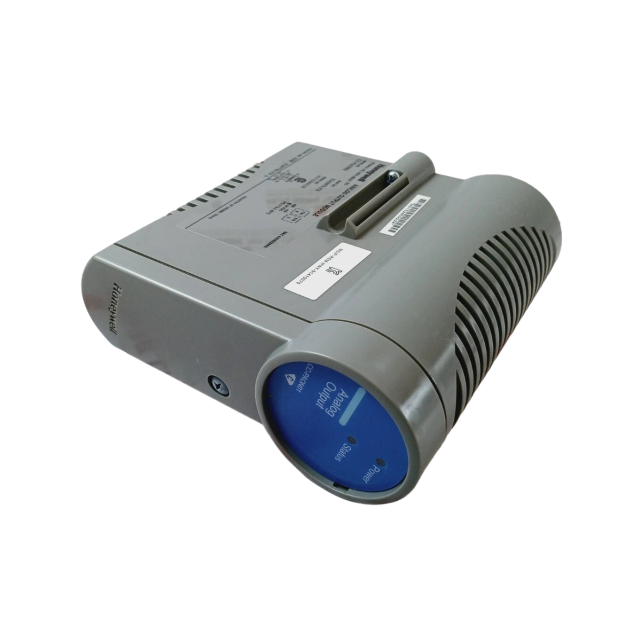

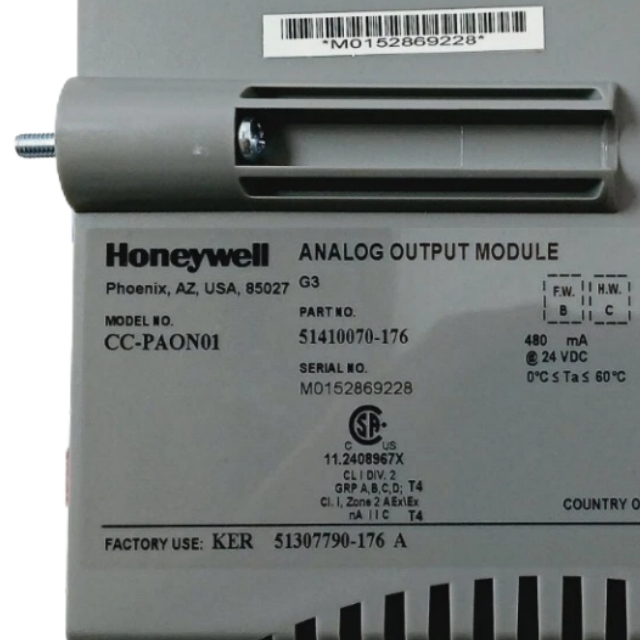

Honeywell CC-PAON01 51410070-176 Analog Output (AO) Module

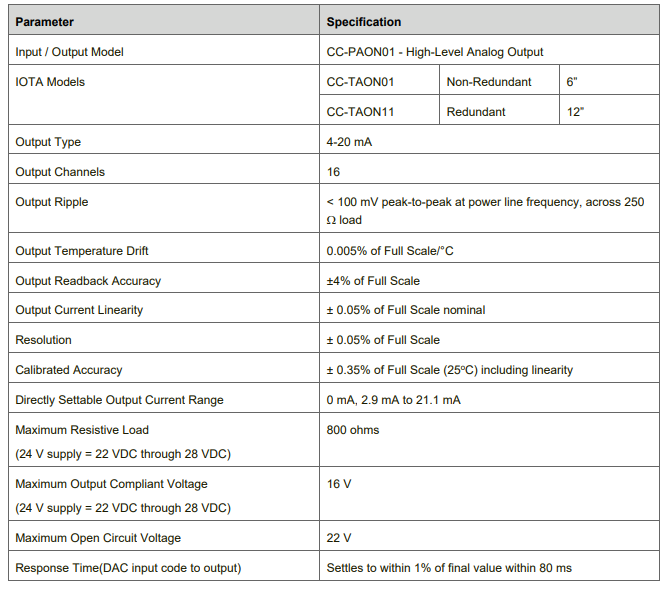

The Honeywell CC-PAON01 (51410070-176) is a 16-channel Analog Output (AO) Module for Experion PKS DCS. It provides 4-20mA signals to control valves/pumps, offering ±0.5% accuracy, configurable fail-safe states, and open-circuit detection. With 24VDC power, -40°C to 85°C operation, and DIN rail mounting, it ensures reliable process control in industrial environments.
The Honeywell CC-PAON01 (Part Number: 51410070-176) is an 8-channel HART-enabled analog output module under Honeywell’s C Series I/O portfolio, specifically engineered to integrate with industrial control systems like the Experion PKS Distributed Control System (DCS) and C300 Controller. Its core function is to convert digital control commands from the central controller into stable, industry-standard analog signals—typically 4–20 mA current or 0–10 V voltage signals—across 8 independently configurable channels, directly driving critical field actuators such as control valves, variable frequency drives (VFDs), and electropneumatic (EP) positioners to regulate key process parameters (e.g., flow, pressure, level, and motor speed). It natively supports HART communication (compliant with HART 7 protocol), enabling dual-mode transmission over a single wire pair: the primary analog signal for actuator operation, plus digital data for remote configuration of HART-enabled devices (e.g., adjusting valve stroke time or VFD speed limits) and real-time diagnostics (e.g., monitoring actuator wear, cable shorts, or output overloads). To ensure reliability in harsh industrial environments, it features 2500 VDC galvanic isolation (between channels and from channels to the system backplane) to suppress electromagnetic interference (EMI) and prevent ground-loop issues, along with 16-bit resolution and ±0.1% full-scale (FS) accuracy for tight control precision. The module also includes comprehensive diagnostics—channel-level detection of open circuits/short circuits and module-level monitoring of power supply integrity—which send alerts to the Experion PKS system for proactive maintenance. Seamlessly integrating with Honeywell’s control ecosystem via the C Series backplane (for high-speed data transfer) and configurable through Control Builder software, it is ideal for critical process control in oil & gas, chemical manufacturing, and power generation industries.
Notable Features
□Extensive self diagnostics □Output read-back and alarm on discrepancy
□Optional redundancy □Non-incendive output
□Safe-state (FAILOPT) behaviors configurable on a per channel basis
FAILOPT
Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure
each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to
zero, the safe state, if the IOM device electronics fails.
