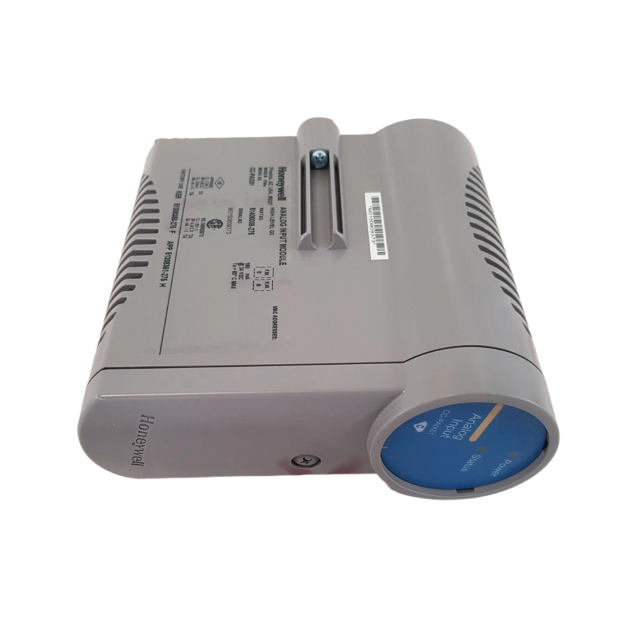

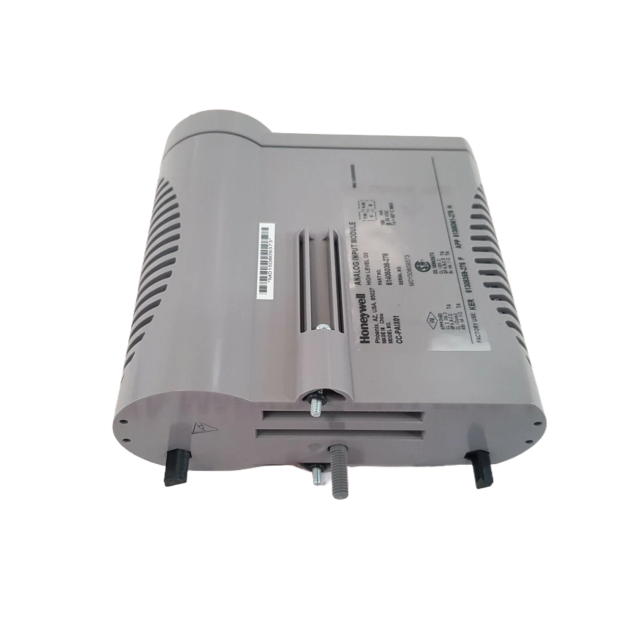

Honeywell CC-PAIX01 51405038-275 Analog Input Module
The Honeywell CC-PAIX01 (51405038-275) Analog Input Module is for Experion PKS DCS. It processes 16-channel signals (4-20mA/0-10V) from temp/pressure sensors, converts to digital data, with high accuracy and anti-interference for industrial process monitoring.
The Honeywell CC-PAIX01 (Part Number: 51405038-275) is an 8-channel HART-enabled analog input module within Honeywell’s C Series I/O portfolio, specifically designed to integrate with industrial control systems like the Experion PKS Distributed Control System (DCS) and C300 Controller. Its core function is to reliably acquire, condition, and convert standard industrial analog signals—such as 4–20 mA current signals (from pressure transmitters, flow meters, or level sensors) and 0–10 V voltage signals (from temperature transducers or analytical devices)—into digital data for transmission to the central controller, enabling real-time monitoring and control of critical process parameters. It natively supports HART communication (compliant with HART 7 protocol), allowing simultaneous transmission of primary analog process data and secondary digital information (e.g., device diagnostics like sensor drift or calibration status, and configuration parameters) over a single wire pair, eliminating the need for separate wiring for digital monitoring. To ensure signal integrity and reliability in harsh industrial environments, it incorporates 2500 VDC galvanic isolation between channels and from channels to the system backplane (suppressing electromagnetic interference/EMI and preventing ground-loop issues), while delivering 16-bit resolution and ±0.1% full-scale (FS) accuracy for precise signal acquisition. The module also includes comprehensive diagnostics: channel-level detection of open circuits, short circuits, and over/under-range signals, plus module-level monitoring of power supply integrity and firmware health—all of which trigger alerts in the Experion PKS system for proactive maintenance. It seamlessly integrates with Honeywell’s control ecosystem (via the C Series backplane for high-speed data transfer) and supports configuration via Control Builder software, making it ideal for critical process control applications in oil & gas, chemical manufacturing, and power generation.
Notable Features
□Extensive self diagnostics □Non-Incendive Power
□Optional redundancy □Fast loop scan
□Supplies non-incendive field power
