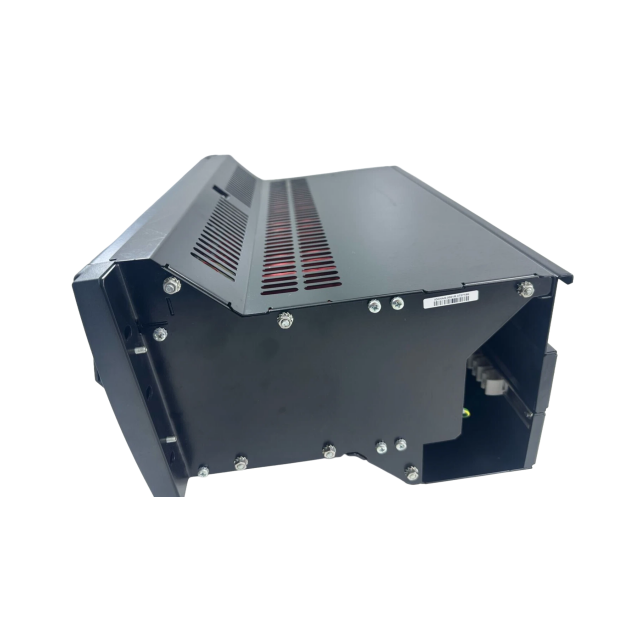

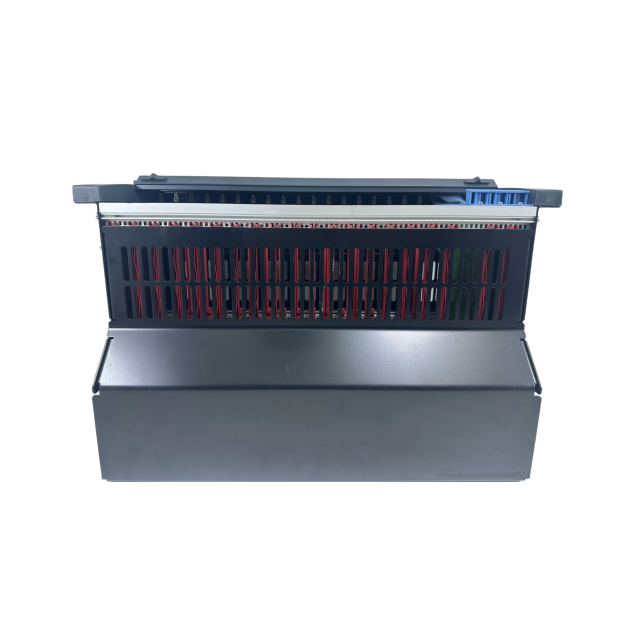

Honeywell FC-IOCHAS-0001R Chassis for redundant I/O module
Honeywell FC-IOCHAS-0001R is a dedicated chassis for redundant I/O modules in Experion PKS DCS. It features dual power inputs, secure mounting slots, -40°C to +70°C operation, meets UL/CE standards, ensuring stable, reliable performance for industrial control.
★Function:The FC-IOCHAS-0001R is an industrial-grade I/O chassis (input/output chassis) designed for use in distributed control systems (DCS) or programmable automation controller (PAC) ecosystems, primarily serving as a centralized physical and functional hub for managing multiple I/O modules. Its core function is to provide a standardized, rugged platform that enables three key capabilities: first, it offers secure physical mounting slots for various I/O modules (e.g., digital input/output, analog input/output, or specialty signal modules), ensuring organized integration of field device connections; second, it distributes stable, regulated power (often with optional redundant power support) to all installed modules, preventing voltage fluctuations from disrupting field signal acquisition or control; third, it integrates a high-speed communication bus (compatible with industrial protocols like EtherNet/IP or Modbus TCP) to facilitate real-time data transmission between the installed I/O modules and the central controller, bridging the gap between field-level devices (e.g., sensors, actuators) and the control layer.
Engineered for harsh industrial environments (e.g., oil & gas, chemical processing, power generation), the FC-IOCHAS-0001R includes features like electromagnetic interference (EMI) shielding, wide operating temperature tolerance (-40°C to 70°C), and built-in diagnostics (e.g., module presence detection, power fault alerts) that trigger real-time notifications to the control system for proactive maintenance. It also supports hot-swappable module installation (where compatible), allowing replacement of faulty I/O modules without shutting down the entire chassis—minimizing unplanned downtime and ensuring continuous process operation. Overall, it acts as a critical infrastructure component that enhances the reliability, scalability, and efficiency of industrial automation systems.
Condition: Brand new and original packing
Warranty: All new or repaired parts have a 12-month warranty
Payment: 100% T/T for stock items before shipping
Certificate: Request quote
Delivery: In stock,order now for immediate delivery(DHL, UPS, Fedex,TNT)
Key Features
ψRedundant I/O Module Accommodation
Specifically engineered to house and support redundant I/O modules (e.g., primary/backup configurations) for Honeywell industrial control systems, enabling seamless failover between modules to maintain uninterrupted I/O signal transmission and system availability—critical for high-reliability applications like oil & gas, power generation, and chemical processing.
ψBroad Compatibility
Designed to be fully compatible with Honeywell’s Experion PKS series redundant I/O modules (e.g., CC-TDOB11, CC-TAIX11) and other compatible I/O hardware, ensuring seamless integration into existing Experion PKS distributed control system (DCS) architectures without additional adapters.
ψHigh-Performance Redundant Backplane
eatures an integrated high-bandwidth, low-latency redundant backplane that facilitates fast, stable communication between installed redundant I/O modules and the system controller. This backplane minimizes signal delay during redundant switchovers, ensuring real-time data consistency across primary and backup modules.
ψDual Redundant Power Input Support
Equipped with dual independent power input ports to accommodate redundant power supplies (e.g., 24VDC or 120/240VAC, per system requirements). This design eliminates single-point power failure risks, as the chassis automatically draws power from the alternate source if one supply fails.
ψRobust Mechanical & Environmental Design
Constructed with heavy-duty metal (e.g., galvanized steel or aluminum alloy) to withstand industrial-grade shock (up to 10G peak) and vibration (up to 5G rms), complying with IEC 60068-2-27 (shock) and IEC 60068-2-6 (vibration) standards. It operates reliably in a wide temperature range of -40°C to 60°C and offers IP20 protection (per IEC 60529) to shield internal components from dust and accidental contact.
ψIntegrated Heat Dissipation
Incorporates passive heat dissipation structures (e.g., extruded aluminum heat sinks or optimized airflow channels) and optional active cooling mounting points (for high-temperature environments) to prevent overheating of installed I/O modules, ensuring long-term operational stability.
ψIntuitive Status Monitoring
Features front-panel LED indicators for real-time status visualization, including power supply health (primary/backup), redundant module activity (active/standby), and chassis fault alerts. This allows maintenance personnel to quickly identify issues and reduce troubleshooting time.
ψCompliance with Industrial Standards
Meets global industrial safety and electromagnetic compatibility (EMC) standards, including UL 508 (industrial control equipment), CSA C22.2 No. 14-19, and IEC 61000-6-2/4 (EMI immunity/emission), ensuring safe and interference-free operation in harsh industrial environments.
