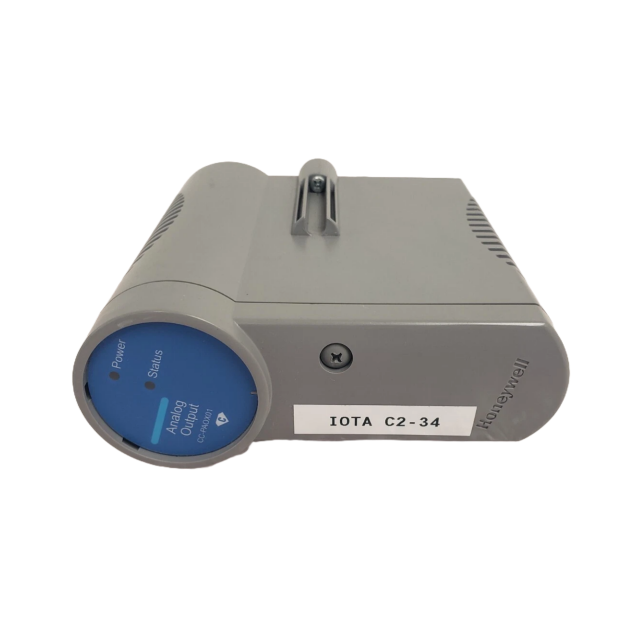

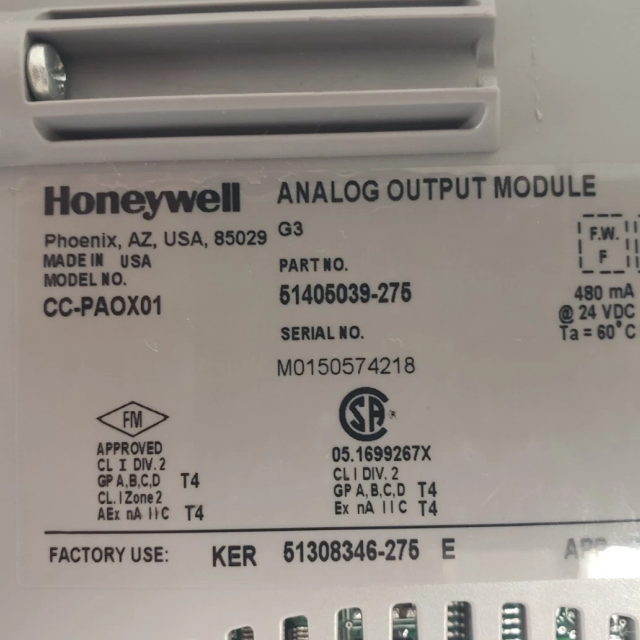

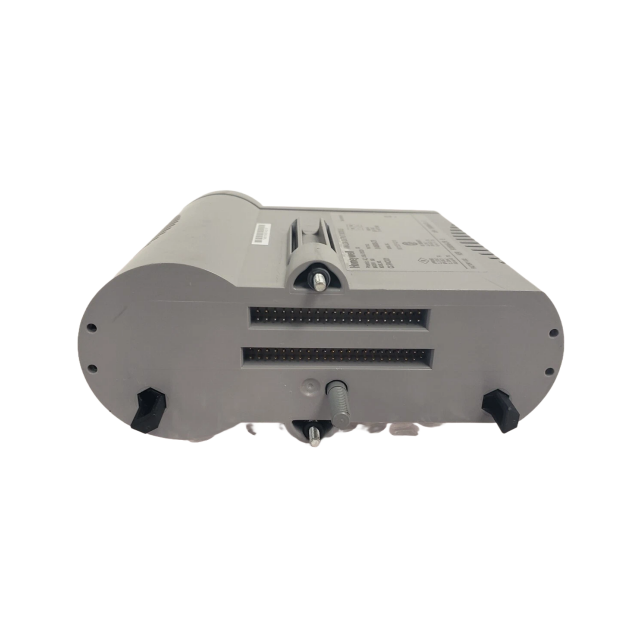

Honeywell CC-PAOX01 51405039-275 Analog output Module
The Honeywell CC-PAOX01 (51405039-275) Analog Output Module is a core component for Experion PKS DCS. It offers 16 channels of 4-20mA signals to drive field actuators (e.g., control valves), features ±0.1% full-scale accuracy, strong anti-interference, and works reliably in industrial settings for precise process control.
Product description: The CC-PAOX01 51405039-275 is a 16-channel analog output module by Honeywell,
designed for integration with the Experion PKS C300 controller in distributed control systems (DCS). It converts
digital signals from controllers into stable 4–20 mA analog outputs (configurable within 2.9–21.1 mA) to drive
field devices like control valves and actuators, featuring 12-bit resolution, ±0.35% full-scale accuracy, and 2500
VDC isolation between channels to minimize interference in industrial environments. Equipped with built-in
diagnostics for channel-level fault detection, it operates in -40°C to 85°C temperatures, supports 24 VDC power,
and is widely used in petrochemical, power, and manufacturing sectors for precise process control, compatible
with Honeywell’s C Series I/O architecture and Experion PKS software.
Product origin: United States
Quantity: 100% New Original
»Function«
The Honeywell CC-PAOX01 (Part Number: 51405039-275) is an 8-channel HART-enabled analog output module in Honeywell’s C Series I/O portfolio, specifically engineered to integrate with industrial control systems like the Experion PKS Distributed Control System (DCS) and C300 Controller for precise process actuation. Its core function is to convert digital control commands from the central controller into stable, industry-standard analog signals—typically 4–20 mA current or 0–10 V voltage signals—across 8 independently configurable channels, directly driving critical field actuators such as control valves, variable frequency drives (VFDs), and electropneumatic (EP) positioners to regulate key process parameters (e.g., flow, pressure, level, and motor speed). It natively supports HART 7 protocol, enabling dual-mode communication over a single wire pair: the primary analog signal for real-time actuator operation, plus digital data for remote configuration of HART-enabled devices (e.g., adjusting valve stroke time or VFD speed limits) and real-time diagnostics (e.g., monitoring actuator wear, cable shorts, or output overloads). To ensure reliability in harsh industrial environments (e.g., oil & gas, chemical manufacturing), it features 2500 VDC galvanic isolation between channels and from channels to the system backplane (suppressing electromagnetic interference/EMI and preventing ground loops), 16-bit resolution, and ±0.1% full-scale (FS) accuracy for tight control precision. The module also includes comprehensive diagnostics—channel-level detection of open circuits/short circuits and module-level monitoring of power supply integrity—which transmit alerts to the Experion PKS system for proactive maintenance. Seamlessly integrating with Honeywell’s control ecosystem via the C Series backplane (for high-speed data transfer) and configurable through Control Builder software, it ensures consistent, accurate operation of critical control loops across industrial sectors.
»Notable Features«
□Extensive self-diagnostics □Output read-back and alarm on discrepancy
□Optional redundancy □Non-incendive output
□Safe-state (FAILOPT) behaviors configurable on a per channel basis
»FAILOPT«
Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each
channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state,
if the IOM device electronics fails.
