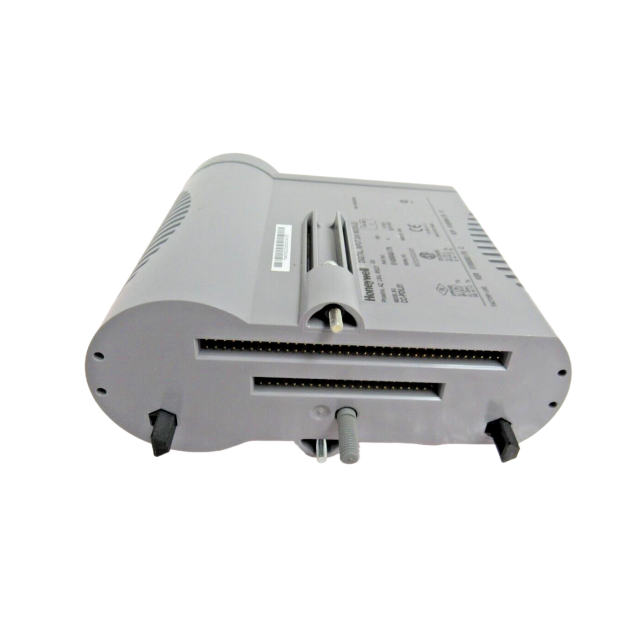

Honeywell CC-PDIL01 51405040-175 Digital Input 24V Module

»Product Info«

Product description: The Honeywell CC-PDIL01 (51405040-175) is an 8-channel, high-density process digital

input module designed for the Experion PKS C300 DCS, engineered to monitor dry or wet contact signals

from field devices such as switches, relays, and safety interlocks. It provides channel-to-channel and

channel-to-backplane isolation (typically 2500 VDC) to enhance system robustness in noisy industrial

environments, supports configurable input voltage ranges (e.g., 24 VDC wetting), offers fast response times

for real-time monitoring, and includes built-in diagnostics for open/short circuit detection. Fully integrated

with Honeywell’s C Series I/O architecture and Experion PKS software for centralized configuration and

alarming, it is ideal for mission-critical applications in oil and gas, power generation, chemical processing,

and manufacturing, ensuring reliable and secure status monitoring of field equipment.

Product origin: United States

Quantity: 100% New Original

»Function«

The Honeywell CC-PDIL01 (Part Number: 51405040-175) is a multi-channel digital input module under Honeywell’s C Series I/O portfolio, specifically engineered to integrate with the Experion PKS Distributed Control System (DCS) and C300 Controller for reliable acquisition of digital status signals from industrial field devices. Its core function is to receive, condition, and convert discrete digital input signals—typically from devices like limit switches (for mechanical position detection), photoelectric sensors (for object presence), pressure/temperature switches (for threshold status), or motor status contacts (for "running/stopped" feedback)—into standardized digital data that is transmitted to the central controller. This data enables real-time monitoring of equipment status and supports critical control logic (e.g., triggering interlocks, initiating process sequences, or alerting operators to abnormal conditions).

To ensure robustness in harsh industrial environments (e.g., oil & gas, chemical manufacturing, power generation), the module features galvanic isolation between channels and from the system backplane, which suppresses electromagnetic interference (EMI) and prevents ground-loop issues that could corrupt signal data. It also includes built-in diagnostics, such as detection of open circuits (in sensor wiring) or overvoltage conditions, which send real-time alerts to the Experion PKS system for proactive maintenance—reducing the risk of unplanned downtime.

Seamlessly integrating with Honeywell’s control ecosystem via the C Series backplane for high-speed data transfer, the CC-PDIL01 is configurable through Control Builder software (e.g., setting input voltage thresholds, adjusting debounce times to filter noise) to match specific application needs. It plays a key role in bridging field-level device status with central control, supporting safe, efficient, and data-driven industrial process management.
