In vibration monitoring systems, the signal path between the proximity probe and the signal conditioner is one of the most critical links. Even the best sensor and processing card cannot compensate for a poorly routed or improperly terminated cable. When you work with a VM600 rack and need to connect a TQ402 eddy current probe to an IPC704 multi‑channel signal conditioner, getting the cabling right determines whether your vibration data is reliable or full of noise. This guide focuses on the mechanical and electrical rules that keep the TQ402‑to‑IPC704 link robust in industrial environments.
Understanding the Signal Chain

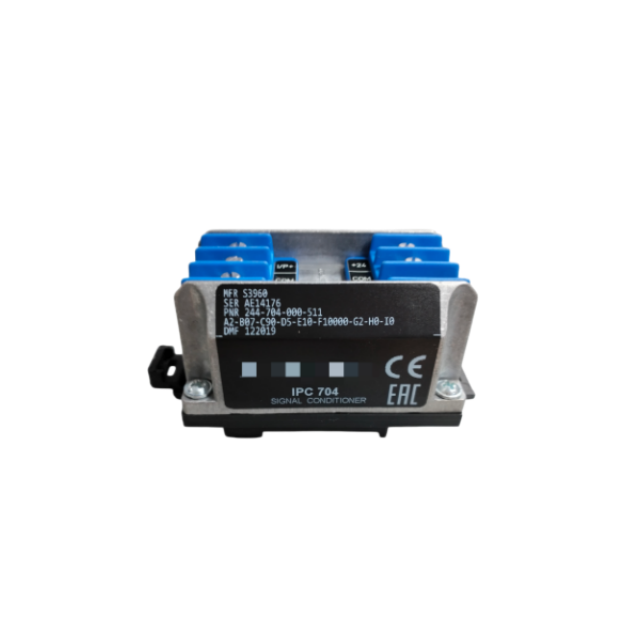

The TQ402 111‑402‑000‑012 is a standard eddy current proximity probe. It outputs a raw, high‑frequency signal that represents the gap voltage and vibration displacement. The IPC704 244‑704‑000‑042 is a four‑channel signal conditioner card installed in a VM600 rack. It receives the probe signal, performs filtering, and translates the raw voltage into engineering units that the protection and monitoring processors (like MPC4 or CPUM) can use. Between the probe and the card, you usually have extension cables and possibly connection boxes. The goal of cable routing is to preserve signal integrity from the probe tip all the way to the IPC704 input terminals.
Physical Cable Routing Rules
1. Minimum bend radius is not optional. TQ402 probe cables and the associated extension cables (like EA402) have a specified minimum bend radius. Exceeding it kinks the internal conductor, changes impedance, and creates reflection points that distort the eddy current signal. Always check the datasheet – typically you should keep the bend radius no tighter than 10 times the cable outer diameter. When you route cable in a tight machine housing or through cable trays, use proper guides and avoid sharp edges.
Separate signal cables from power. Do not run TQ402 signal cables alongside high‑voltage motor power leads, variable frequency drive output cables, or power supply lines. The eddy current probe signal is a low‑level AC signal, and power cables couple electromagnetic interference directly into it. A good rule is to maintain at least 300 mm distance, and if you must cross a power cable, do it at a 90‑degree angle.
Mechanical protection without compromising signal. Armored flexible conduit or braided sleeving can protect cables from oil, swarf, and mechanical damage, but do not ground the conduit at both ends. Ground it at one end only (usually the rack cabinet end). Otherwise, you create a ground loop that can inject 50/60 Hz noise into the IPC704 input.
Keep cable lengths within the calibrated system limits. The TQ402 system (probe + extension cable + driver/direct connection) has a defined electrical length. If you add extra extension cable or use a cable length outside the approved range, the system sensitivity and linear range will change. For 111‑402‑000‑012, the standard cable length suffix (e.g., H05 for 5 m) defines the total system length. When routing, measure the actual path and compare it to the specified cable length before ordering. Avoid excessive slack that can vibrate and chafe, but also do not pull the cable so tight that connectors are under strain.
Connector and Termination Practices
At the probe end, the connection between the TQ402 probe and the extension cable must be secure and clean. Any contamination or loose connection creates an intermittent high‑resistance contact that appears like erratic gap voltage changes in the IPC704. Use the correct mating connector and tighten it according to the manufacturer’s torque recommendation. Do not use pliers on connector barrels – many field failures start with deformed threads.
At the rack end, the cable enters the IPC704 via the front‑panel terminal block or through a connection adapter (e.g., EA402). When you strip the cable jacket, do not nick the inner conductors or the shield. For the shield, follow the IPC704 manual: typically, you connect the shield to the designated shield terminal at the conditioner card end only. Do not ground the shield at the probe end or at an intermediate junction box unless the system design explicitly requires it. A floating shield at one end prevents ground loops but still protects against capacitive noise pickup.
Signal Grounding and Noise Management
The IPC704 has internal filtering, but it cannot remove interference that exceeds its common‑mode rejection limits. Ensure the VM600 rack ground is solid – a dedicated, low‑impedance path to the plant earth grid. Do not daisy‑chain the rack ground with other equipment. If you must install the IPC704 in a cabinet far from the probe, consider using a junction box with a signal isolator or a local TQ402 driver module that converts the signal to a current loop, but this changes the topology and must be designed into the measurement loop.
A practical check: after installation, connect a handheld vibration meter or an oscilloscope to the IPC704 monitor output. With the machine stopped, you should see a stable DC gap voltage without significant ripple. If you see periodic noise at the mains frequency or at VFD switching frequencies, the cable routing or shield connection is compromised. Reroute the cable or improve grounding before commissioning the protection system.
Common Mistakes in the Field
– Using non‑shielded extension cable. The TQ402 signal is unbalanced and needs a shielded twisted‑pair or coaxial extension cable with the correct impedance. A generic shielded cable changes the system electrical length and may cause the IPC704 to miscalculate the gap.
– Tying the probe cable to vibrating structures. If you zip‑tie the cable to a pipe that vibrates heavily, the cable will fatigue, and the shield will break inside the jacket. Use vibration‑isolated clamps or route the cable along static structural members.
– Combining multiple probe cables in a single tight bundle. Eddy current probes are sensitive to cross‑talk if cables run parallel and very close for long distances. For multi‑probe installations, keep individual cable runs separated or use twisted‑pair wiring methods.
When to Replace Rather Than Repair
An IPC704 or TQ402 cable that has been crushed, kinked, or exposed to cutting fluids often shows intermittent spikes or a permanent drift in the gap voltage. If cleaning and re‑terminating the connectors does not restore a clean signal, replace the cable assembly. Running a compromised cable into the IPC704 can mask real machine faults or cause unnecessary trips. We keep a large stock of VM600 accessories, including EA402 extension cables, IPC704 cards, and TQ402 probes with factory‑molded connectors, so you can swap out suspect cables quickly without waiting weeks.
Supplier Support for Cabling and Signal Integrity
At Joyoung International Trading Co., we not only supply the IPC704 244‑704‑000‑042 and TQ402 111‑402‑000‑012, but also help you get the cabling system right. We can verify cable lengths, recommend accessory part numbers (such as EA402 913‑402‑000‑012 or 013), and share field‑proven routing tips from hundreds of rotating machinery installations. If you are setting up a new monitoring point or retrofitting an old machine, contact us at chen@htechplc.com or call +86‑181‑5013‑7565 for a technical discussion – before you run the cables.
FAQ – IPC704 and TQ402 Cable Routing
Q: Can I extend the TQ402 cable beyond the standard length?
A: The TQ402 probe system is calibrated for a specific electrical length. Adding extension cable changes the sensitivity and linear range. If you absolutely need a longer cable, contact us with your application – we can provide a probe system with a longer factory‑calibrated cable length or an approved driver solution that maintains the correct signal characteristics at the IPC704 input.
Q: The machine housing is full of oil mist. Will that affect the cable?
A: The standard TQ402 probe cable jacket resists oil and moisture, but constant exposure to oil mist can degrade the jacket and wick into the connector. Use sealed cable glands at the machine penetration, and after routing, apply a small amount of silicone grease to the connector boot to prevent moisture ingress.
Q: I see a 50 Hz hum on the IPC704 monitor output even with the machine off. What should I check?
A: First, verify the shield is connected at the IPC704 end only. Then check that the rack ground is clean and dedicated. Temporarily disconnect the cable at the probe end – if the hum disappears, the probe cable is acting as an antenna; reroute it away from power cables. If the hum persists, test the IPC704 with a known good probe cable to isolate the issue.
This practical approach to cable routing helps you get the most out of your VM600 vibration monitoring system. Once the physical layer is solid, you can trust the IPC704 and TQ402 to deliver accurate data for machinery protection.
